HZ-500
HZ-500

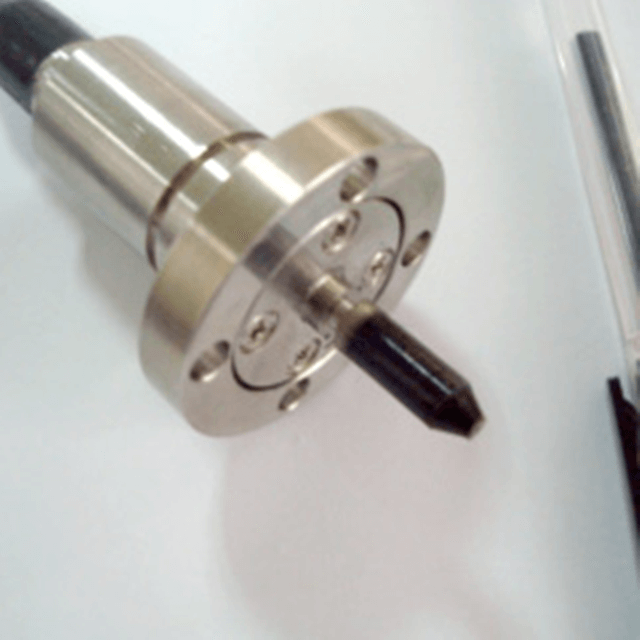

100Khz-500Khz Miniature High Frequency Hydrophone Cylindrical Receiving Transducer
Minisize High Frequency Hydrophone
Feature:
• Mainly used for high frequency sound pressure measurements, range between 100KHz to 500KHz
• High-frequency vertical directivity is hemisphere spatial directivity；
• Horizontal directive tendency is none.
• Use low noise differential amplifier 1nv√Hz）can gain 30dB.
Specification:
Product mode: HZ-500
Frequency Range: 100KHZ-500KHZ
Outer diameter (mm) : φ 6
Sensitive surface diameter – Bottom (mm) : φ 2
Element structure：o
Cable leads head (m): 5
Outer casing material: stainless steel
Acoustic window material: PU

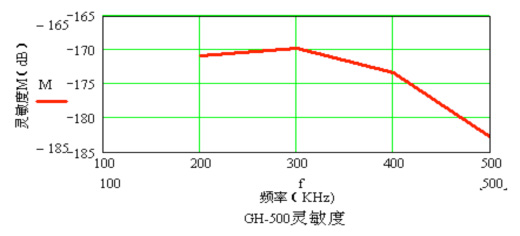

The level of sensitivity

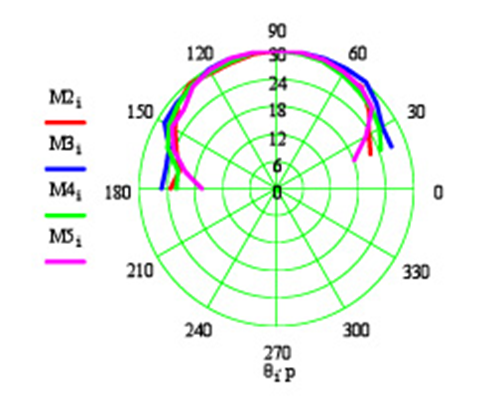

Vertical directivity

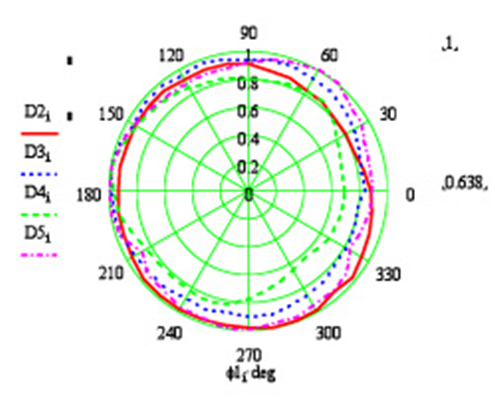

Horizontal directivity
