HS110
HS110

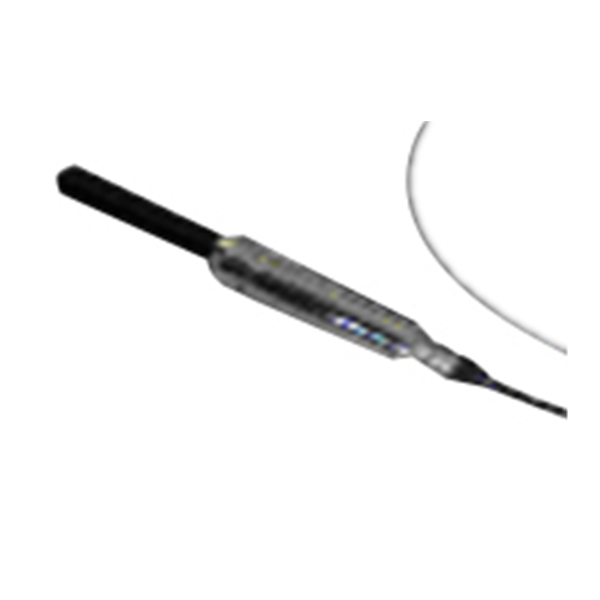

10Hz-100KHz High Sensitivity Hydrophone Cylindrical Receiving Transducer
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ring (FFR) transducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
Operating frequency range：10 Hz∽100 kHz
Diameter/ height (mm) ：φ38 / 240
Specifications
Operating frequency range：10 Hz∽100 kHz
Diameter/ height (mm) ：φ38 / 240
Acoustic pressure sensitivity：-170 dB
(Including preamplifier 20 dB)
Water-tight connector
Power supply：±12V / +12V
Application & Features
Underwater measurement in sea, river, lake, pool and tank
Extremely high sensitivity
Omni-directional on the horizontal
