HSTT-0.4
HSTT-0.4

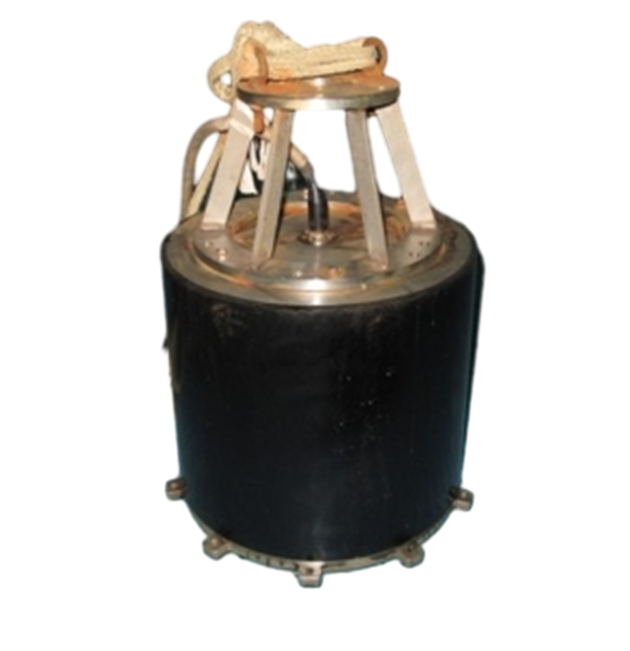

200Hz-10kHz Underwater Low Frequency Transmitting Acoustic Transducer
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
1. Product description：
(1) Working temperature: -2℃~+50℃
(2) Storage temperature: -20℃~+50℃
(3) Watertight method: polyurethane
(4) Maximum working depth: 500m
(5) Maximum working voltage: 1000VRMS
2. Working characteristics：
(1) Operating frequency range: 200Hz~10kHz
(2) Transmit voltage response: 146dB±3dB@3kHz (re 1μPa/V@1m)
(3) Horizontal beam width 2θ-3dB: 360°
(4) Product weight: about 50 kg
3. Transmitting voltage response and sound source data of the transducer:
