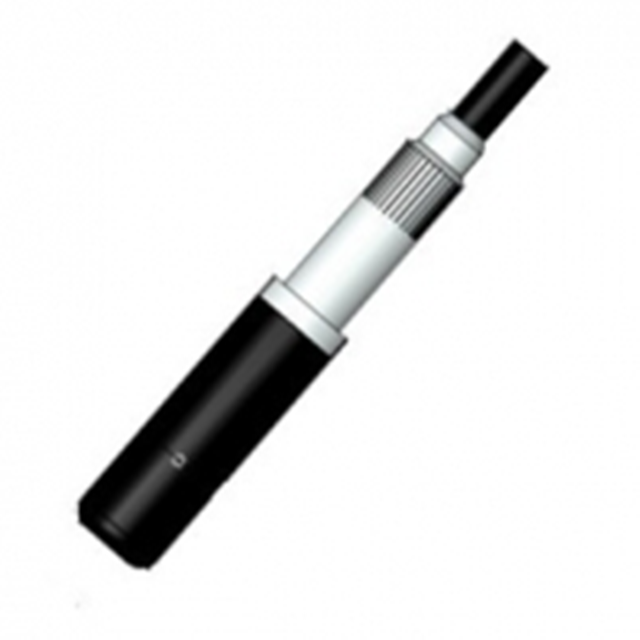

The HSRHC-14 hydrophone and the HSRHS-20 hydrophone are similar in frequency range and sensitivity, but the HSRHC-14 hydrophone is cylindrical and the HSRHS-20 hydrophone is spherical. It has the following characteristics: (1) Good directivity. It is non-directional in the horizontal plane and directional in the vertical plane. (2) It has a wide frequency range and can be used as a standard hydrophone within 100kHz. (3) It has a flat sensitivity response and is suitable for testing broadband noise. (4) According to user needs, it can be built-in with a preamplifier for signal amplification and long-distance transmission.

1. Product description

(1) Good directionality. The horizontal hydrophone has no directivity, and the vertical plane has directivity.

(2) The frequency range is wide, and it can be used as a standard hydrophone within 100kHz.

(3) The sensitivity response is flat, suitable for broadband noise testing.

(4) According to user needs, it can be built-in preamplifier for signal amplification and long-distance transmission.

2. Working characteristics

(1) Operating frequency range: 20Hz～100kHz

(2) Linear frequency range: 20Hz～80kHz

(3) Low frequency receiving sensitivity: -203±1dB

(4) Horizontal directivity: ±1dB (50kHz)

(6) Maximum working depth: 300 meters

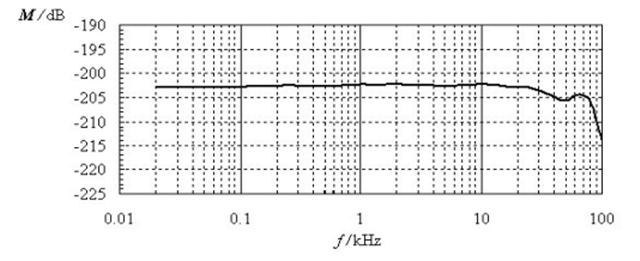

3. Free-field open circuit voltage sensitivity curve:

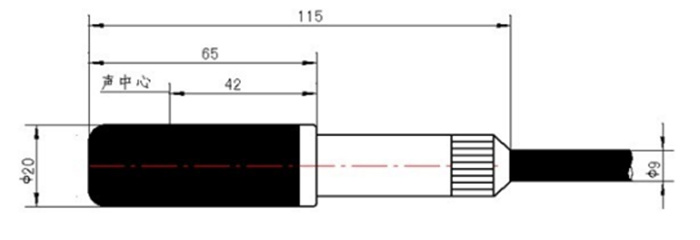

4. Schematic diagram of hydrophone structure:

Precautions for use and storage:

1. The standard hydrophone is a fragile item, handle it with care during transportation and use, and pay attention to protection;

2. The standard hydrophone should be stored in a ventilated, dry and cool place to avoid rubber aging;
