DSHNQ9K-15K
DSHNQ9K-15K

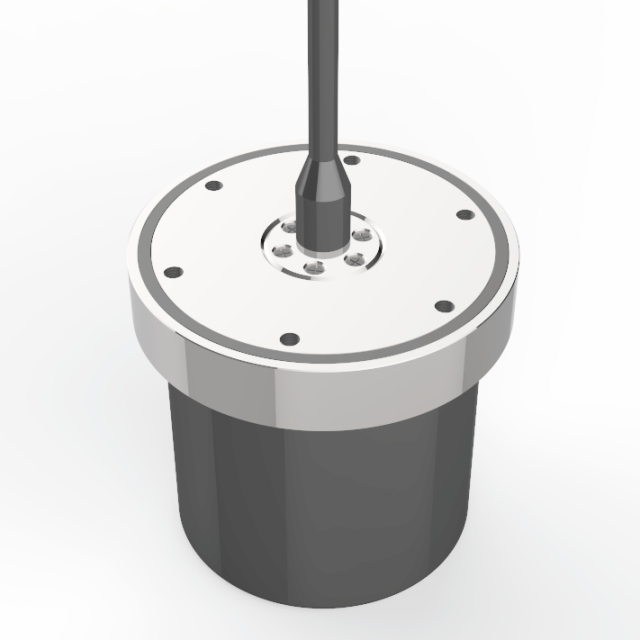

30kHz-50kHz Spherical Transducer Receiving Transmitting Transducers
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Measurement data
Acoustic Performance
1. Frequency range: 18 kHz – 34 kHz
2. Transmitting voltage response: ≥140 dB @ 25 kHz
3. Transmitting source level: ≥195 dB @ 25 kHz
4. Receiving sensitivity: ≥-187 dB
5. Directivity: Horizontal omnidirectional
Other Parameters
6. Main body dimensions: Diameter 55 mm, height 60 mm
7. Operating depth: 500 m
8. Pressure rating: 5 MPa (3000 m version customizable)
9. Metal material: 316L (customizable)
10. Electrical interface: Equipped with a 10-meter watertight cable
Structural Parameters
.
