SFHNQ50K
SFHNQ50K

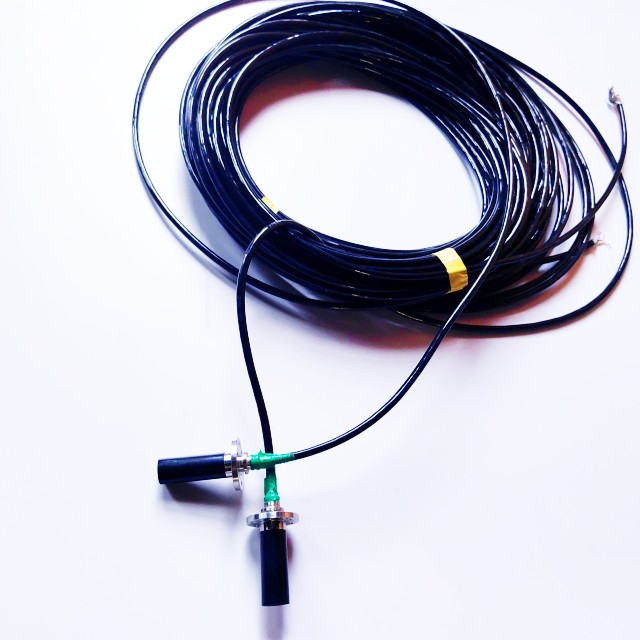

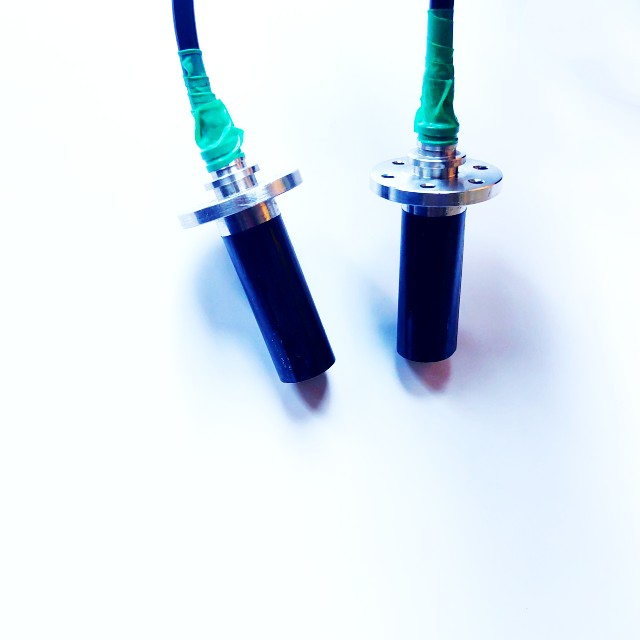

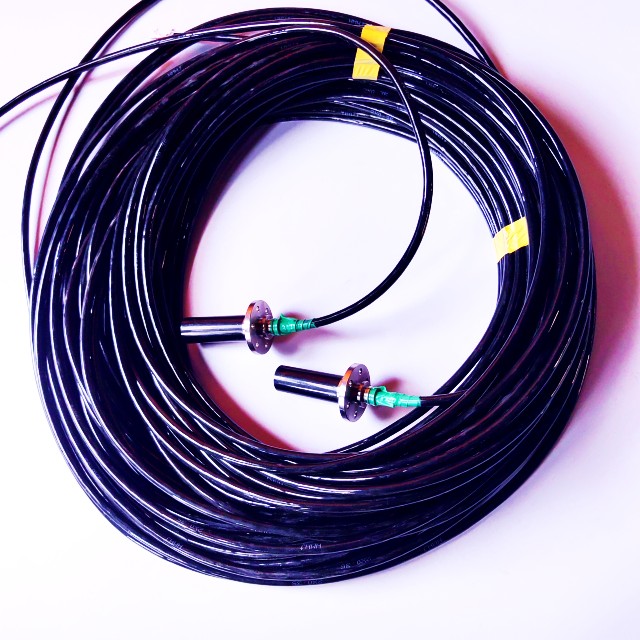

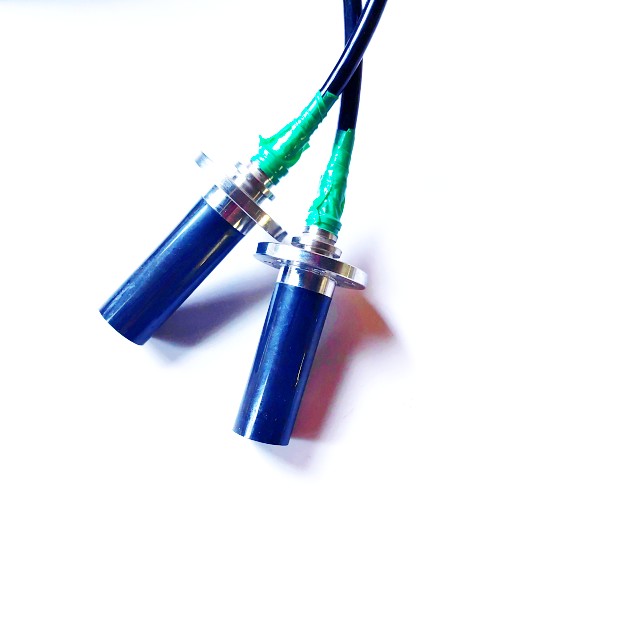

50kHz Receiving Transmitting Communication Transducer Underwater Acoustic Transducers
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Model | SFHNQ50K |
|
Working Band | 35 kHz ~65kHz | |
transmitting voltage response | ≥142dB@50K | |
Receiving sensitivity | ＞-201dB @（35K-61K） | |
Directivity | Horizontal omnidirectional | |
Sound Source Level (SL) | ≥190dB | |
Working depth | 400M（Customizable depth specifications） | |
Cable Specification | Φ6mm cable (customized specifications） | |
Weight | 0.16kg (with 20 meters cable ,weight 1.02Kg) | |
| ||
