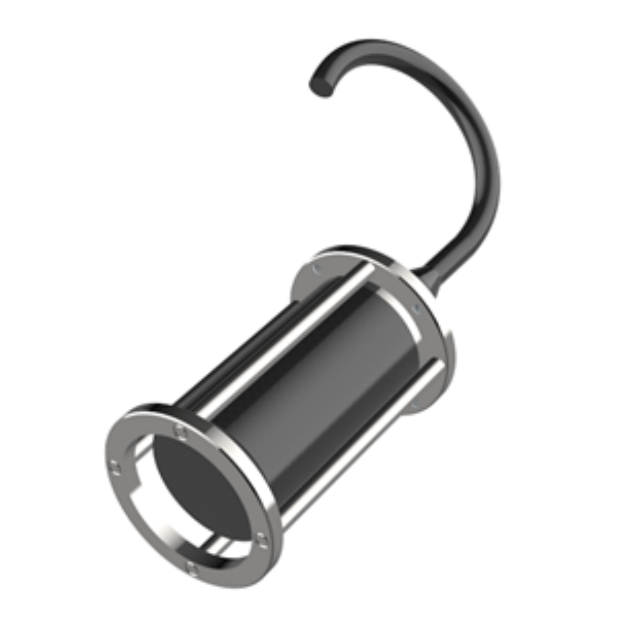

5k-20kHz High Sensitivity Hydrophone Cylindrical Receiving Transducer

Availability:

Quantity:



Inquire Add to Basket

Model:
PH23PF13PA
Code:
PH23PF13PA

5k-20kHz hydrophone high sensitivity hydrophone receiving transducer hydrophone hydrophone for transducer array 5k-20kHz receiving transducer receiving cylindrical transducer 5k-20kHz hydrophone transducer underwater projectors for transducer array receiving transducer for transducer array 5k-20kHz high sensitivity hydrophone

Product Description

Custom 0Hz-50kHz Cylindrical Receiving Transducer Hydrophone for Transducer Array

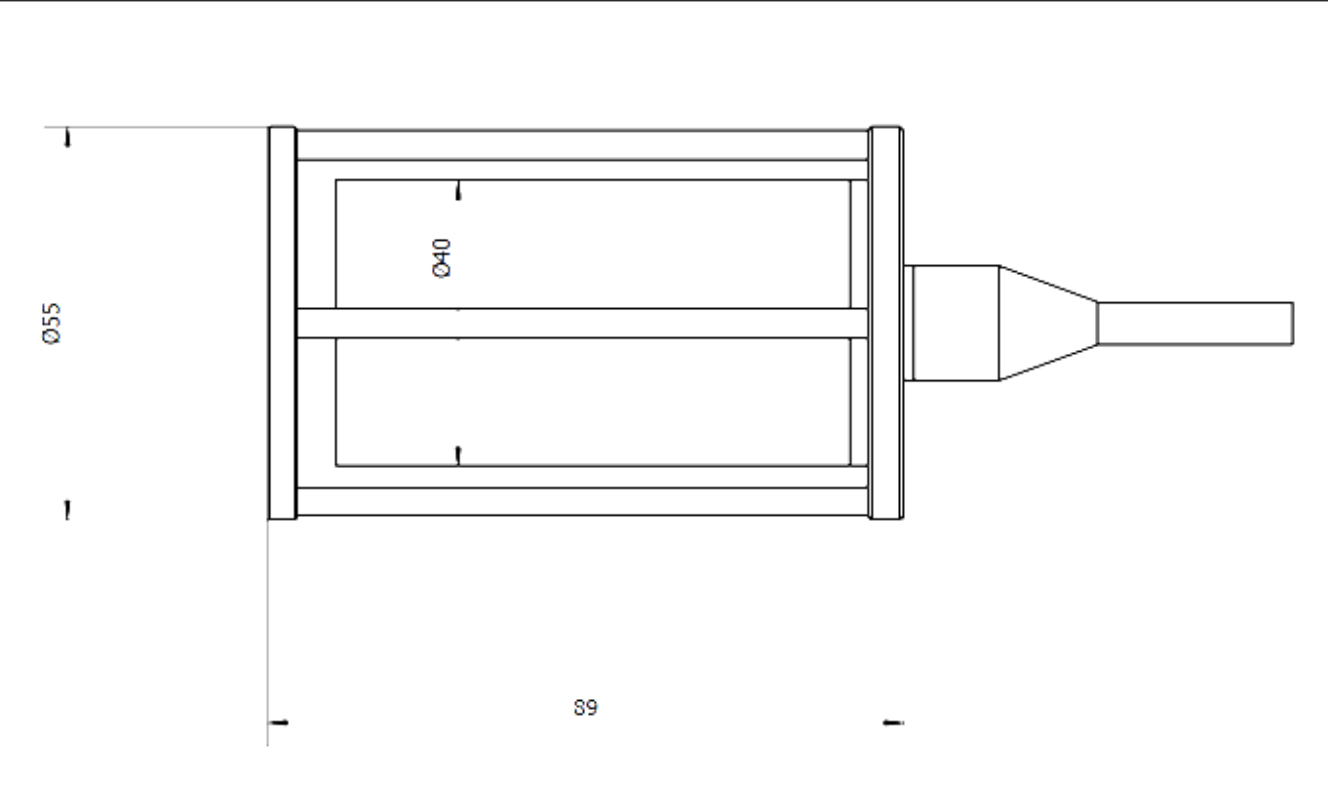

4f09baee-3f7d-44b9-ae9b-8fd32eeae8bf

Specification:

Acoustic Performance
Frequency Range	5k-20kHz
Receiving Sensitivity	≥-187dB
Directivity	Omnidirectional (horizontal and vertical) @ 10 kHz
Other Parameters
Main Body Dimension	Diameter 55 mm, Height 89 mm
Operating Depth	200m
Pressure Rating	3MPa
Metal Material	316L (customizable)
Electrical Interface	5 m watertight cable (standard); watertight connector is customizable
Protective Frame	yes
