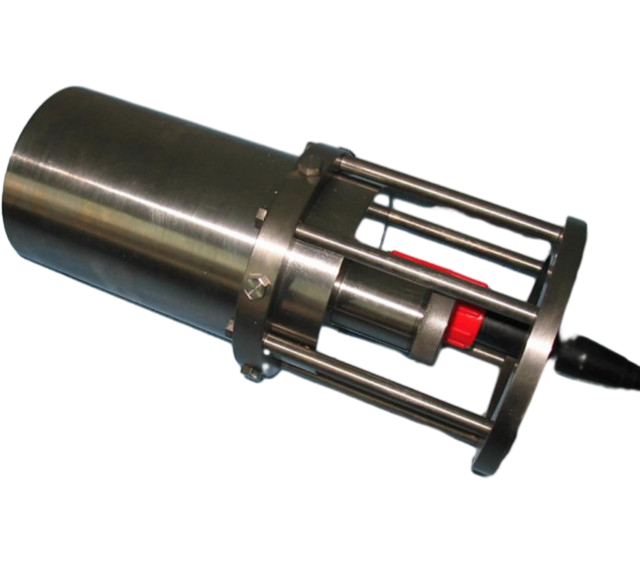

7khz-15khz Low Frequency Broadband Deepwater Acoustic Transducer for 7000M

7khz-15khz Low Frequency Broadband Deepwater Acoustic Transducer for 7000M

We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.

Specification:

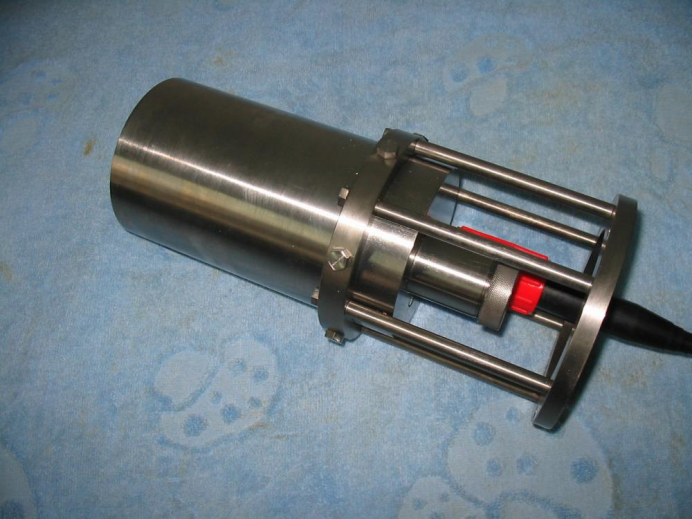

The transducer has the characteristics of low frequency, broadband, and high hydrostatic pressure resistance. The shell is made of titanium alloy material and is equipped with a pressure balance device. It has stable performance and strong reliability, and can adapt to various harsh sea conditions. It is suitable for installation on various types of deep submersibles for seabed terrain detection, long-distance communication and other applications. The transducer is easy to install and can be used alone or in an array to meet the requirements for sound source level and beam width.

Working frequency band: 7kHz~15kHz;

Working depth: 10m~7000m;

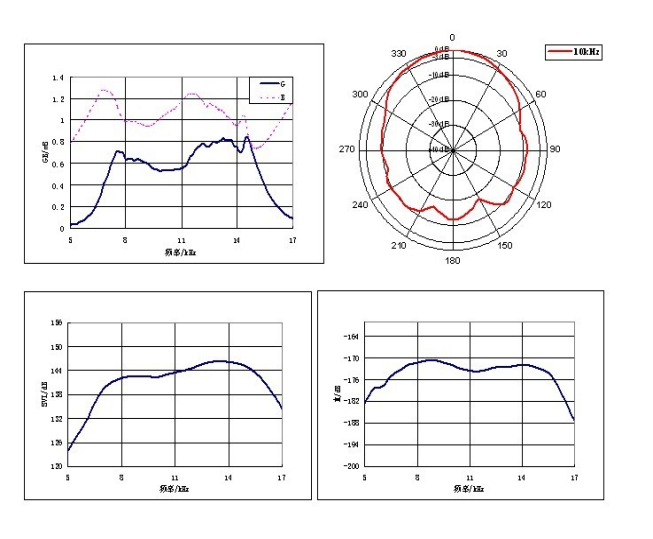

Sending voltage response: ³140dB;

Receiving sensitivity: ³-176dB;

Maximum sound source level: ³195dB;

Beam width (-3dB): 80°±10°;

Weight (in air): 6.5kg;

Maximum diameter: 130mm; Maximum length: 235mm;
