DPWZFS1600
DPWZFS1600

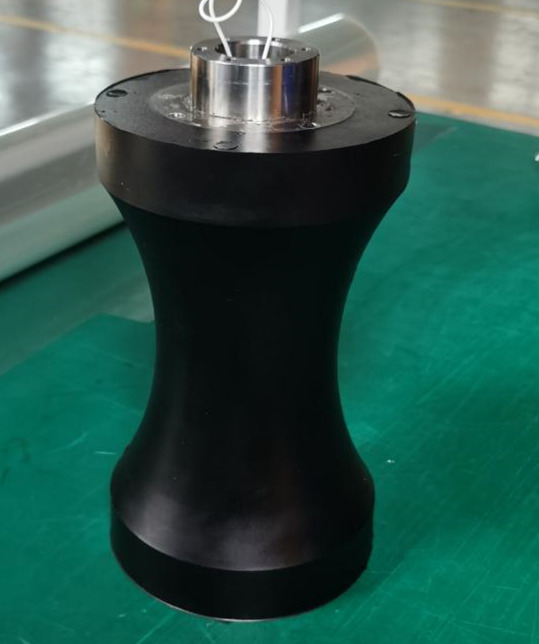

800Hz-1.6kHz Low Frequency Flextensional Transducer Transmitting Acoustic Transducer
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Main Specifications | |
Working frequency bands | 800Hz-1.6kHz |
Maximum transmitting voltage response | ≥125dB |
directivity | omnidirectional hydrophone（±1.5dB） |
Other Specifications | |
Body size | Diameter150mm，height253mm |
Working depth | 50m |
Standard cable | 10m watertight cable（custom） |
Metal Materials | 316L/TC4（custom) |
Weight in air | About 10kg |
interface mode | Flange mounting/lifting use (customizable) |
Watertight connector | Customizable (imported, domestic) |
protection architecture | optional |
Dimensions :

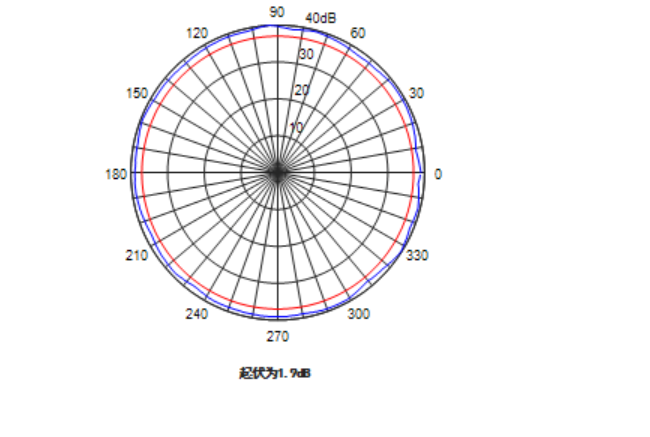

Acoustic performance curve:
