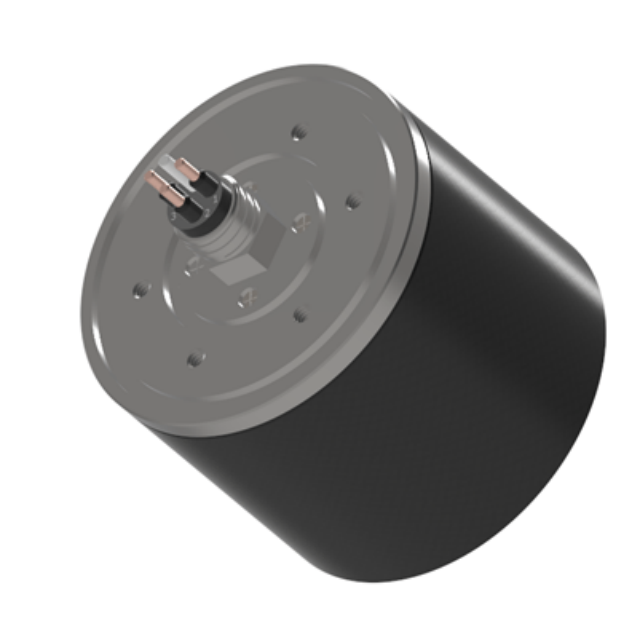

9k-15kHz Deepwater Cylindrical Receiving Transmitting Transducers for 6000m Depth

We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.

Measurement data

Acoustic Performance

1. Frequency range: 9 kHz – 15 kHz

2. Transmitting voltage response: ≥ 138 dB @ 12 kHz

3. Transmitting source level: ≥ 195 dB @ 12 kHz

4. Receiving sensitivity: ≥ -185 dB @ 12 kHz

5. Directivity: Omnidirectional (horizontal and vertical)

Other Specifications

6. Main body dimensions: Diameter 95 mm, Height 105 mm

7. Operating depth: 6,000 m

8. Pressure rating: 66 MPa

9. Metal material: TC4 titanium alloy (customizable)

10. Electrical interface: Equipped with a 10-meter watertight cable

.
