WBA-150
WBA-150

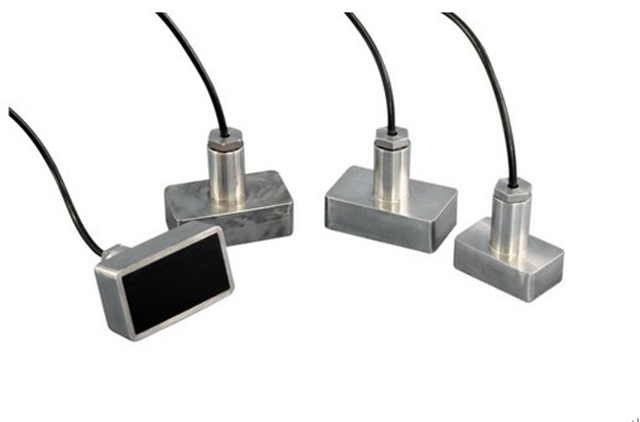

Custom 150khz High Frequency Broadband Transducer Transmitting Acoustic Transducer
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Product Description
The WBA-150 high-frequency broadband transducer adopts matching layer technology to broaden the working bandwidth and improve the transmission and reception response characteristics. It can be used in the frequency range of 100kHz to 200kHz. This type of transducer is mainly used for scanning sonar, dolphin sonar, and standards for high-frequency measurement in pools.
Sound source.
Main Specifications
Center frequency: 150kHz;
Working bandwidth: 100kHz～200kHz;
Transmit voltage response: ≥162dB (resonance point);
Horizontal beam: 3°±1.5°;
Vertical beam: 6°±1.5°;
