DPFS250
DPFS250

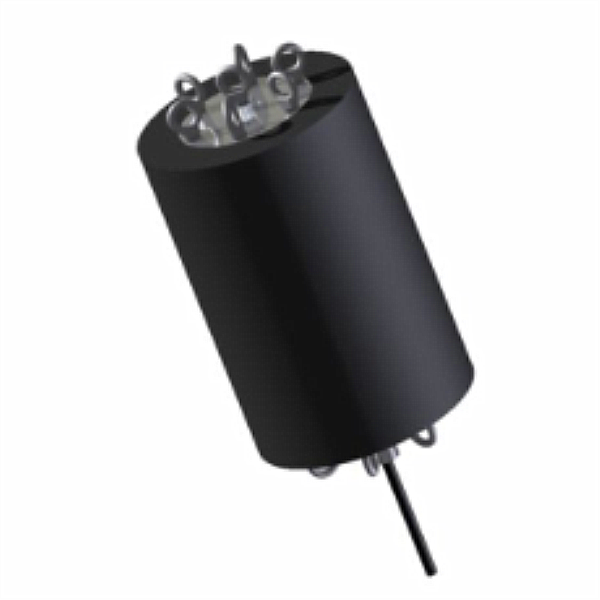

Custom 250Hz Low Frequency Hydroacoustic Transducers Marine Acoustic Transducers
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:

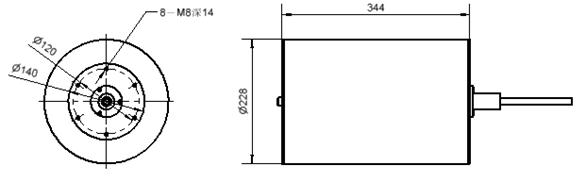

Model | DPFS250 |
|
resonant frequency | 250Hz±10% | |
Working Band | ≥45Hz | |
transmitting voltage response | ≥116 dB | |
Static Capacitance | 110000 pF | |
Directivity | Horizontal directivity | |
Sound Source Level (SL) | ≥175 dB | |
Working depth | 120m | |
Cable Specification | Φ11.2mm double core shielded cable | |
Weight | 18.4kg | |
| ||
