DSHNQ7K-17K
DSHNQ7K-17K

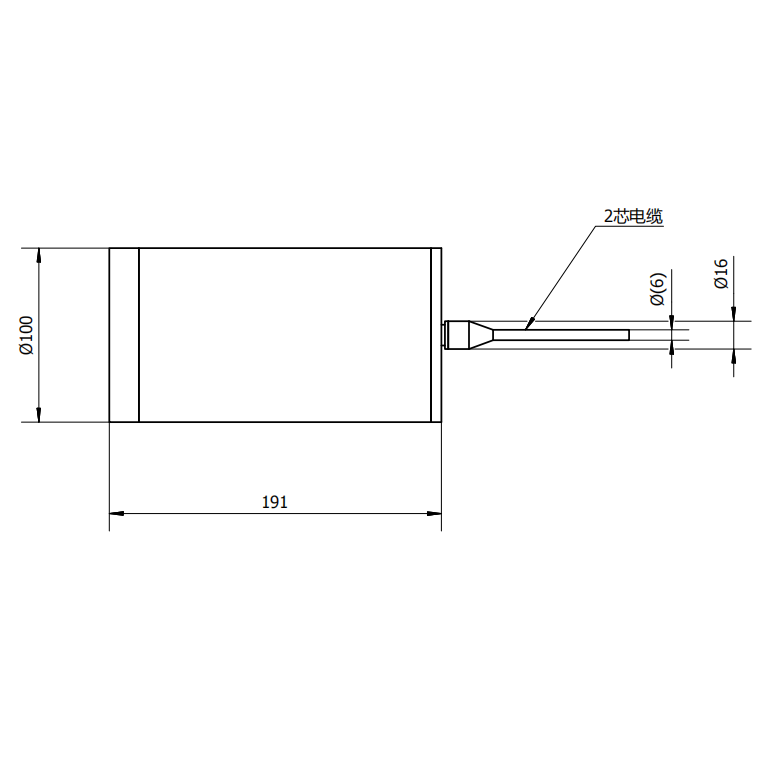

Custom 7khz-17khz Broad Angle Transmitting Transducers for Underwater Acoustic
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Measurement data

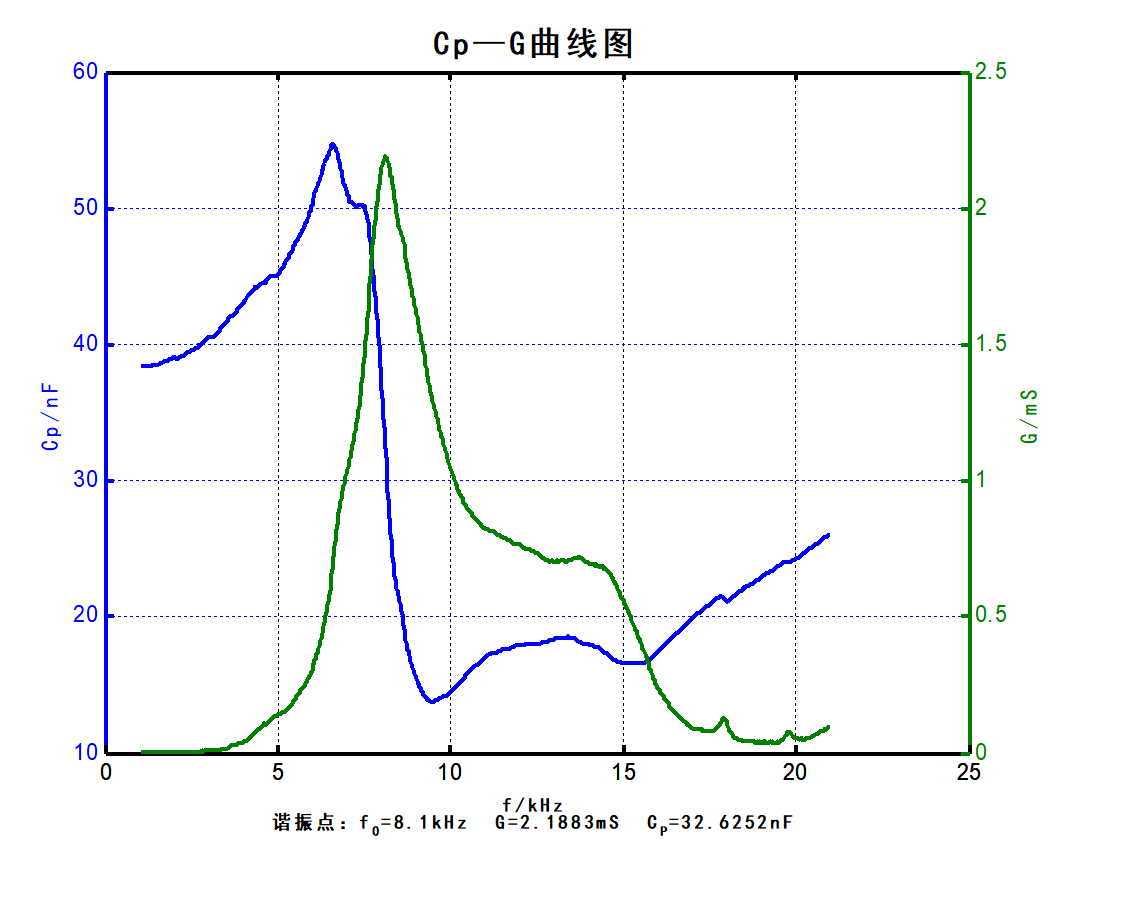

Conductance and capacitance parameters
f/klHz | C/nF | R/Ω |
6 | 50.5 | 3239 |
6.5 | 54.3 | 1659 |
7 | 51.0 | 962 |
7.5 | 50.0 | 683 |
8 | 36.6 | 466 |
8.5 | 21.4 | 518 |
9 | 15.5 | 619 |
9.5 | 13.8 | 780 |
10 | 14.4 | 956 |
10.5 | 15.8 | 1115 |
11 | 17.0 | 1211 |
11.5 | 17.6 | 1257 |
12 | 17.9 | 1305 |
12.5 | 18.1 | 1359 |
13 | 18.4 | 1419 |
13.5 | 18.5 | 1407 |
14 | 18.0 | 1430 |
14.5 | 17.4 | 1483 |
15 | 16.6 | 1782 |
15.5 | 16.6 | 2463 |
16 | 17.4 | 4197 |
Transmitting response and sound source level
f/kHz | Svl/dB |
6 | 138.4 |
7 | 143 |
8 | 147.3 |
9 | 147.4 |
10 | 144.1 |
11 | 144.2 |
12 | 146.2 |
13 | 146.4 |
14 | 146.8 |
15 | 148 |
16 | 146.6 |
17 | 142.4 |

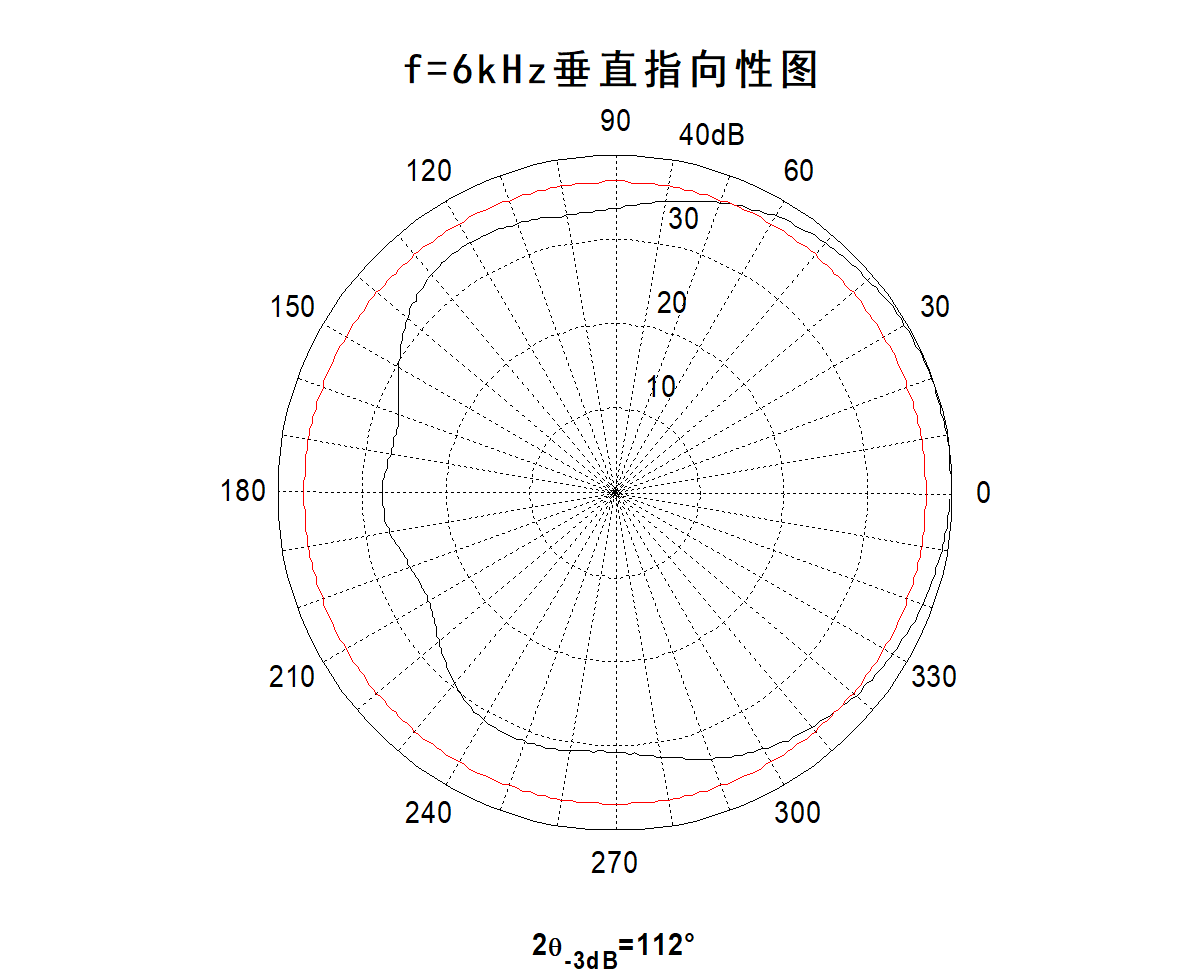

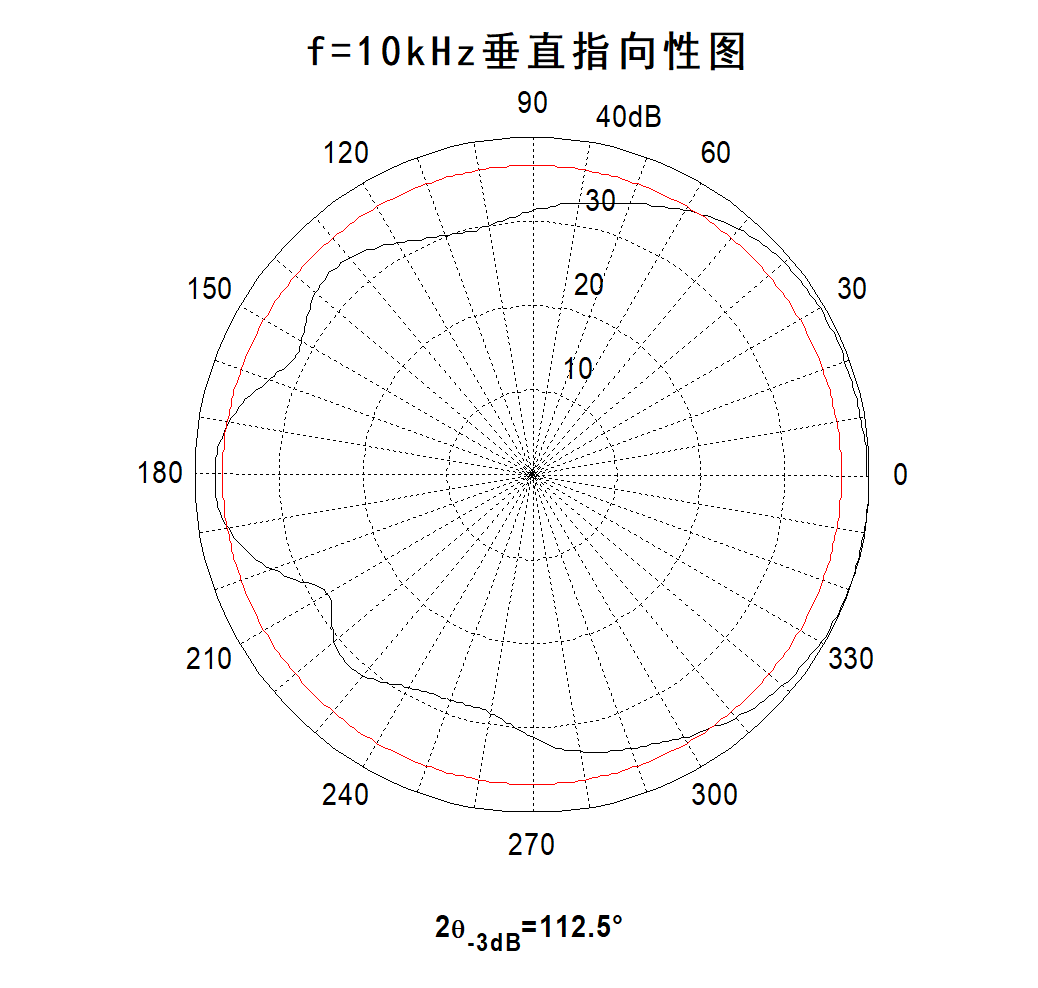

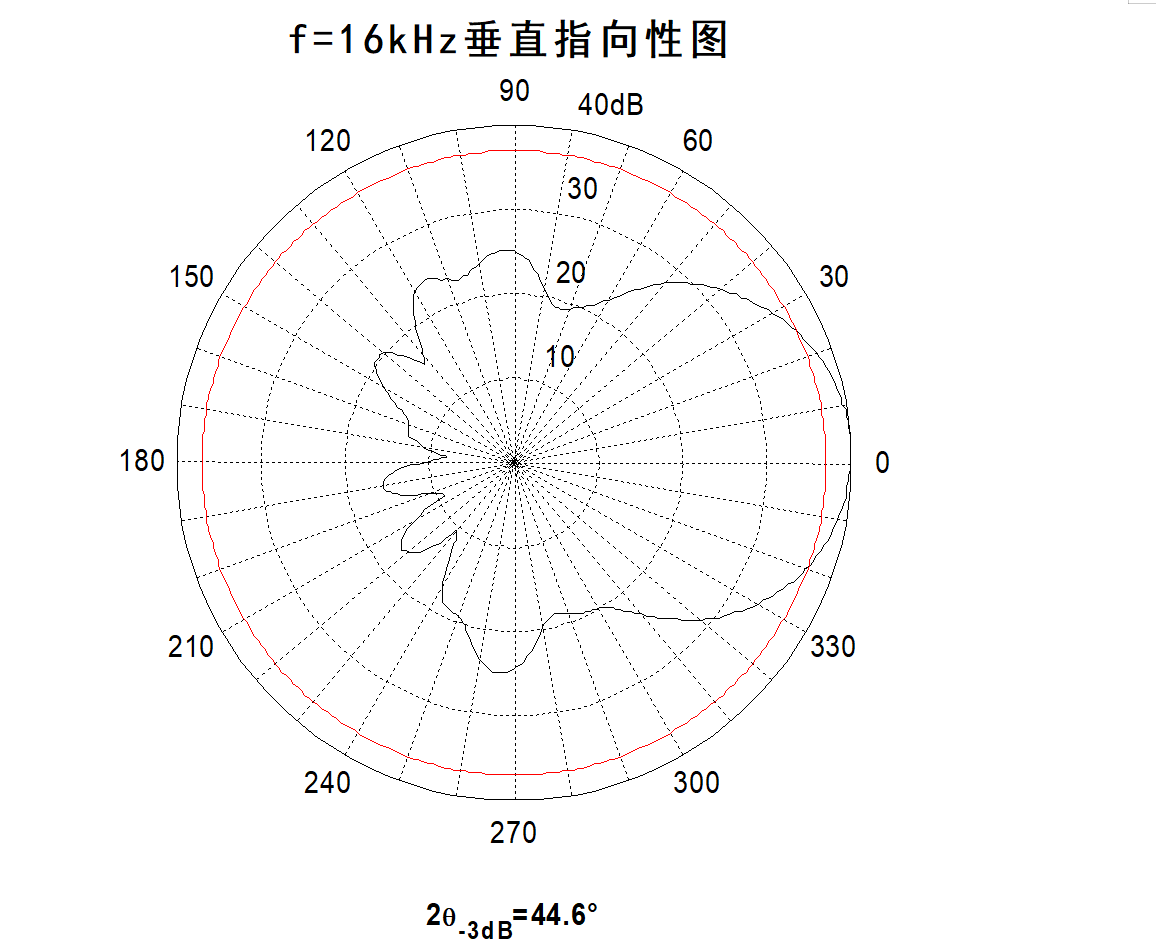

Vertical directivity
.
