DSHNQ8K-16K
DSHNQ8K-16K

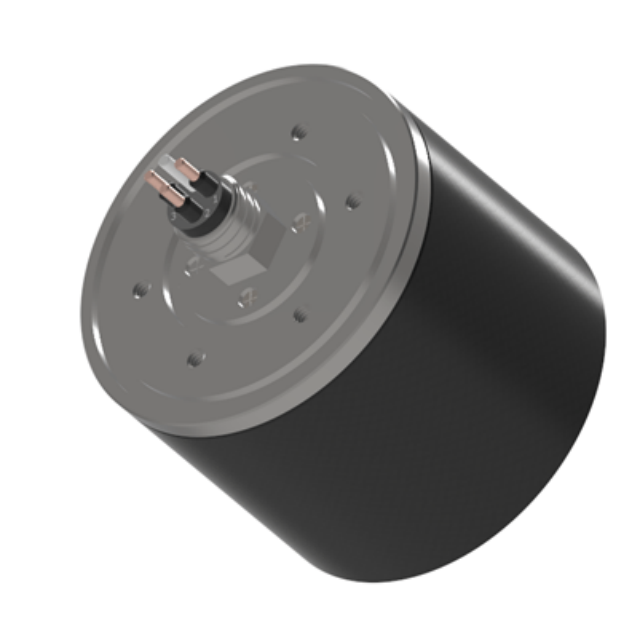

Custom 8k-16kHz Cylindrical Receiving Transmitting Transducers
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Measurement data
Acoustic Performance
| |
Frequency Range | 8k-16kHz |
Transmit Voltage Response | ≥ 140dB@12kHz |
Transmit Source Level | ≥ 195dB@12kHz |
Receive Sensitivity | ≥ -190dB |
Directivity | Horizontal omnidirectional; vertical beamwidth ≥ 120° @ 12 kHz
|
Other Parameters
| |
Main Unit Dimensions | Diameter 95 mm, Height 76 mm
|
perating Depth | 600m |
Pressure Rating | 6.6MPa |
Metal Material | 316L (customizable)
|
Electrical Interface | Miniature circular 3-pin connector (male)
|
Protective Frame | |

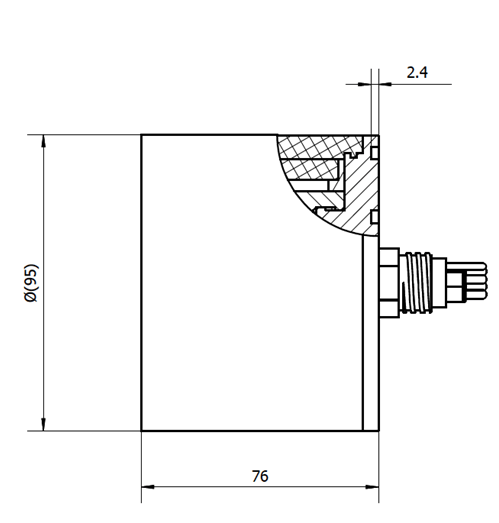

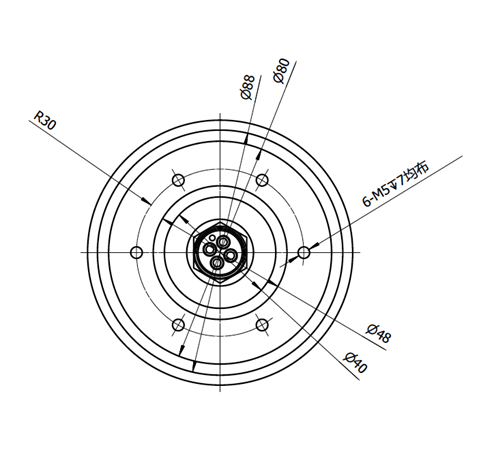

Structural Parameters:
.
