PH4013
PH4013

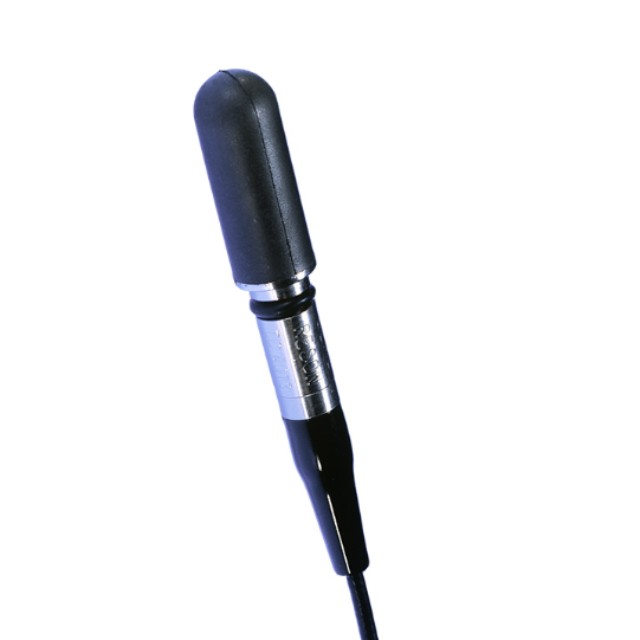

High Sensitivity Broad Banded Miniature Hydrophone Omnidirectional Reference Projector
Specification :
The PH4013 offers a usable frequency range of 1Hz to 170kHz and a high sensitivity relative to its size. It further-more provides uniform omnidirectional sensitivities in both horizontal and vertical planes up to high frequencies.it is an excellent transducer for making absolute sound measurements and calibrations within a broad frequency range. It can also be applied as an omnidirectional reference projector.
Key Features:
High sensitivity
Omnidirectional to high frequencies
Broad banded
O-ring sealed mounting
Individually calibrated
Usable frequency range | 1Hz to 170kHz |
Receiving sensitivity | -211dB ±3dB re 1V/µPa |
Transmitting sensitivity | 130dB ±3dB re 1µPa/V at 1m at 100kHz |
Horizontal directivity pattern | Omnidirectional ±2dB at 100kHz |
Vertical directivity pattern | 270° ±3dB at 100kHz |
Nominal capacitance | 3.4nF |
Operating depth: | 700m |
Survival depth: | 1000m |
Operating temperature range | -2°C to +80°C |
Storage temperature range | -40°C to +80°C |
Weight (in air) | 75g |
Cable length | Standard length 6m,Optional cable lengths available on request |
Encapsulating material | Special formulated NBR |

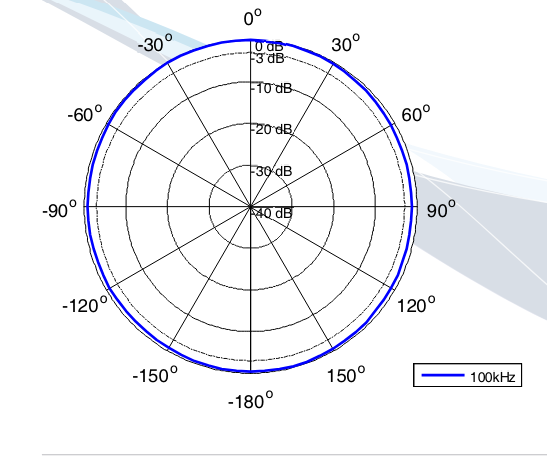

Horizontal directivity pattern

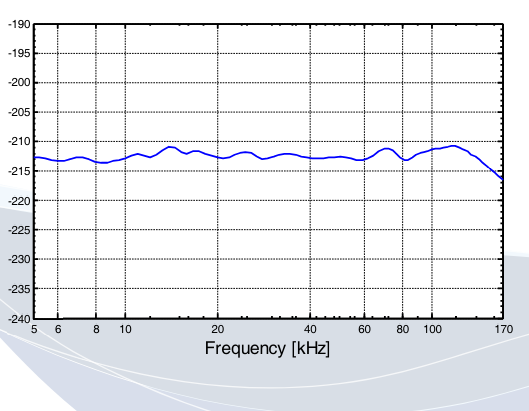

Receiving Sensitivity

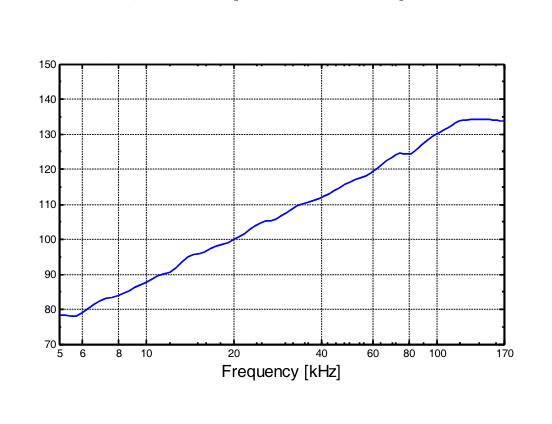

Transmitting Sensitivity
