PH8103
PH8103

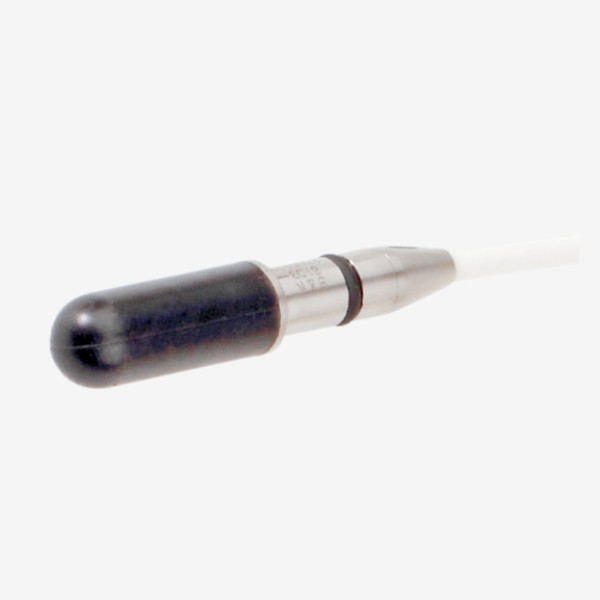

High-sensitivity Miniature Hydrophone Underwater Projectors for Cavitation Measurement
Specification :
Miniature Hydrophone Type PH8103 small transducer with a high sensitivity relative to its size and good all-round characteristics; applicable to laboratory, industrial and educational use. Its highfrequency response is valuable when measuring pressure-distribution patterns in ultrasonic-cleaning baths, for example.
Uses:
Cavitation measurements
Ultrasonic measurements in liquids
Acoustic investigation of marine animals
Laboratory and industrial measurements in liquids and gases
Noise measurements in humid and polluted atmospheres
Features:
Frequency range: 0.1 Hz to 180 kHz •
Receiving sensitivity: –211 dB re 1 V/μPa
Very small size (50 × 9.5 mm)
–3 dB limit in air at 15 kHz
Integral cable ending with 10-32 UNF connector (male), length from 1 to 400 m

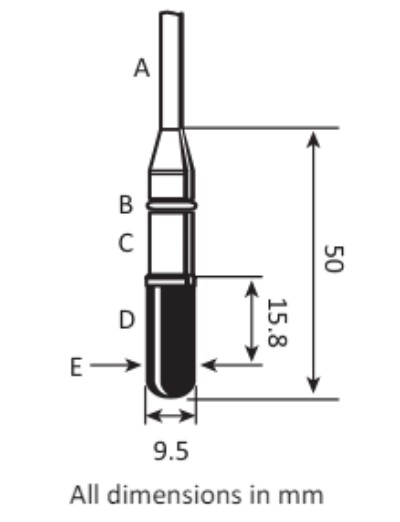

Size :
