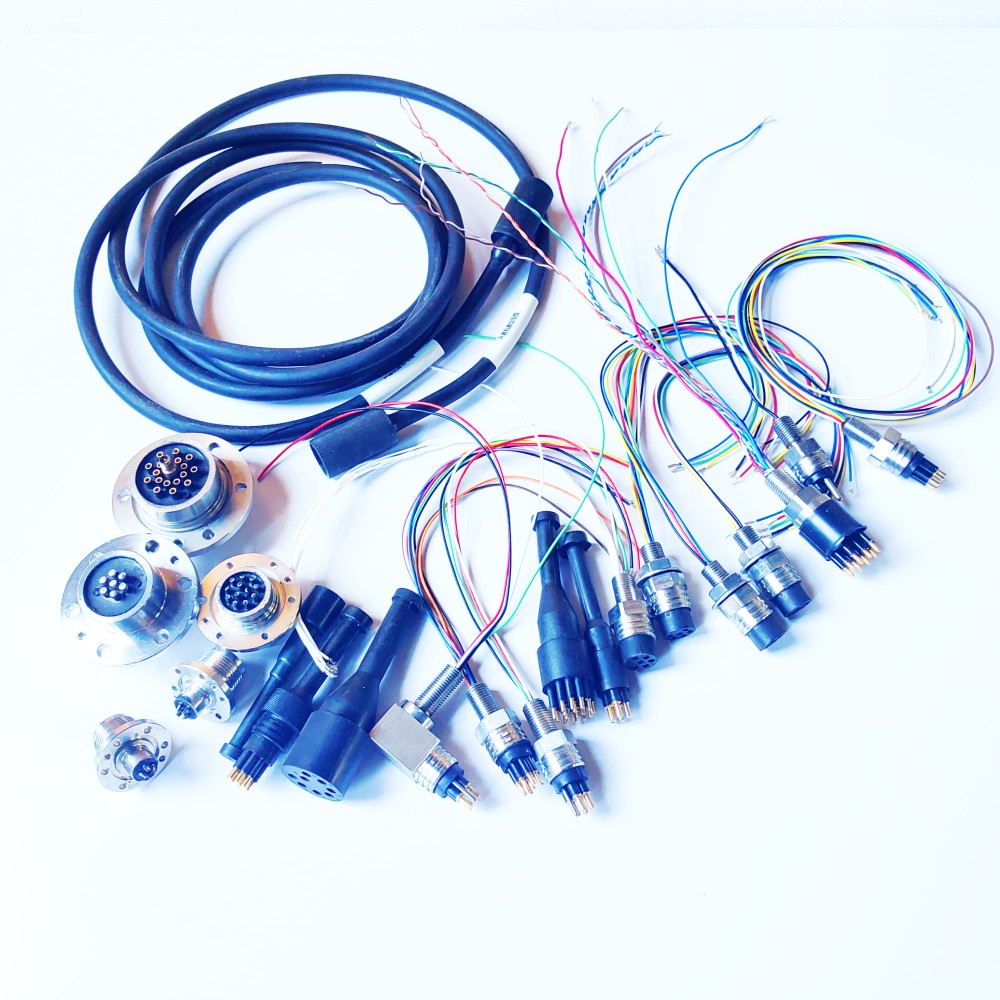

Low Cost Underwater Electrical Connectors for Underwater Robotics
Standard circular series rubber underwater connectors are suitable for the market demand in the underwater and harsh environment. This series of connectors have 4 types of different sizes and housing , the maximum contact is 16, the working voltage is from 300V to 600V, the working current is from 5Amp to 15Amp, and the working depth is 7000m. The standard circular connector includes a socket with cable , a panel installing socket and a waterproof seat. It is made of high-grade chloroprene rubber and stainless steel materials. The socket is fitted with a waterproof SOOW flexible cable. The rear of the seat is fitted with a multi-pronged tail line with a Teflon skin. The lock cover is cast with polyformaldehyde resin and used with stainless steel elastic clasp ring.This series of connectors has carried out extensive environmental testing and index testing,connectors can be widely used in marine science, military exploration, marine oil exploration, marine geophysics, nuclear power station and other industries' equipment configurations, and can also be used with the SubConn series of underwater connectors.
Application:
Underwater robotics such as Remotely Operated Vehicle, Autonomous Underwater Vehicle systems , Remotely operated towed vehicle (ROV's & ROTV's & AUV)
Underwater systems and equipment, marine inspection, subsea sensors
Oceanographic systems, hydrographic survey equipment and instrumentation solutions
Offshore oil and gas,Sonar systems, renewable energy and subsea system
Underwater camera, video, lighting and tracking systems
Diving systems and equipment
Material Specifications:
Connector Body: Neoprene Rubber
Bulkhead Socket: stainless steel, titanium alloy
Contacts: Gold Plated Brass (H62)
O-Rings: Nitrile
Locking cover: polyformaldehyde resin
Elastic clasp :302 stainless steel
Socket with cable (60cm) : 16AWG 1.31mm2 rubber
Socket with braid (30cm) : 18AWG 1.0mm2 Teflon
Connector Specifications:
Contact | 2/3/4/5/6/8/10/12/16 | Current Rating | 10A/pin |
Insulation Resistance | >200Mohm | Contact Resistance | <0.01Ω |
Qualified Pressure | 80Mpa/140Mpa | Max working depth | 7000m |
Mating | >500 times | Working Temperature | -40~60°C |
