PH8105
PH8105

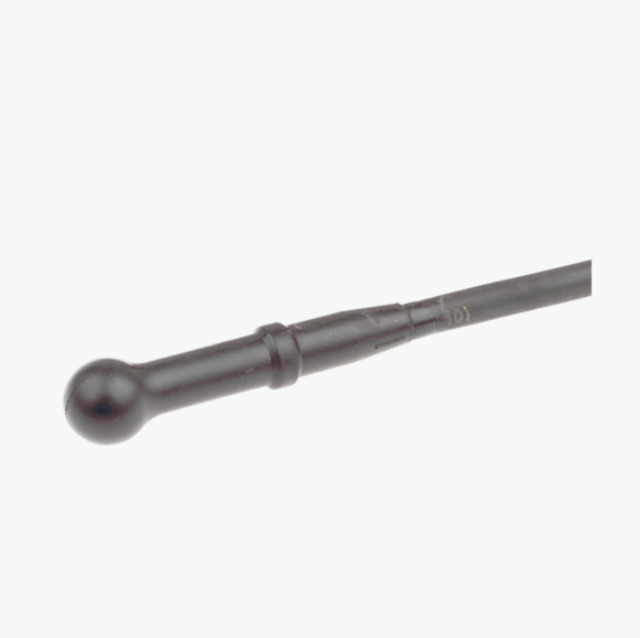

Robust Spherical Hydrophone Underwater Projectors for Ocean Depth
Specification :
Spherical Hydrophone Type PH8105 A small, spherical transducer with rugged construction, capable of withstanding pressures of up to 9.8 MPa (100 atm; 1000m ocean depth). This hydrophone has excellent directional characteristics: at 100 kHz, it is omnidirectional over 360° in the xy (radial) plane and 270° in the xz (axial) plane.
Uses
Ultrasonic measurements in liquids
Laboratory and industrial measurements in liquids and gases
Underwater projector
Noise measurements in humid and polluted atmospheres
Features
Frequency range: 0.1 Hz to 160 kHz

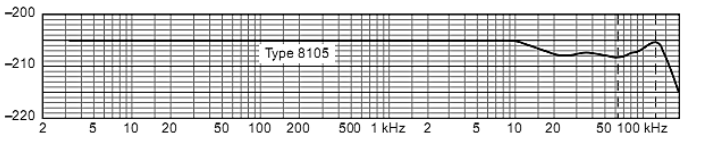

Receiving sensitivity: –205 dB re 1 V/μPa
Spherical
Omnidirectional over full frequency range
Completely encased in rubber
–3 dB limit in air at 7 kHz
Can sustain a hydrostatic pressure of 9.8 MPa (approximately corresponds to a 1000 m column of water)
Integral cable ending with BNC connector, length from 10 to 200 m
Integral cable ending with submersible connector, length 10 m

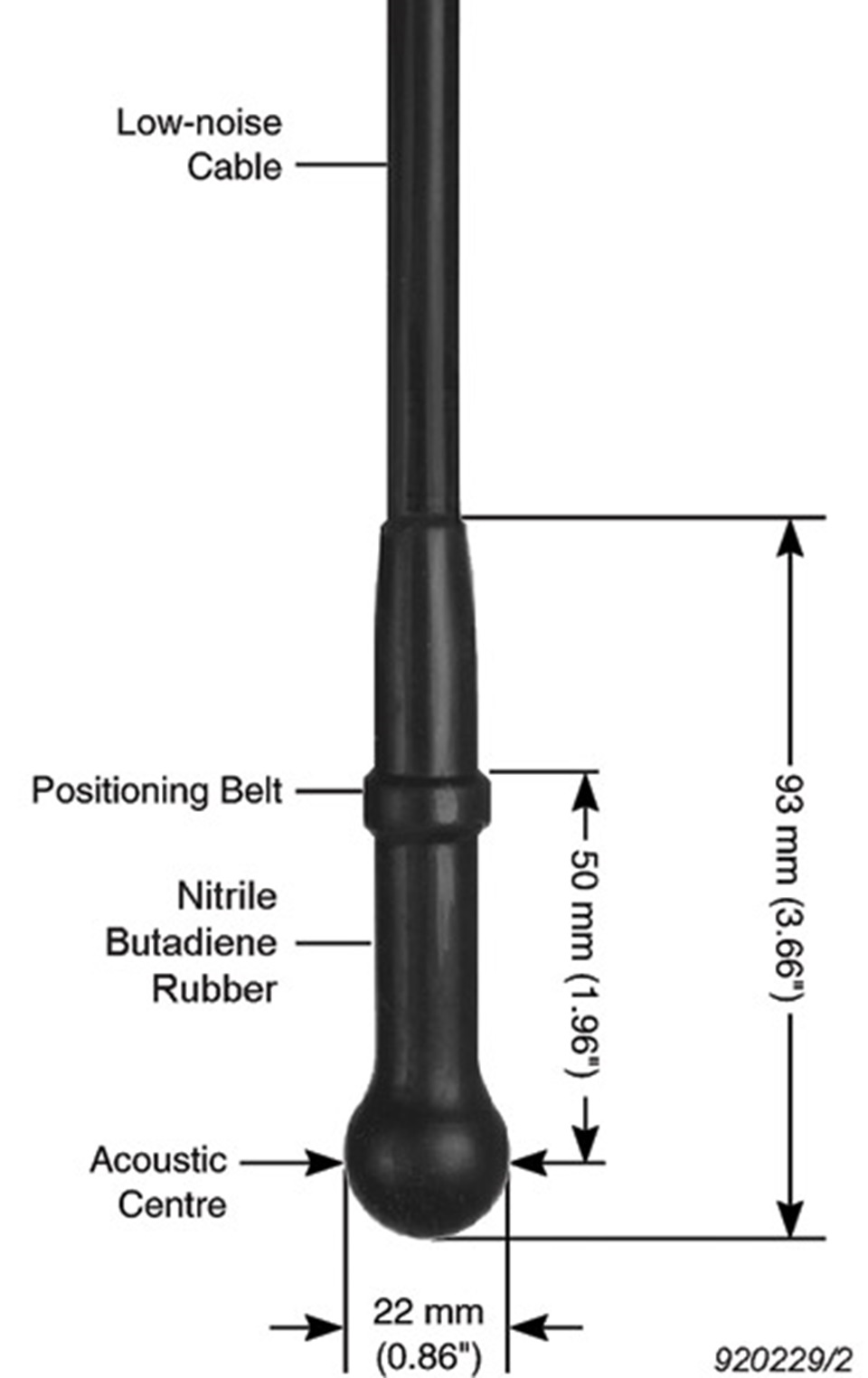

Size :
