PH4033
PH4033

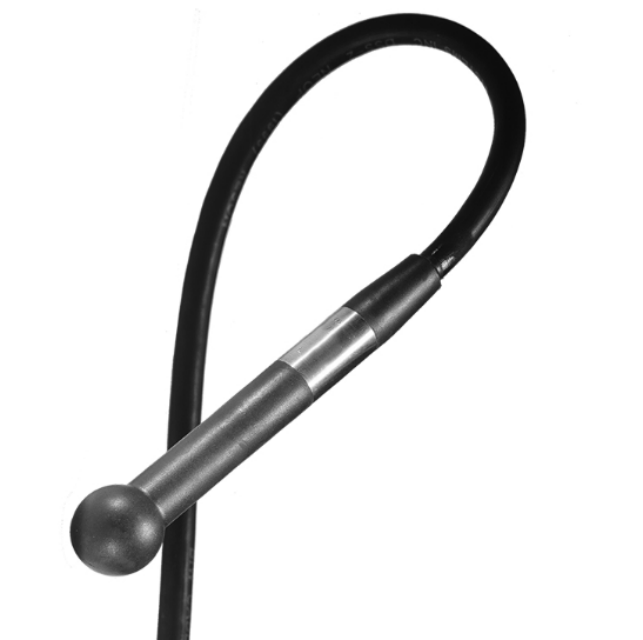

Wide Range Omnidirectional Hydrophone Receiving Transmitting Transducer for Calibration Purpose
Specification :
The PH4033 provides uniform omnidirectional characteristics within the full frequency range of 1Hz to 140kHz. The Typical sensitivity of -203dB re 1V/µPa and the capacitance of 7nF, ensure an excellent signal to noise ratio, thereby allowing PH4033 to be used with extension cables with only a limited reduction in sensitivity. The PH4033 offers excellent acoustic characteristics and durability, which makes it ideal for a wide range of applications and for calibration purposes.
Key Features:
Omnidirectional in the full frequency range
Wide frequency range
Durable construction
Long term stability
Individually calibrated
Model | PH4033 |
Usable frequency range | 1Hz to 140kHz |
Linear frequency range | 1Hz to 80kHz |
Receiving sensitivity | -203dB ±2dB re 1V/µPa at 250Hz |
Transmitting sensitivity | 144dB ±2dB re 1µPa/V at 1m at 100kHz |
Horizontal directivity pattern | Omnidirectional ±2dB at 100kHz |
Vertical directivity pattern | 270° ±3dB at 100kHz |
Nominal capacitance | 7.8 nF (incl.10m cable) |
Operating depth: | 900m |
Operating temperature range | -2°C to +80°C |
Storage temperature range | -40°C to +80°C |
Weight (in air) | 1.5kg |
Cable length | Standard length 6m,Optional cable lengths available on request |
Connector type | BNC |
Encapsulating material | Special formulated NBR |

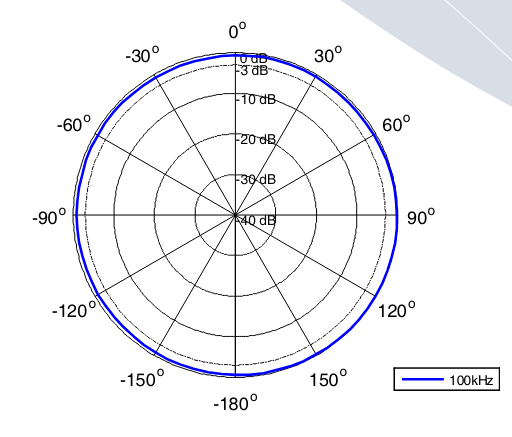

Horizontal directivity pattern

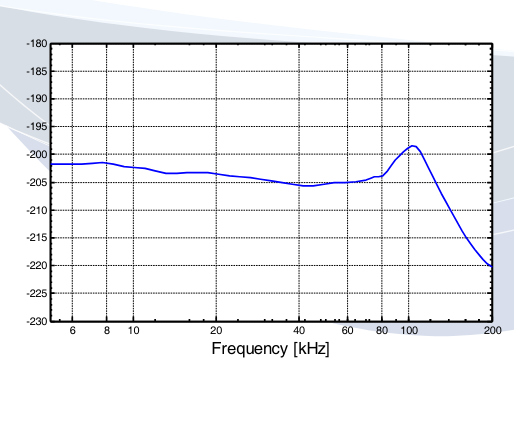

Receiving Sensitivity

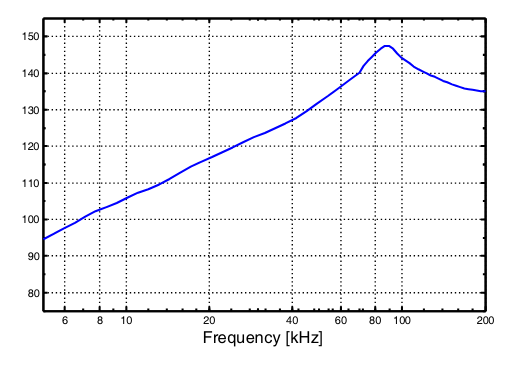

Transmitting Sensitivity

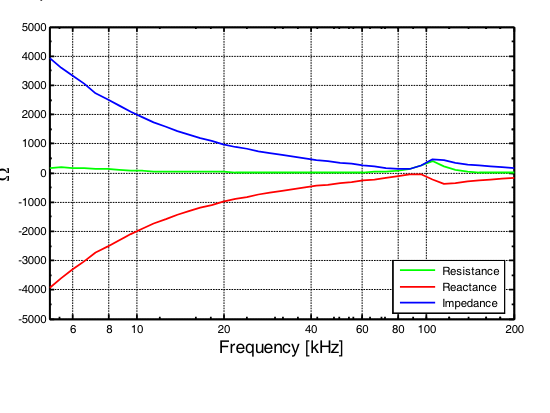

Impedance

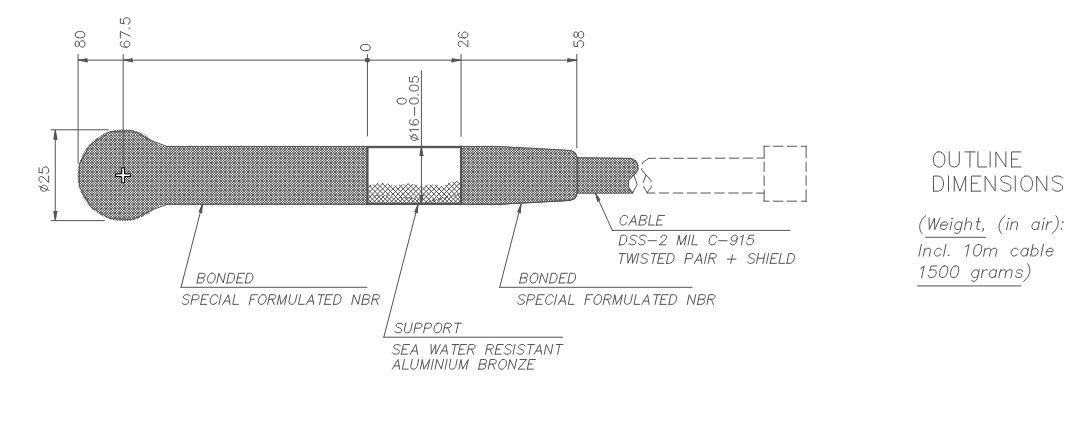

Size :
