HSTGMS-200-10
HSTGMS-200-10

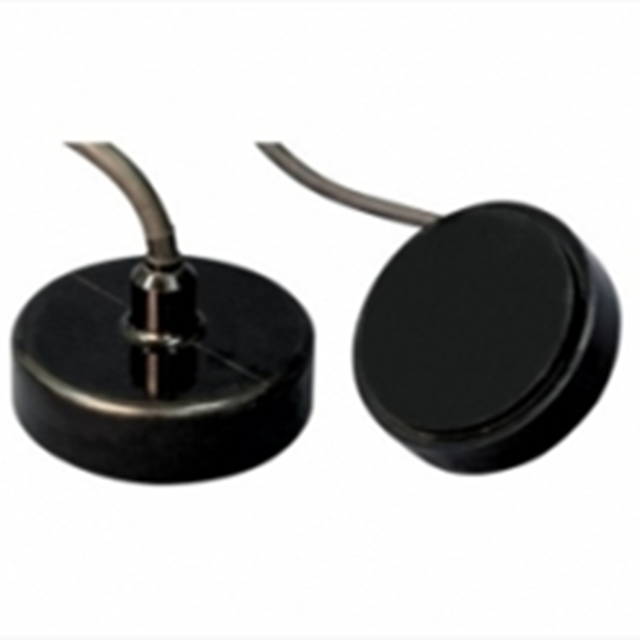

200khz Receiving Transmitting Acoustic Transducer for Depth Measurement
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Product Description:
The transducer uses the thickness vibration mode of the piezoelectric ceramic disc to work. It is a transceiving shared transducer, which is suitable for measuring the depth of waterways on ships navigating inland rivers.
Technical Parameters:
Resonance frequency | ( 200±5) kHz |
Resonance impedance | (40±10) Ω |
Transmit voltage response | ≥178dB 200kHz (re1µPa/V，20m cable) |
Receiving sensitivity response | ≥-190dB 200kHz (re1V/µPa，20m cable) |
Beam width | (6±1)°200kHz |
Capacitance | (15000±2000)PF（with 20m cable） |
