HSTGMS-200
HSTGMS-200

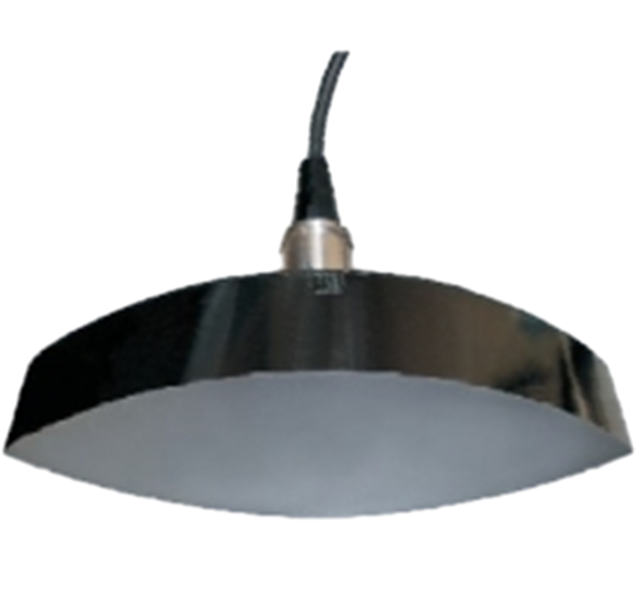

Custom 200khz Receiving Transmitting Acoustic Transducer Single-frequency Directional Transducer
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
This type of single-frequency directional transducer is made of high-quality components, with a centrally symmetrical natural single beam, the main beam is conical, with excellent performance and high reliability. It is suitable for landform survey, bottom depth survey and fish detection of inland rivers, lakes and shallow waters, and can be used as underwater accessories of related underwater acoustic detection instruments.
Resonance frequency | 200kHz±10kHz(50m cable)
|
Shape of main beam | conical |
-3dB beam width | 5°±0.5°@200kHz |
Maximum sidelobe level | ≤-15dB |
Transmit voltage response | 175dB±3dB@200kHz(re1µPa/V，50m cable) |
Receiving sensitivity | -185dB±3dB@200kHz(re1V/µPa，50m cable) |
-3dB response bandwidth | 20kHz±5kHz |
Equivalent electrical impedance | 70W±20W@200kHz（50m cable） |
Static capacitance | 1450pF±150pF(50m cable) |
Drive voltage | ≤600Vrms |
Insulation resistance | ≥500MΩ |
Shell shape | diversion or round (customizable) |
Weight | 3kg(excluding cables) |
Cable type | shielded two-core rubber cable
|

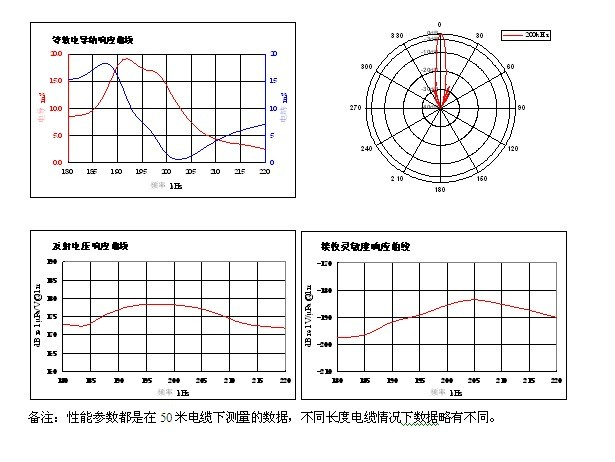

Testing Performance:
