QXSTQ80
QXSTQ80

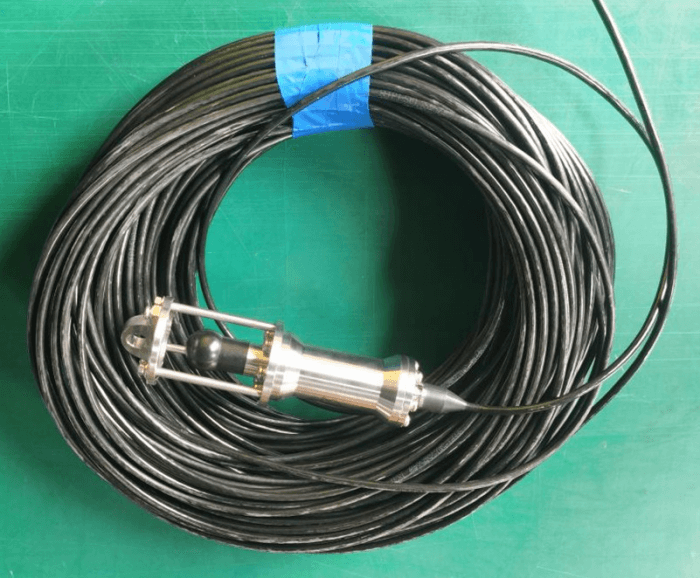

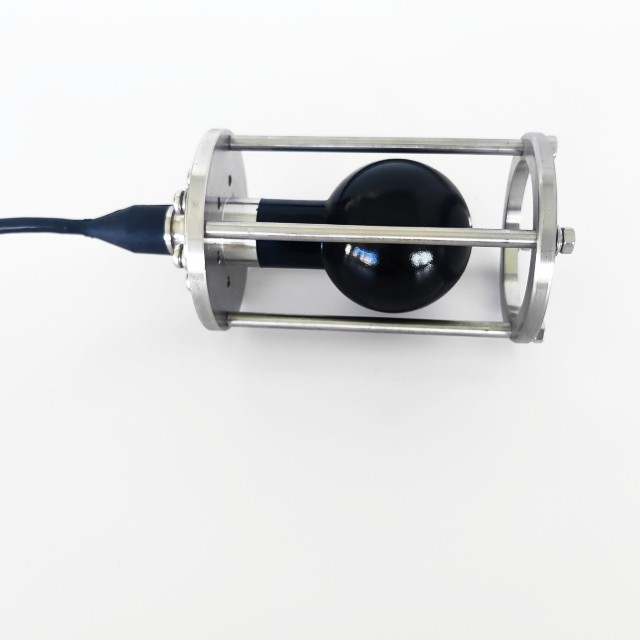

80kHz Omnidirectional Spherical Hydrophone Projector with Preamplifier
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Main Specifications | |
Working frequency bands | 20Hz-80kHz |
Receiving sensitivity | ≥-175dB（Preamp included+20dB） |
horizontal directivity | omni-directional （±1.5dB） |
vertical directivity | ≥60°（-3dB） |
power input | +4.5v-12v |
output mode
| differential output |
Other Specifications | |
Body size | Diameter 52mm，height169mm |
Working depth | 200m |
Standard cable | 10m watertight cable（custom） |
Metal Materials | 316L/TC4（custom) |
interface mode | Flange mounting/lifting use (customizable) |
Watertight connector | Customizable (imported, domestic) |
protection architecture | optional |
other | Optional hook |

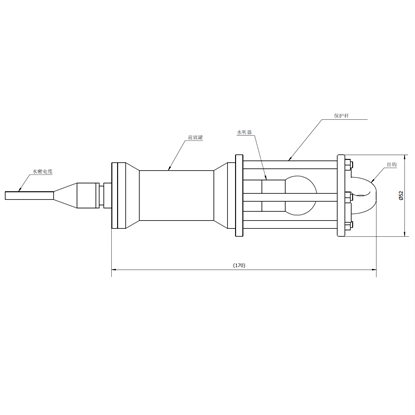

Dimensions

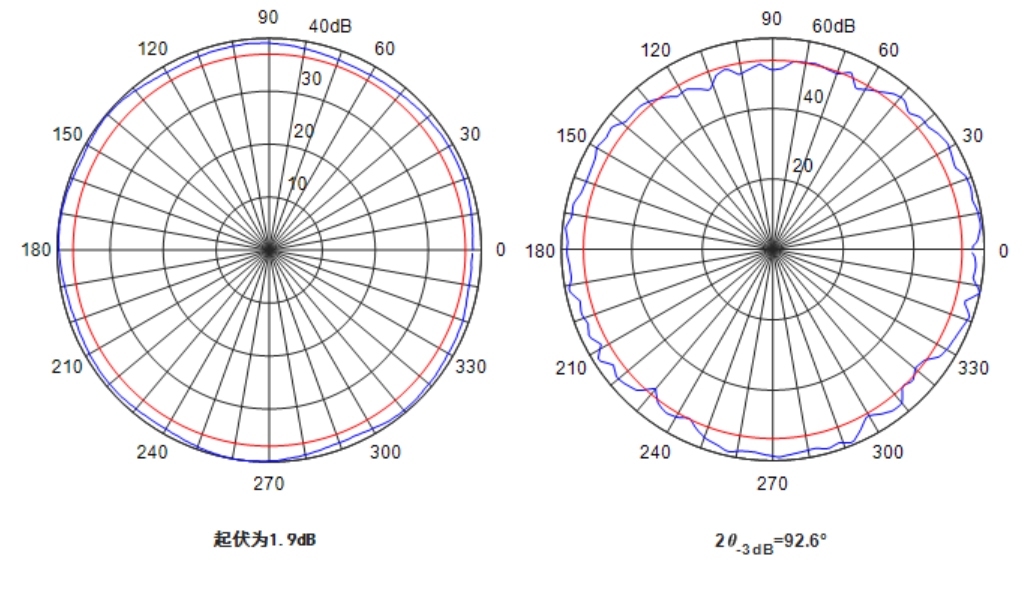

Acoustic performance curve:
