QXSTQ70
QXSTQ70

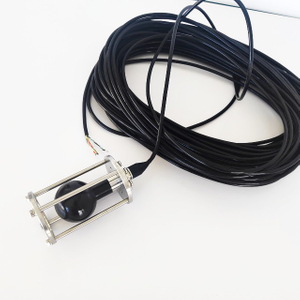

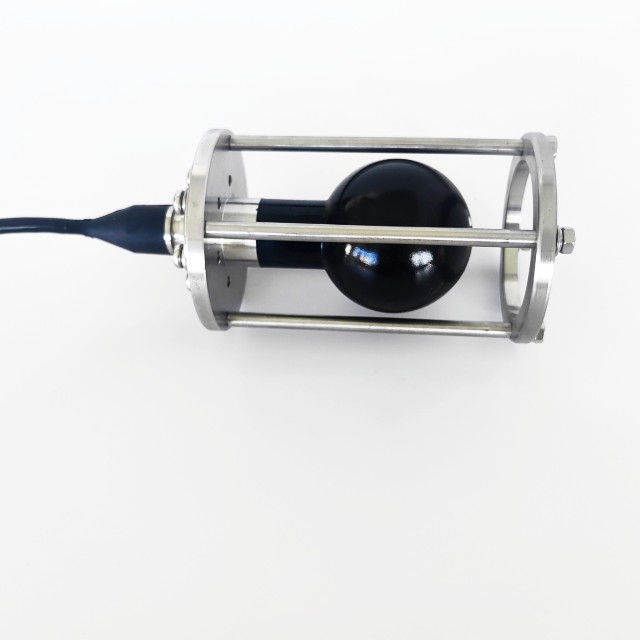

70kHz Omnidirectional Spherical Hydrophone Projector Receiving Transducer
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Main Specifications | |
Working frequency bands | 20HzHz-70kHz |
Receiving sensitivity | ≥-200dB |
horizontal directivity | omni-directional （±1.5dB） |
vertical directivity | ≥180degree（-3dB） |
Other Specifications | |
Body size | Diameter 56mm，height 81.5mm |
Working depth | 2500M |
Standard cable | 10m watertight cable（custom） |
Metal Materials | 316L/TC4（custom) |
interface mode | Flange mounting/lifting use (customizable) |
Watertight connector | Customizable (imported, domestic) |
protection architecture | optional |

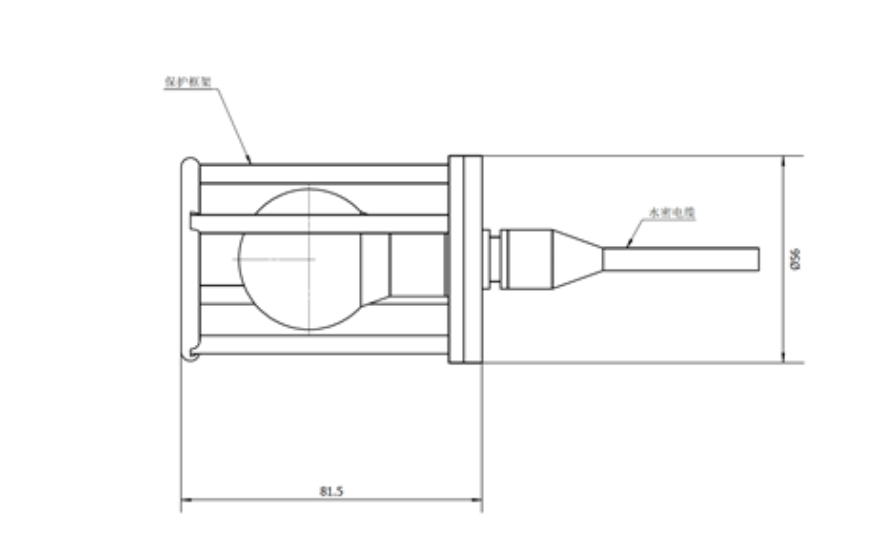

Dimensions

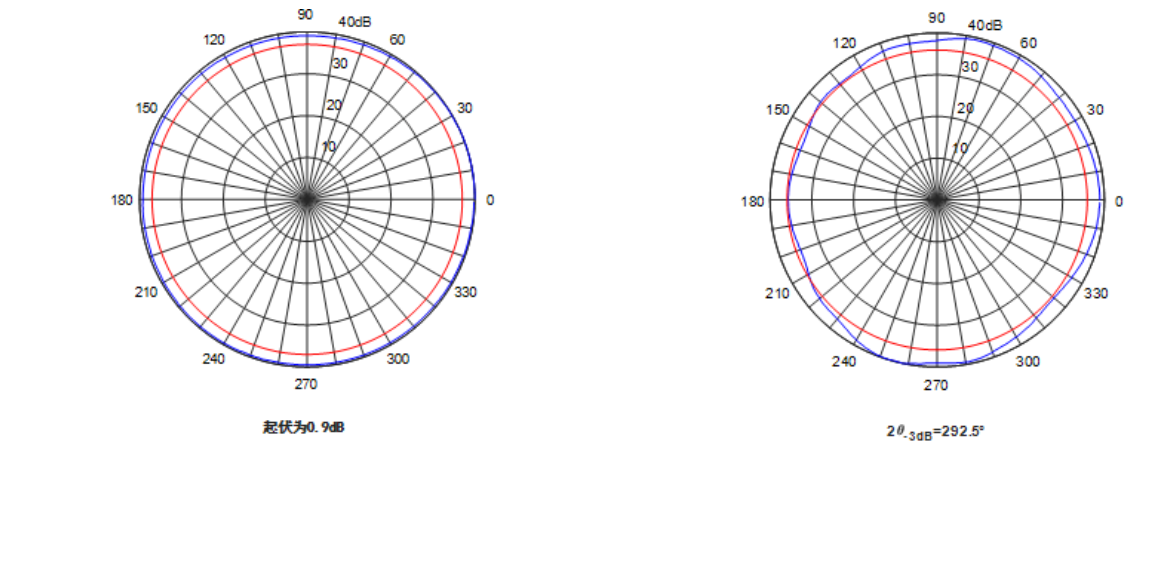

Acoustic performance curve:
