HSSM-10
HSSM-10

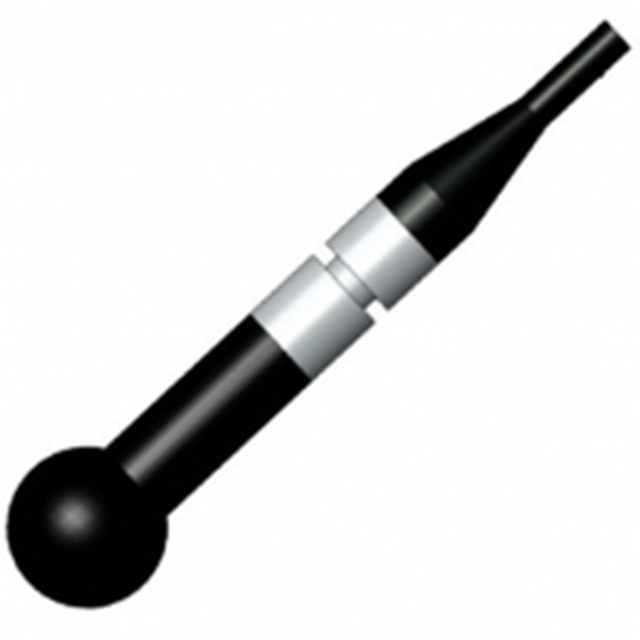

High Frequency 1kHz-200kHz Robust Compact Spherical Hydrophone Transducer Arrays
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ring (FFR) transducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
1. The standard hydrophone has the following characteristics:
1. Good directionality. The hydrophone has no directivity horizontally, and no directivity within 240° of the vertical plane.
2. The frequency range is very wide, and it can be used for high frequency measurement above 200KHz.
3. Low sensitivity, suitable for high-intensity sound field measurement.
2. The main technical indicators of standard hydrophones:
Operating frequency range: 1kHz～200kHz
Linear frequency range: 1kHz～100kHz
Low frequency receiving sensitivity: -210dB
Horizontal directivity: ±2dB (200kHz)
Vertical directivity: ±2.5dB (200kHz, 240° range)
Maximum working depth: 300 meters

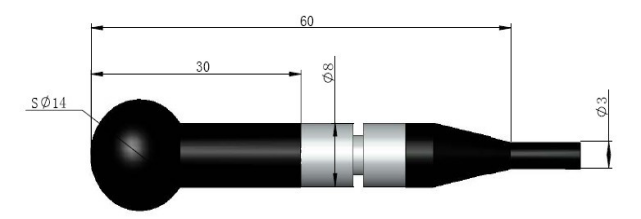

3. Dimensions:
