KDSFHNQ12-20K
KDSFHNQ12-20K

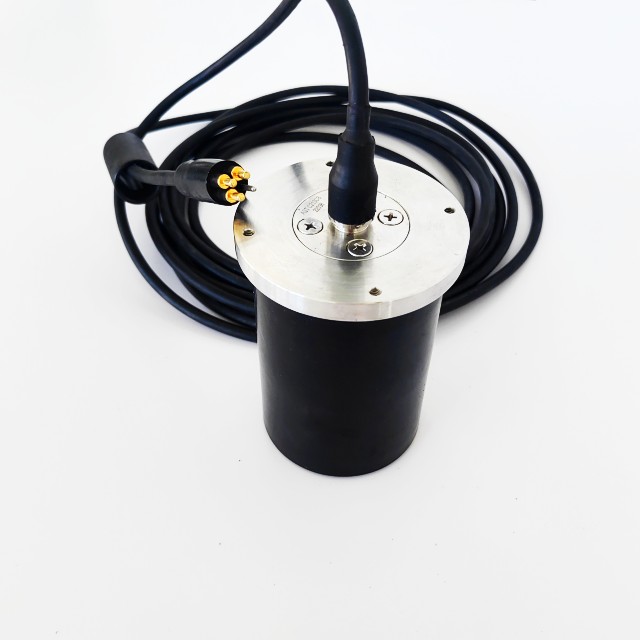

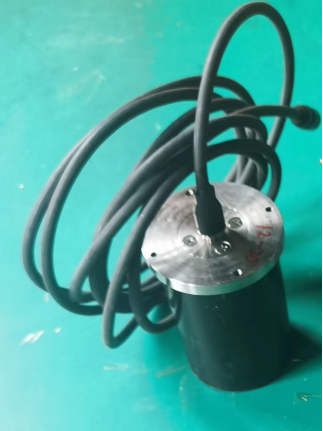

Custom 15Khz-20khz Underwater Acoustic Transducer with Wide Bandwidth
We can produce transmitting acoustic transducers ranging from directional to omnidirectional, and from shallow water to 10,000 meters deep. You flexibly choose types such as spheres, curved surfaces and overflow rings. We recommend the selection of standardized series of shelf products with short supply cycles and high performance. We also accept customization services with customers’ design, providing customers with transmitting acoustic transducers that perfectly match the application environment.
Specification :
Model | KDSFHNQ12-20K |
|
Working Band | 12 kHz ~20kHz | |
transmitting voltage response | ≥140dB@14K-18K | |
Receiving sensitivity | ≥-198dB | |
Directivity | Horizontal omnidirectional | |
Sound Source Level (SL) | ≥193dB | |
Working depth | 500M | |
Cable Specification | Φ6mm Shielded cable (custom plug sockets) | |
Weight | 1.68kg | |
| ||
