KDSFHNQ5-12K
KDSFHNQ5-12K

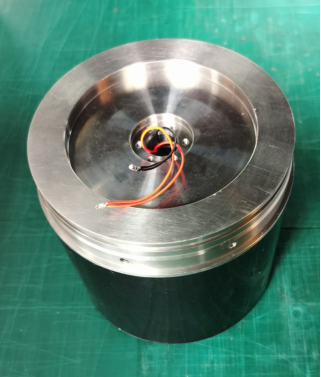

Custom 5Khz-12khz Wide-band Acoustic Transducers for Sonar
We can produce transmitting acoustic transducers ranging from directional to omnidirectional, and from shallow water to 10,000 meters deep. You flexibly choose types such as spheres, curved surfaces and overflow rings. We recommend the selection of standardized series of shelf products with short supply cycles and high performance. We also accept customization services with customers’ design, providing customers with transmitting acoustic transducers that perfectly match the application environment.
Specification :
Model | KDSFHNQ5-12K |
|
Working Band | 5 kHz ~12kHz | |
transmitting voltage response | ＞145dB@Max | |
Receiving sensitivity | ＞-180dB@Max | |
Directivity | Horizontal omnidirectional | |
Sound Source Level (SL) | ≥195dB | |
Working depth | 450M-3000M-6000M variety of specifications series | |
Cable Specification | Load-bearing cable (customized specifications） | |
Weight | 8.46kg | |
| ||
