SFHNQZ20-30K
SFHNQZ20-30K

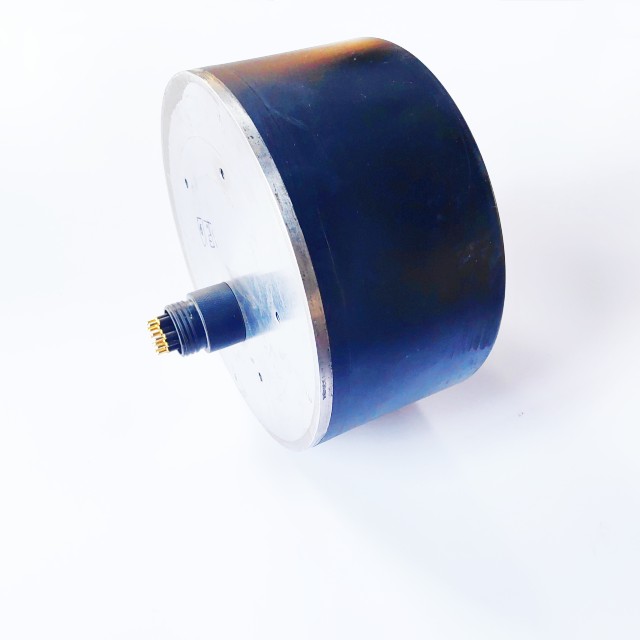

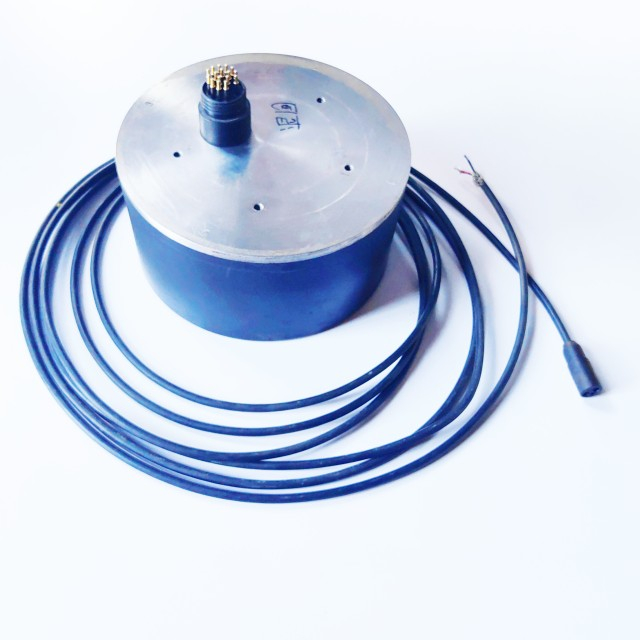

Custom 20Khz-30khz Receiving Transmitting Wide Bandwidth Acoustic Transducers Array
We can produce transmitting acoustic transducers ranging from directional to omnidirectional, and from shallow water to 10,000 meters deep. You flexibly choose types such as spheres, curved surfaces and overflow rings. We recommend the selection of standardized series of shelf products with short supply cycles and high performance. We also accept customization services with customers’ design, providing customers with transmitting acoustic transducers that perfectly match the application environment.
Specification :
Model | SFHNQZ20-30K |
|
Working Band | 20 kHz ~30kHz | |
transmitting voltage response | ≥135dB | |
Receiving sensitivity | ≥-196dB（The 4-element receiving array fluctuates in band≤3dB） | |
Directivity | Horizontal omnidirectional | |
Sound Source Level (SL) | ≥193dB | |
Working depth | 500米（Customizable depth specifications） | |
Cable Specification | Φ12mm cable (customized specifications） | |
Weight | 1.68kg | |
| ||
