HSRHS-5
HSRHC-5

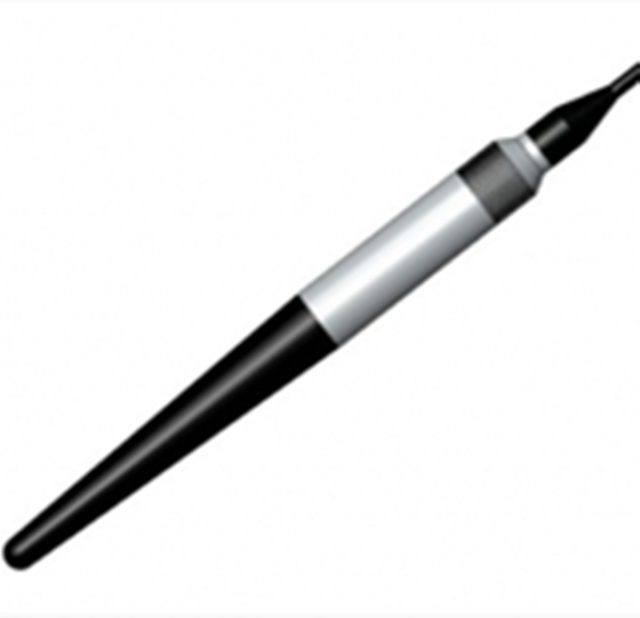

10khz-500khz High Frequency Hydrophone Acoustic Transducer for Sound Field Measurement
HSRHS-5 broadband hydrophone is also called broadband hydroacoustic sensor, broadband receiving acoustic transducer, with a wide frequency range, can be used for high-frequency measurement above 400KHz; it has good directivity and horizontal non-directionality; low sensitivity, suitable for the measurement of high-intensity sound fields, etc.
1. The HSRHS-5 standard hydrophone has the following characteristics:
1. The directionality is good, the level of the hydrophone has no directivity.
2. The frequency range is very wide, and it can be used for high frequency measurement above 400KHz.
3. Low sensitivity, suitable for high-intensity sound field measurement.
The main technical indicators of the HSRHS-5 standard hydrophone:
Operating frequency range: 10kHz～500kHz
Linear frequency range: 10kHz～200kHz
Low frequency receiving sensitivity: -220dB
Maximum working depth: 300 meters
Cable length: 5 meters
