SLHNQ5K-20K
SLHNQ5K-20K

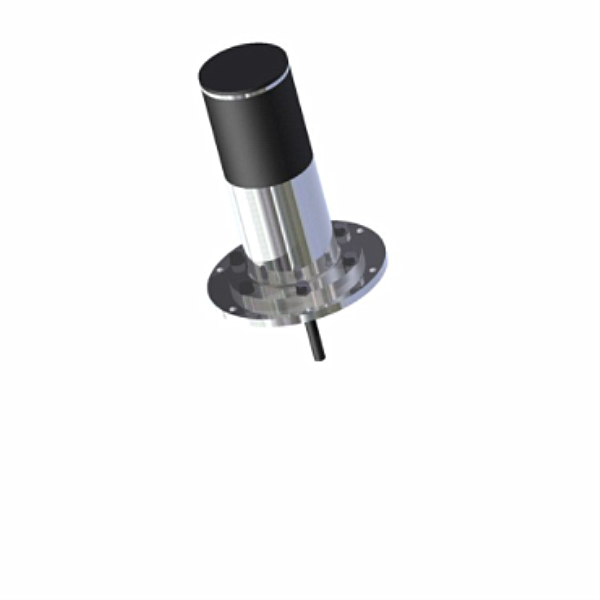

5kHz-20kHz Vector Hydrophone Acoustic Vector Sensor Arrays
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ring (FFR) transducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
Specification:
Model | SLHNQ5K-20K |
|
Working Band | 5kHz~20kHz | |
Receiving Sensitivity | ≥-204dB | |
Static Capacitance | Each channel ≥12000pF | |
Directivity | It has the characteristics of dipole directivity. Resolution kd≥18dB; Maximum dipole sensitivity asymmetry Kmax≤3dB; Orthogonality deviation ≤10°. | |
Working depth | 300m | |
Cable Specification | Φ7mm10 Core shielded cable (optional) | |
| ||
