GY0.1Hz-55K
GY0.1Hz-55K

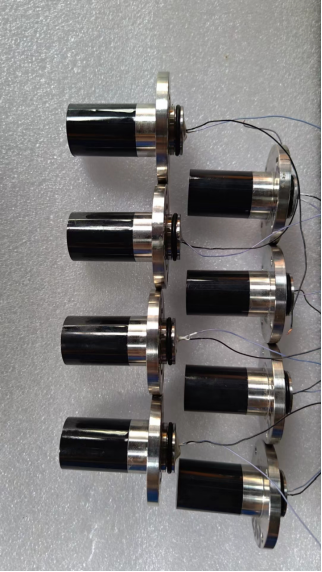

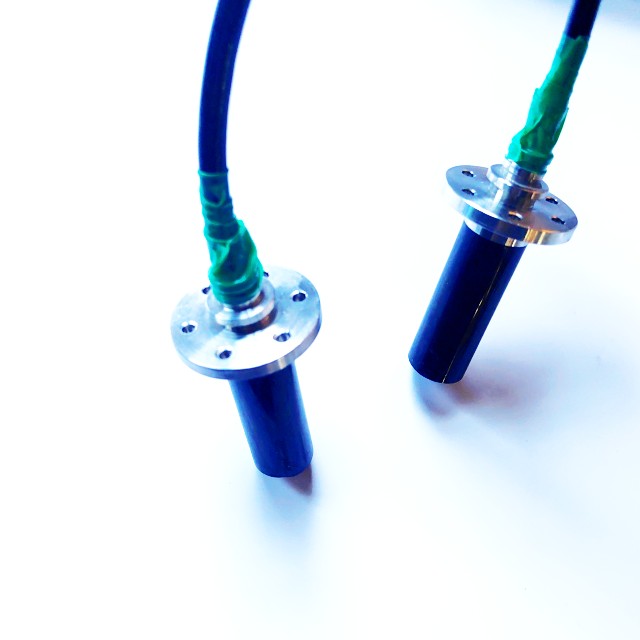

Stock 0.1hz-55khz Receiving Hydrophone Underwater Acoustic Transducer
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ring (FFR) transducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
Specification:
Model | GY0.1Hz-55K |
|
Working Band | 0.1Hz~55kHz | |
Receiving Sensitivity | ≥-170dB（if Without amplifier≥-194dB） | |
Static Capacitance | 600（1±10%）pF | |
Working depth | 500M,2500M and other specifications | |
Cable Specification | High voltage cable with shield (optional) | |
| ||
