Measurement content:

Measurement Content and Requirements

1. Frequency Band: 10Hz～50kHz;

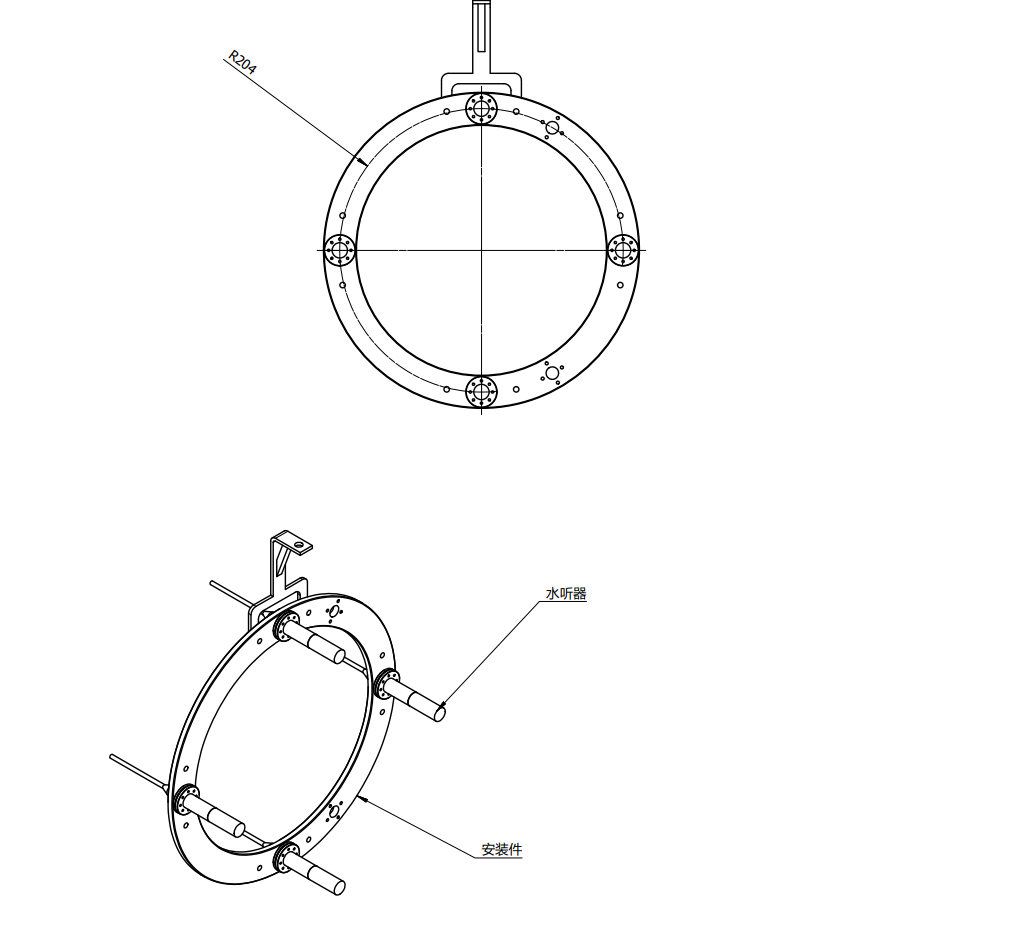

 2. Directivity: Omnidirectional;

 3. Sensitivity: -194dB～-191dB;

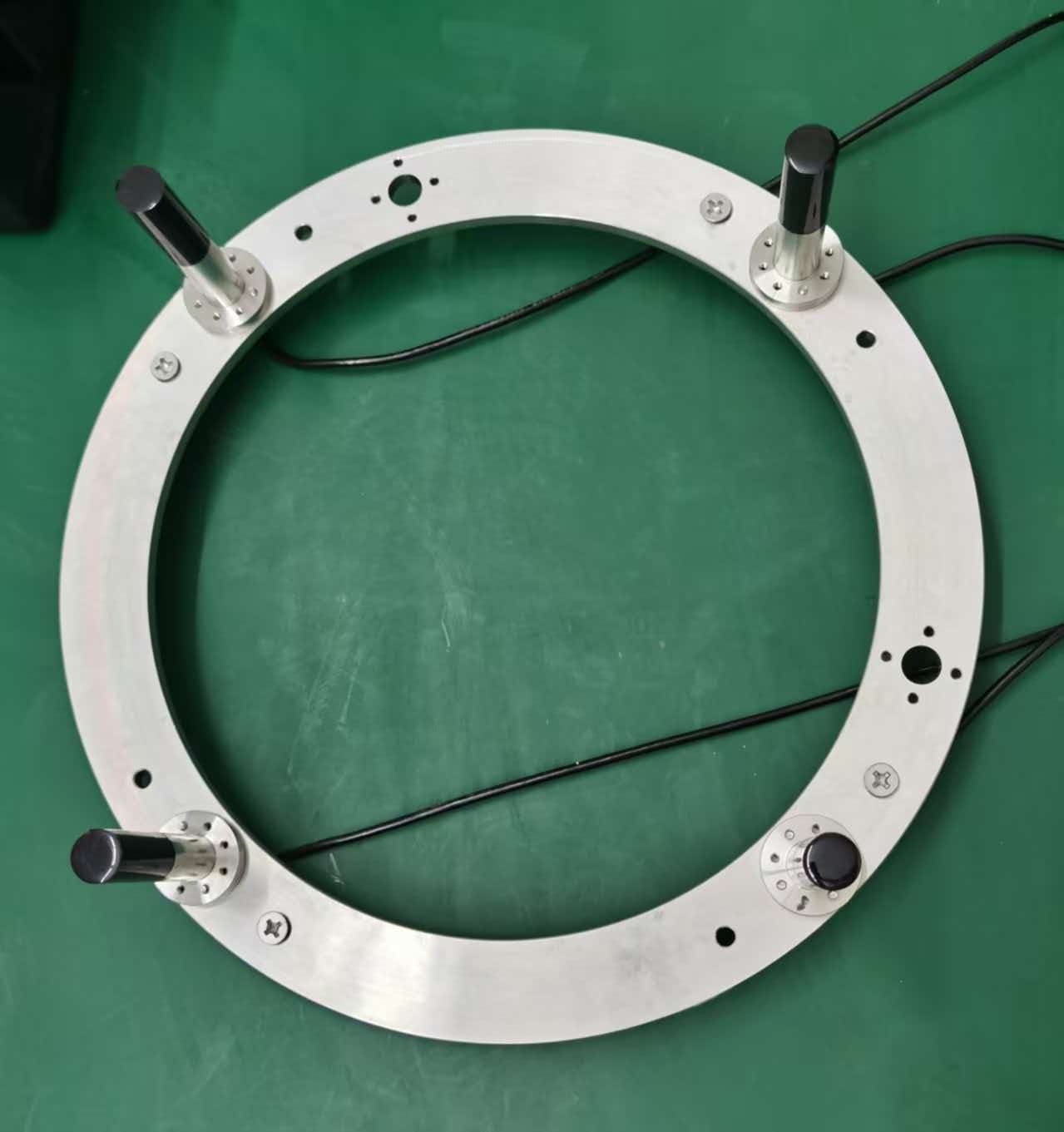

4. Measurements are performed using both three-element and four-elem ent arrays, with at least three azimuth angles of data for each array, inclu ding directivity and sensitivity at different frequencies within the frequency band.

 IV. Measurement Method

 1. Measurement conditions: temperature 20 , air temperature 56%.

2. Measurement standard: GB/T7965-2002 "Measurement of Acoustic Underwater Transducers".

3. Measuring instruments and equipment:

Dual-channel filter

L2 power amplifier

BK145 standard hydrophone

Automatic measurement system for underwater acoustic transducers

Current and voltage sampler

Impedance analyze

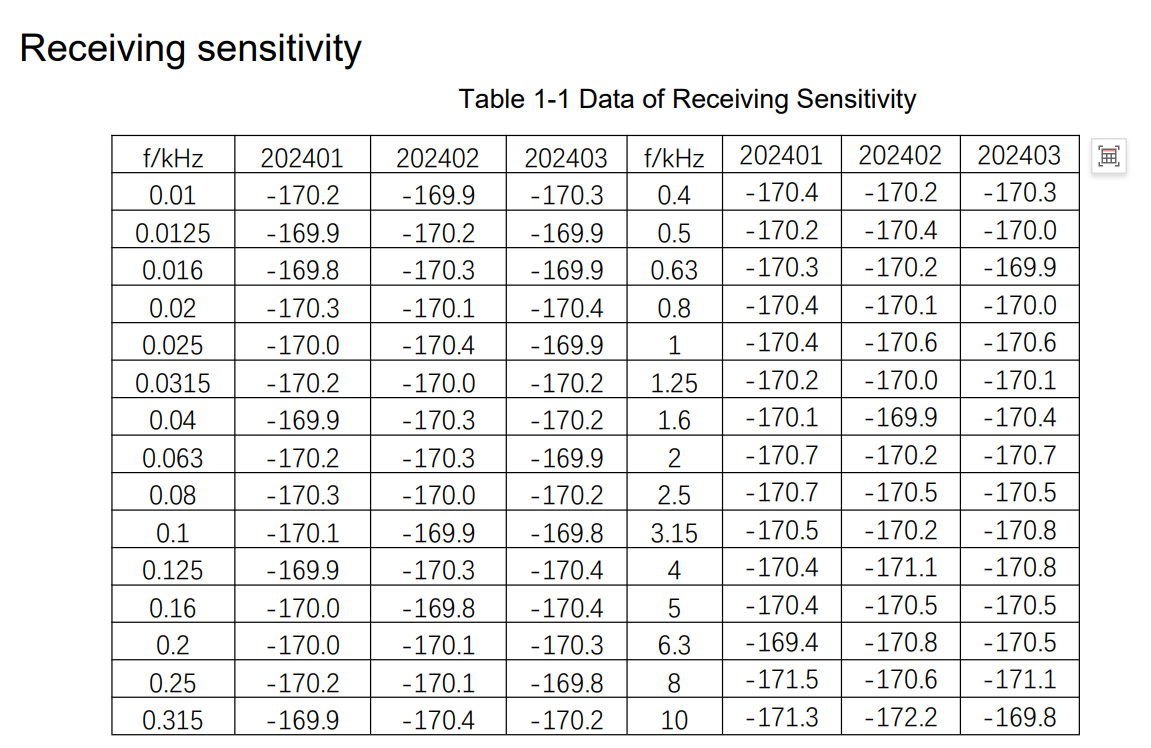

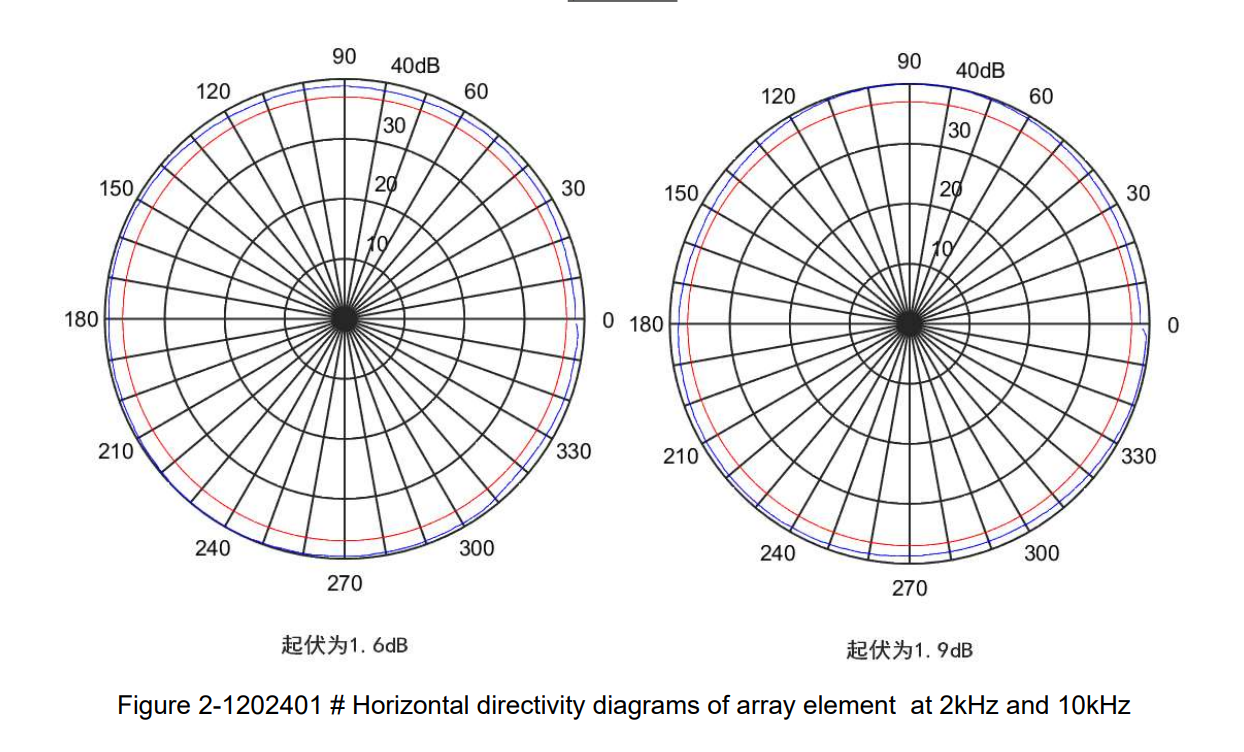

Horizontal Directionality

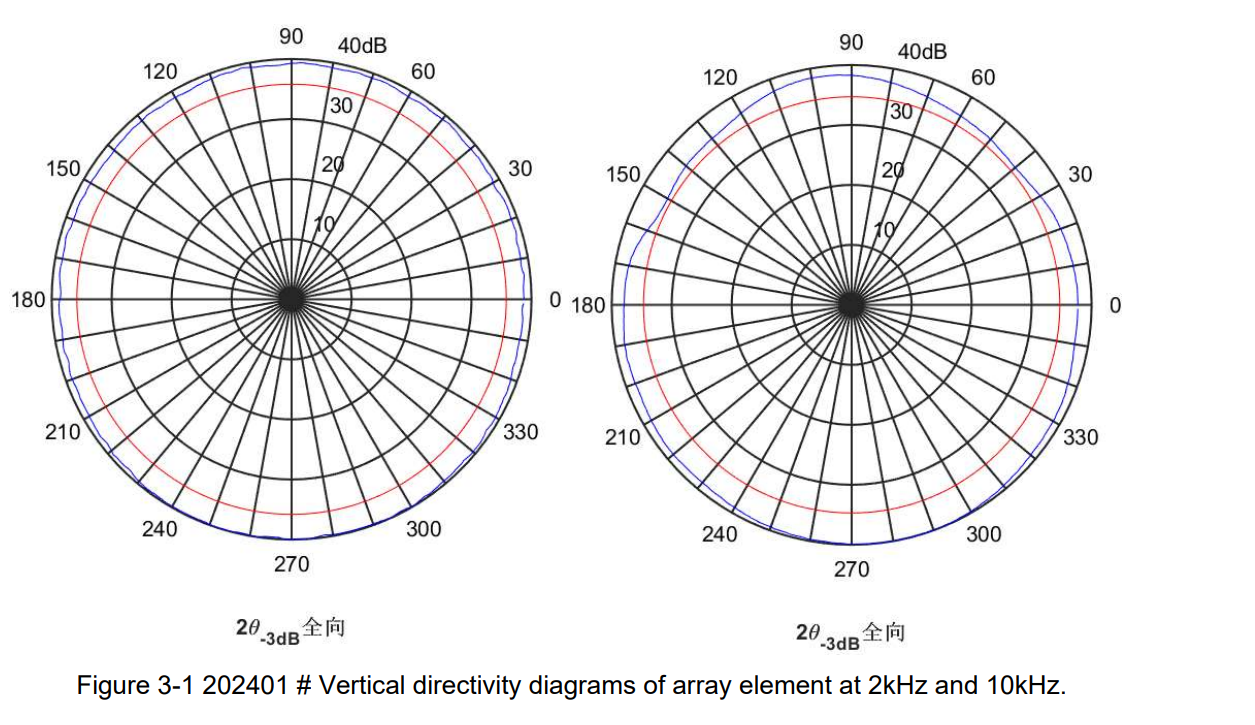

Vertical Directionality

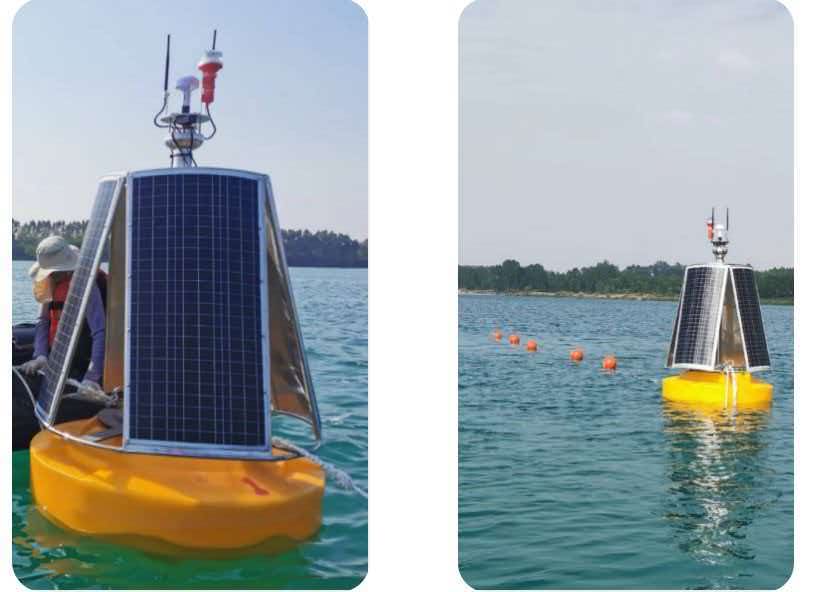

Application Image
