GY0.1Hz-10K
GY0.1Hz-10K

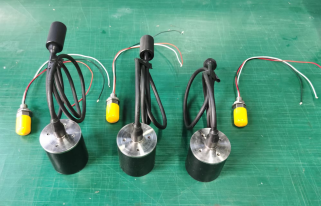

0.1hz-10khz Receiving Hydrophone Transducer for 6000 Depth
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ring (FFR) transducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
Specification:
Model | GY0.1Hz-10K |
|
Working Band | 0.1Hz~10kHz | |
Receiving Sensitivity | ≥-190dB | |
Static Capacitance | 4500（1±10%）pF | |

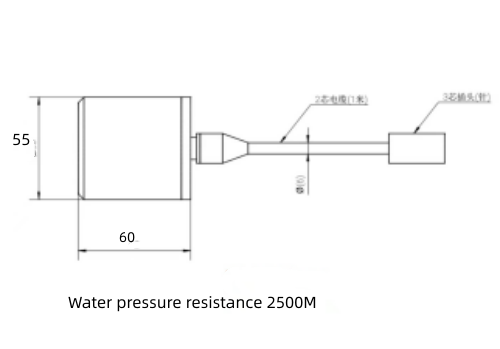

Working depth | 2500M or 6000M | |
Cable Specification | Φ6mm High voltage cable with shield (optional) | |
| ||
