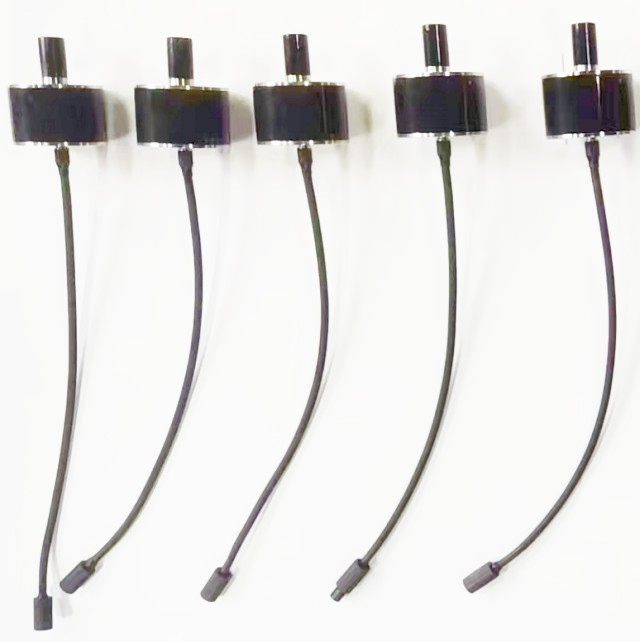

Custom Composite Vector Hydrophone And Scalar Hydrophone

The working frequency band of the vector channel is 40Hz-2.5kHz.

The working frequency band of the scalar channel is 20Hz～40kHz.

Availability:

Quantity:



Inquire Add to Basket

Model:
BSL-20
Code:
BSL-20

composite vector and scalar hydrophone vector and scalar hydrophone composite standard vector hydrophone composite hydrophone of sound pressure composite hydrophone of sound pressure gradient vector hydrophone vibration velocity vector hydrophone acoustic vector sensor vector hydrophone arrays vector hydrophone differential pressure low frequency vector hydrophone sensor

Product Description

Custom Composite Vector Hydrophone And Scalar Hydrophone

Specification:

Measurement content

1. Vector channel

Working frequency band

The working frequency band of the vector channel is 40Hz-2.5kHz.

Receiving sensitivity

Measure the receiving sensitivity of each channel, of which the 1kHz should be higher than -200dB.

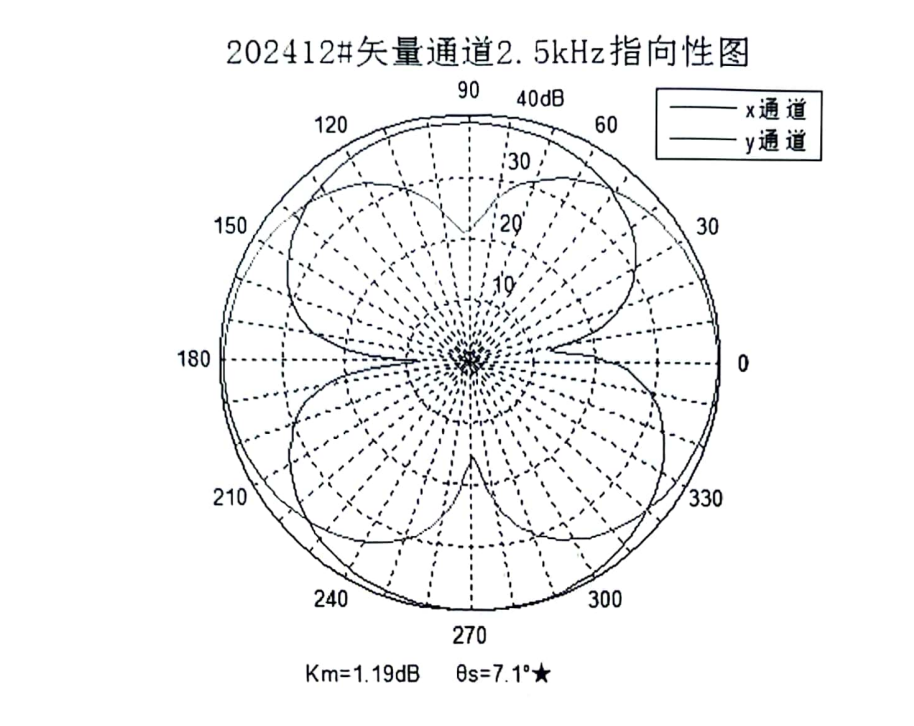

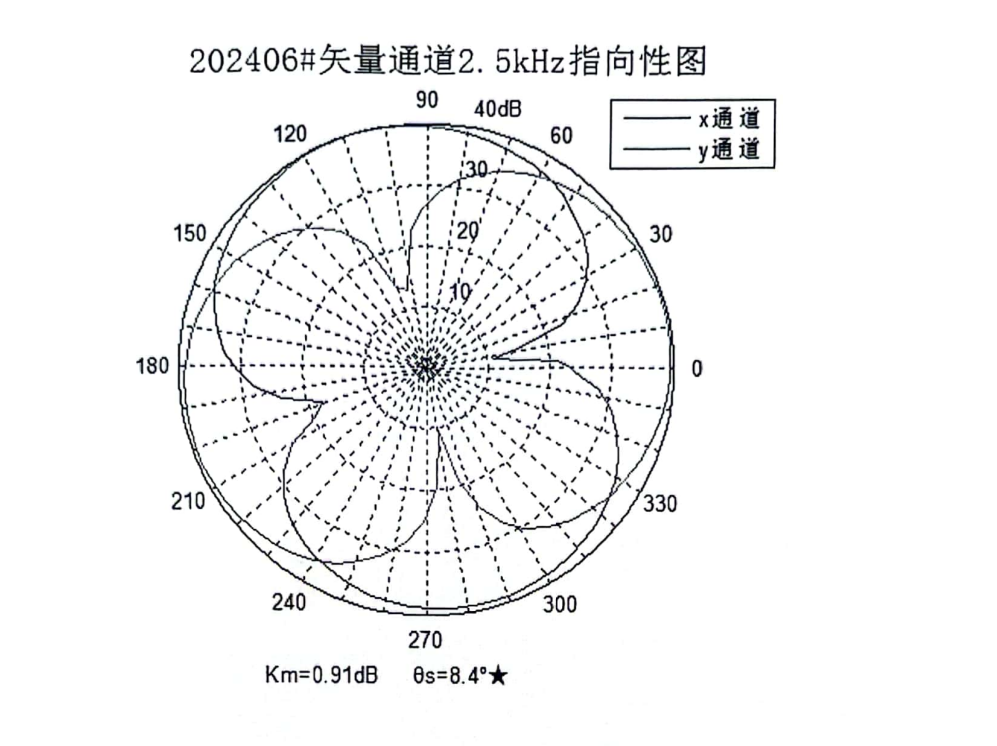

Directivity

The maximum dipole sensitivity asymmetry Kr≤ max3dB; orthogonality deviation ≤10°, measurement frequency point 2.5kHz.

2. Scalar channel

Working frequency band

The working frequency band of the scalar channel is 20Hz～40kHz.

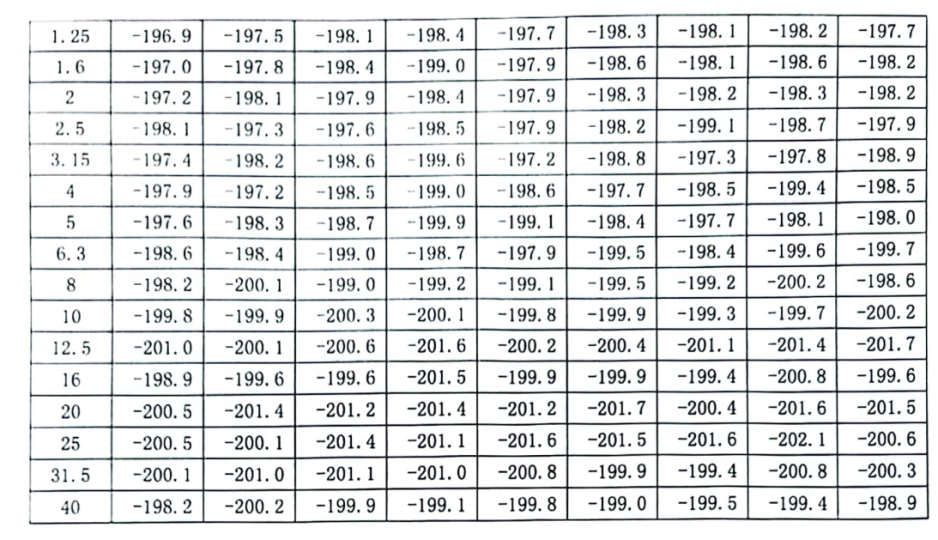

Receiving sensitivity

The receiving sensitivity within the working frequency band should be higher than -205dB, and the fluctuation within the octave should not exceed 2dB.

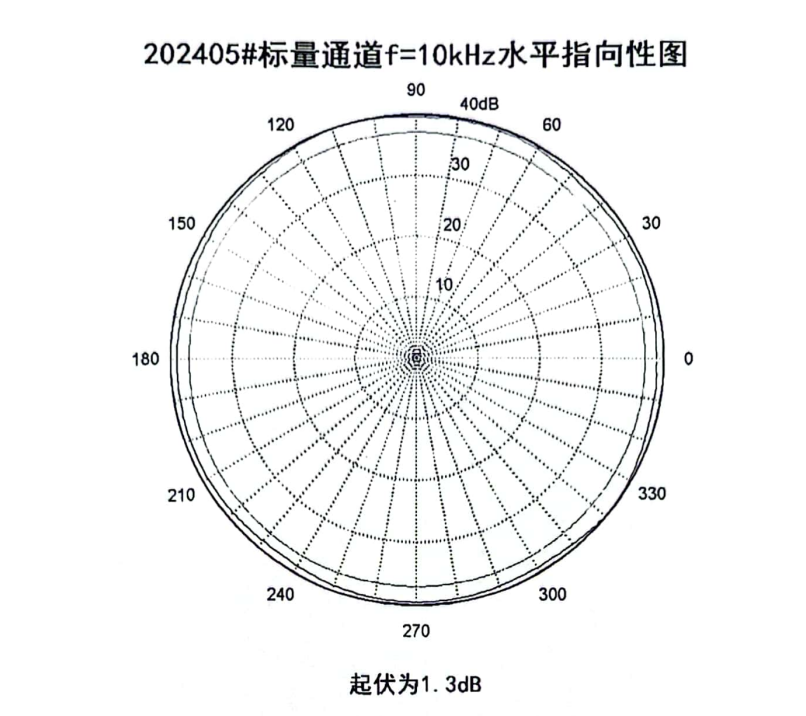

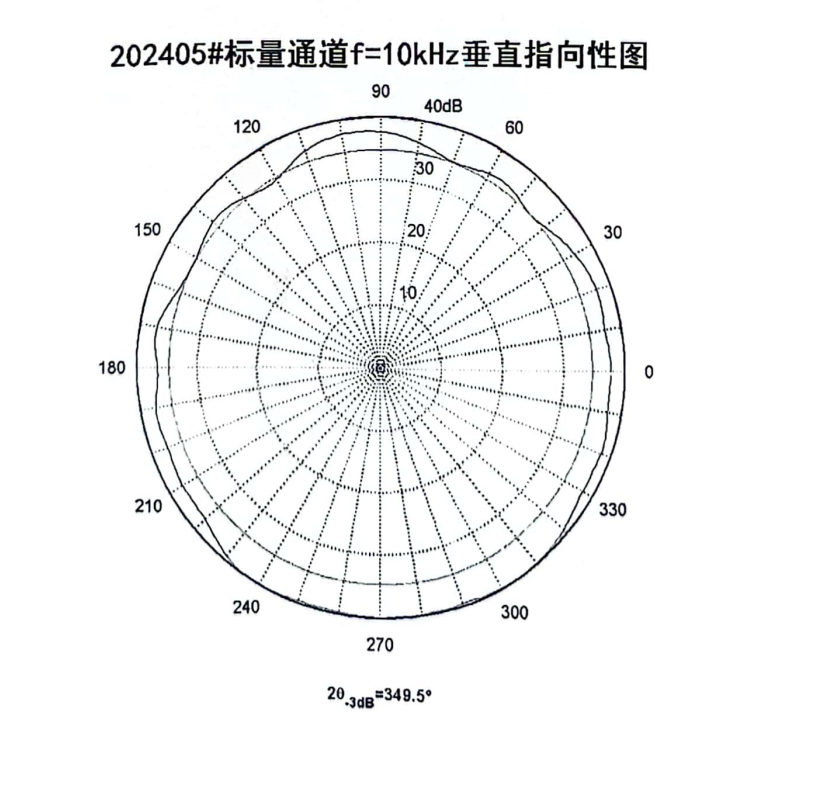

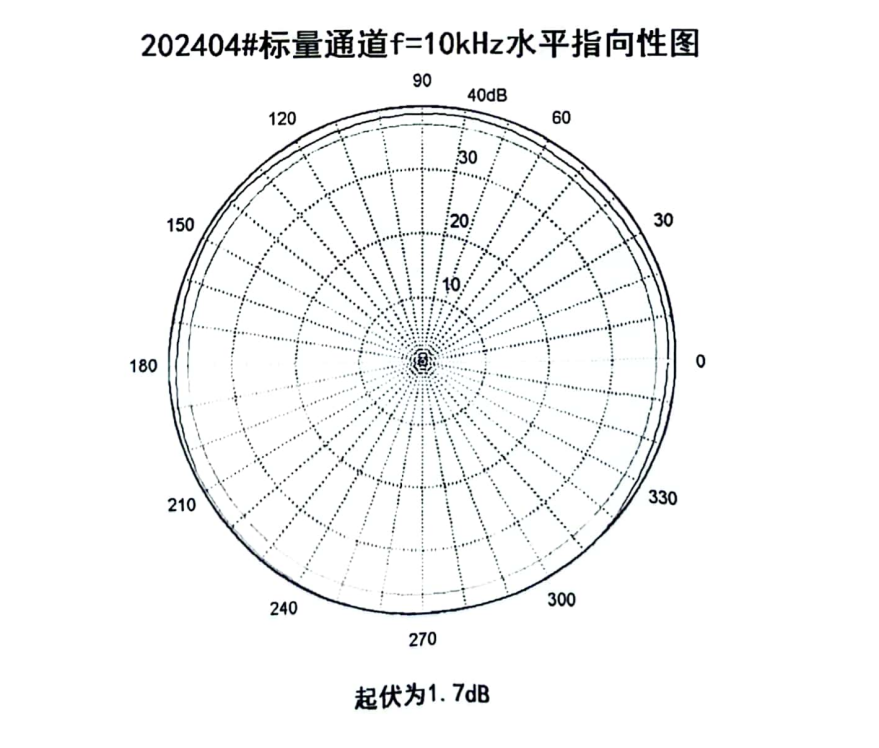

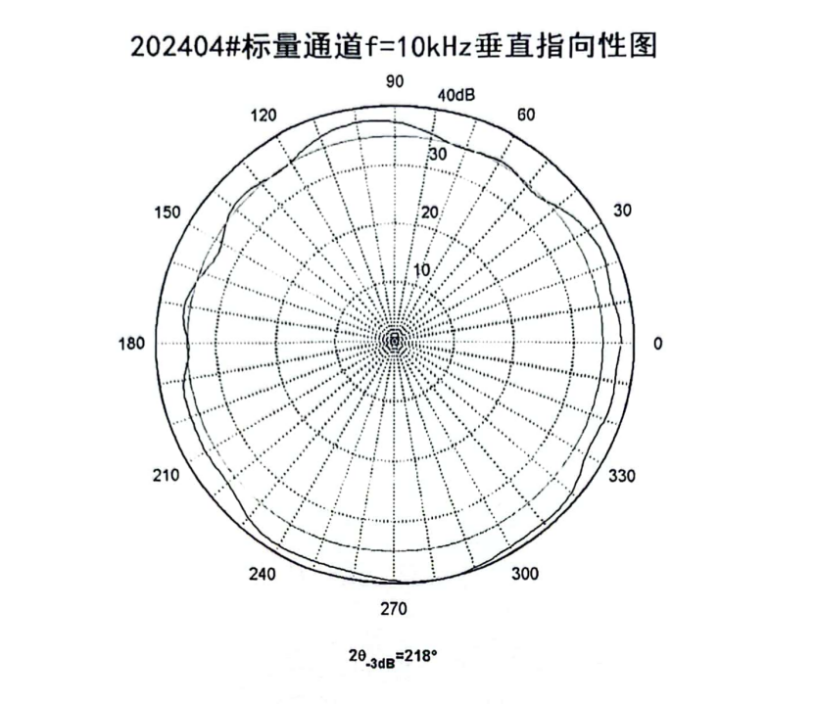

3.Directivity

The horizontal directivity fluctuation should not exceed 2dB, and the -3dB vertical directivity opening angle is greater than 180°, and the measurement frequency point is 10dB.

4. Hydrostatic pressure test

After the hydrophone is subjected to 2MPa/1h, OMPa/1h, 2MPa/1h.OMPa/1h hydrostatic pressure test, the junction resistance of each channel should be greater than 100Ω.

Measurement data

Vector channel

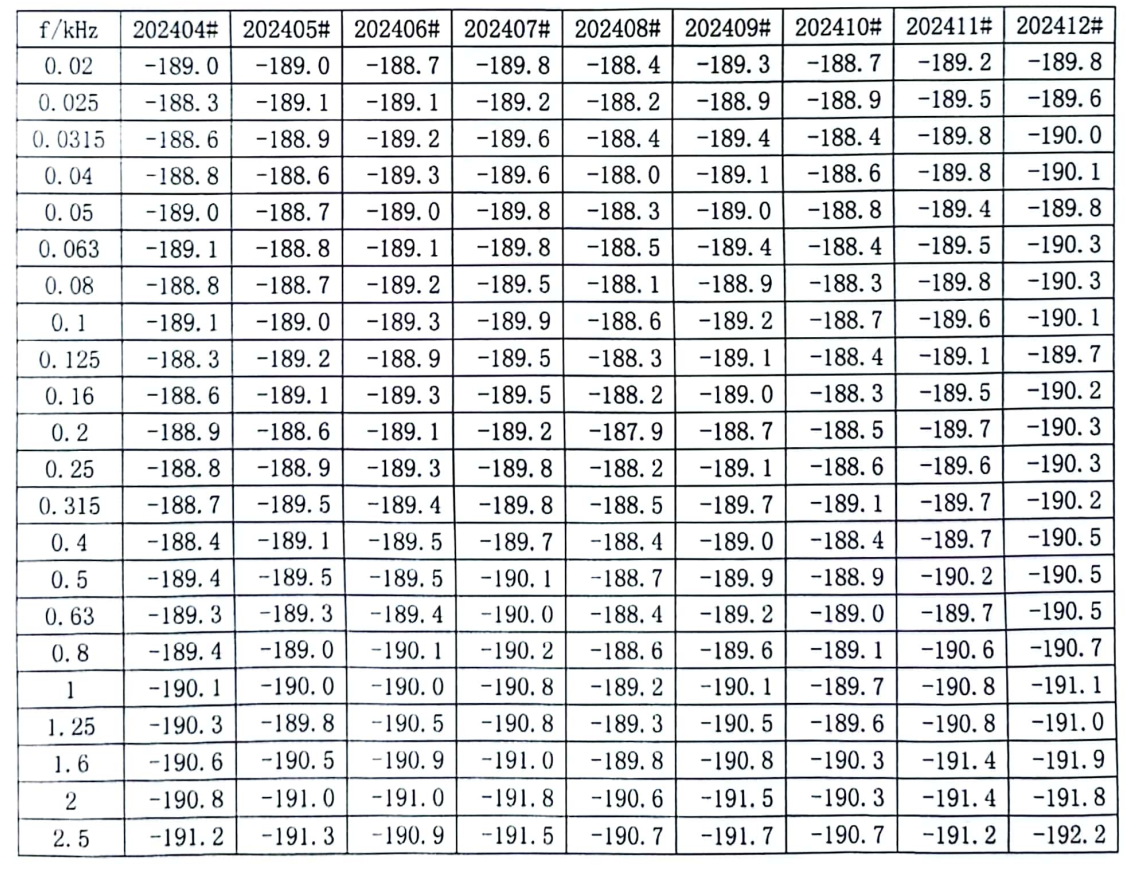

1. Receiving sensitivity:

M_ALT`L6WQSIC5L_8
