EWSL40-1KⅠ
EWSL40-1KⅠ

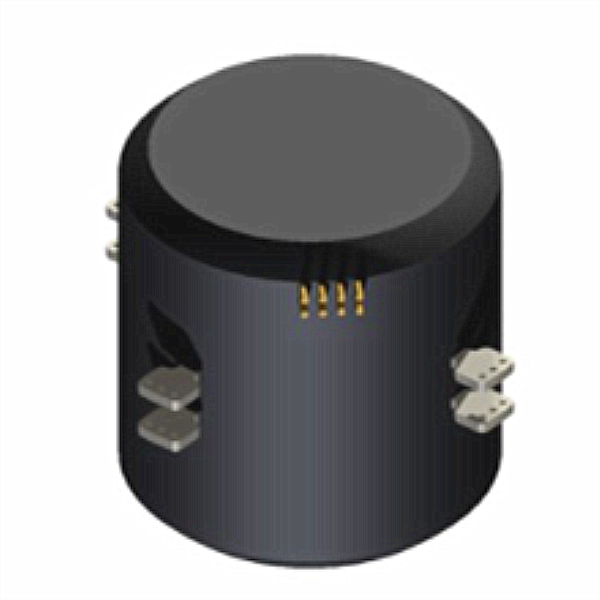

Custom Three-dimensional 3D Vector Hydrophone Sensor for Bearing of Sound Sources
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ringCustom Two-dimensional Vector Hydrophone Sensor for Acoustic Sourcesansducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
Specification:
Model | EWSL40-1KⅠ |
|
Working Band | 40Hz~1000Hz | |
Receiving Sensitivity | 1000Hz: Vibration speed sensitivity: ≥-193dB Sound pressure sensitivity ≥-194dB | |
Static Capacitance | ≥4700pF | |
Directivity | Vibration speed channel: directivity has cosφ characteristics The depth of pits in the same channel ≥20dB; Maximum deviation within the same channel≤1.0dB; Sound pressure channel: horizontal direction without directivity | |
Working depth | 300m | |
Weight | 180g | |
| ||
