EWSL40-5K
EWSL40-5K

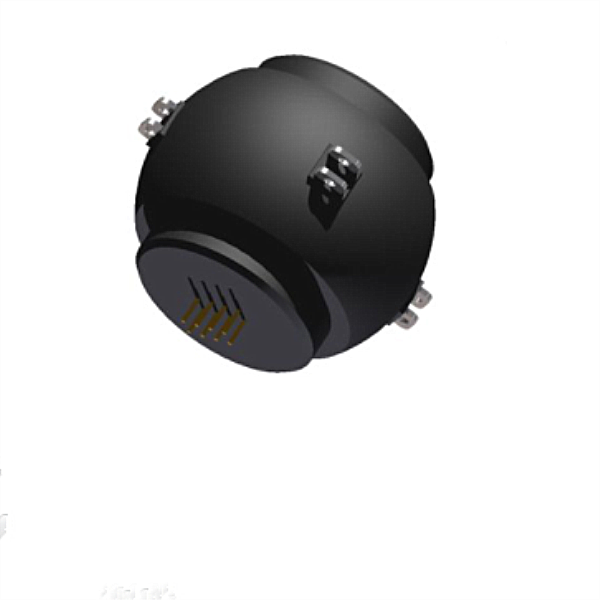

Custom Two-dimensional 2D Vector Hydrophone Sensor Acoustic Vector Sensor
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ringCustom Two-dimensional Vector Hydrophone Sensor for Acoustic Sourcesansducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
Specification:
Model | EWSL40-5K |
|
Working Band | 40Hz~5000Hz | |
Receiving Sensitivity | 1000Hz: Vibration speed sensitivity: ≥-195dB Sound pressure sensitivity: ≥-195dB | |
Static Capacitance | ≥4700pF | |
Directivity | Vibration speed channel: directivity has cosφ characteristics. The depth of pits in the same channel ≥20dB; Maximum deviation within the same channel ≤ 3dB; Sound pressure channel: No directivity in the horizontal direction. | |
Working depth | 300m | |
Weight | 235g | |
| ||
