EWSL40-300
EWSL40-300

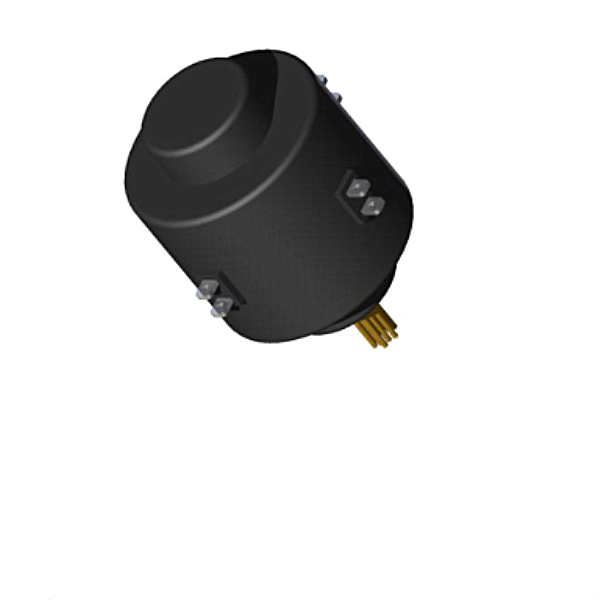

Custom Two-dimensional 2D Vector Sensor Arrays for Underwater Acoustics
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ringCustom Two-dimensional Vector Hydrophone Sensor for Acoustic Sourcesansducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
Specification:
Model | EWSL40-300 |
|
Working Band | 40Hz~300Hz | |
Receiving Sensitivity | At 1000Hz: vibration speed sensitivity ≥ - 185db Sound pressure sensitivity ≥ - 185db | |
Static Capacitance | Vibration velocity channel: > 14000pf Sound pressure channel: > 9500 PF | |
Directivity | Vibration velocity channel: directivity has cos φ characteristic. The depth of concave point in the same channel is more than or equal to 20dB; The maximum deviation in the same channel is less than 3dB; Sound pressure channel: no directivity in horizontal direction. | |
Working depth | 300m | |
Weight | 1.26kg | |
| ||
