EWSL20-1.5K
EWSL20-1.5K

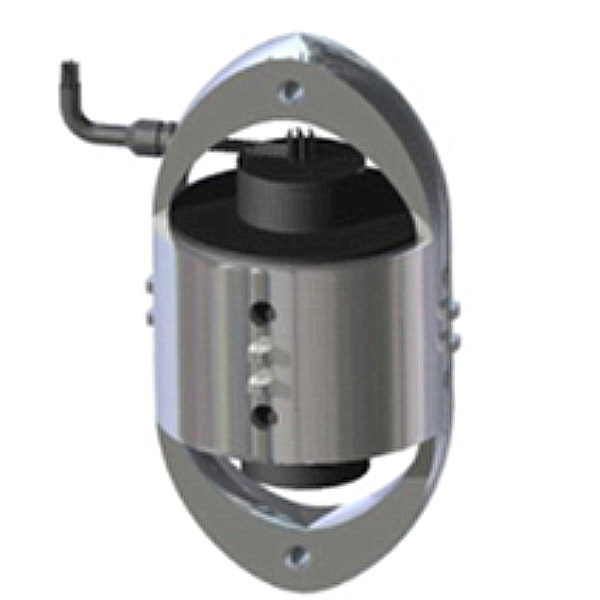

Custom Two-dimensional Vector Hydrophone Sensor for Acoustic Sources
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ringCustom Two-dimensional Vector Hydrophone Sensor for Acoustic Sourcesansducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
Specification:
Model | EWSL20-1.5K |
|
Working Band | 100Hz~1500Hz | |
Receiving Sensitivity | 1000Hz: Vector sensitivity MSl≥-193dB Sound pressure sensitivity MpL≥-190dB | |
Static Capacitance | Vector channel: >14000pF Sound pressure channel: >9500 pF | |
Directivity | It has the characteristics of dipole directivity. Resolution kd≥20dB; Maximum dipole sensitivity asymmetry Kmax≤3dB; Sound pressure channel: No directivity in the horizontal direction. | |
Working depth | 300m | |
Cable Specification | Φ7mm10 Core shielded cable (optional) | |
Weight | About 5kg | |
| ||
