SLHNQ100-2KⅡ
SLHNQ100-2KⅡ

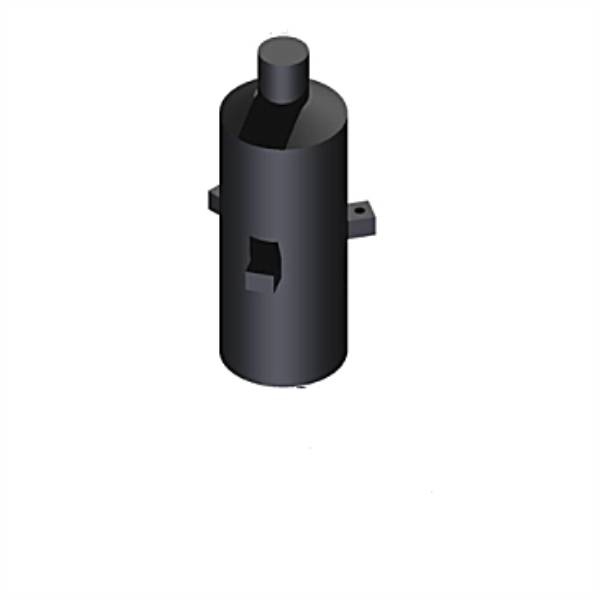

Custom Vector Hydrophone Arrays Acoustic Vector Sensors for Underwater Projectors
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ringCustom Two-dimensional Vector Hydrophone Sensor for Acoustic Sourcesansducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
Specification:
Model | SLHNQ100-2KⅡ |
|
Working Band | 100Hz~2000Hz | |
Receiving Sensitivity | At 1000Hz: vibration velocity sensitivity MVL ≥ - 200db Sound pressure sensitivity MPL ≥ - 200db | |
Directivity | It has dipole directivity. The resolution KD ≥ 13dB; The maximum dipole sensitivity asymmetry kmax ≤ 5dB; | |
Working depth | 300m | |
Cable Specification | Φ7mm10 Core shielded cable (optional) | |
Weight
| 600g | |
| ||
