1Hz-140khz Wide Frequency Low Noise Hydrophone with Internal Preamplifiers

     1Hz-140khz Wide Frequency Low Noise Hydrophone with Internal Preamplifiers

We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.

Specification:

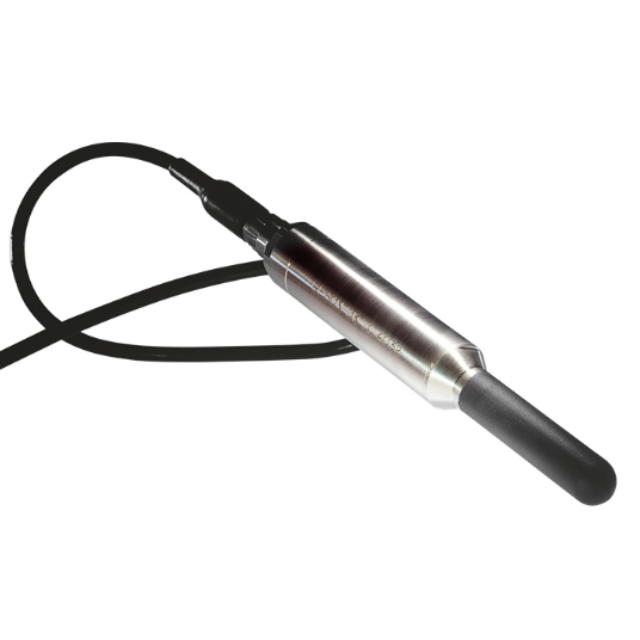

The PH4032 general purpose hydrophone offers a high sensitivity, low noise and a flat frequency response over a wide frequency range. The high sensitivity and acoustic characteristics makes PH4032 capable of producing absolute sound measurements and detecting ,The PH4032 incorporates an electrostatically shielded highly sensitive piezoelectric element connected to an integral low-noise 10dB preamplifier. The PH4032 preamplifier is capable of driving long cables of more than 1.000 meters, and the preamplifier features an insert calibration facility.

Key Features:

Low noise performance

High sensitivity

Wide frequency range

Flat frequency response

Long term stability

Individually calibrated
