500hz-40khz High Sensitivity Low Noise Hydrophone with Preamplifiers Omnidirectional Reference Projector

     500hz-40khz High Sensitivity Low Noise Hydrophone with Preamplifiers Omnidirectional Reference Projector

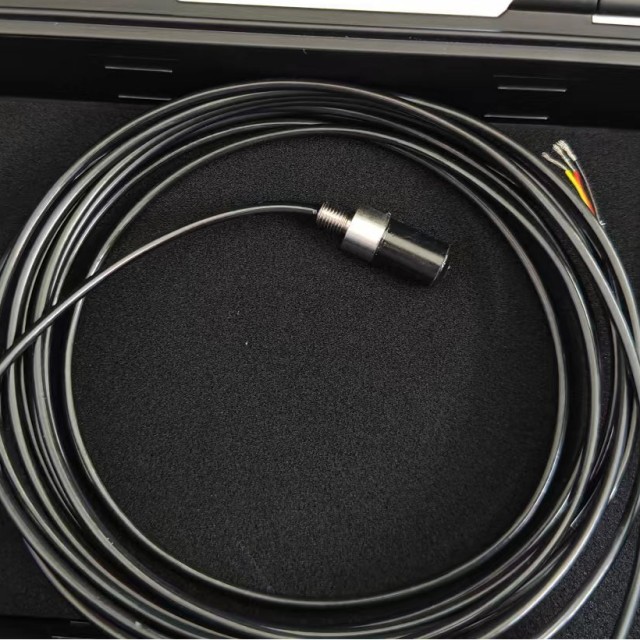

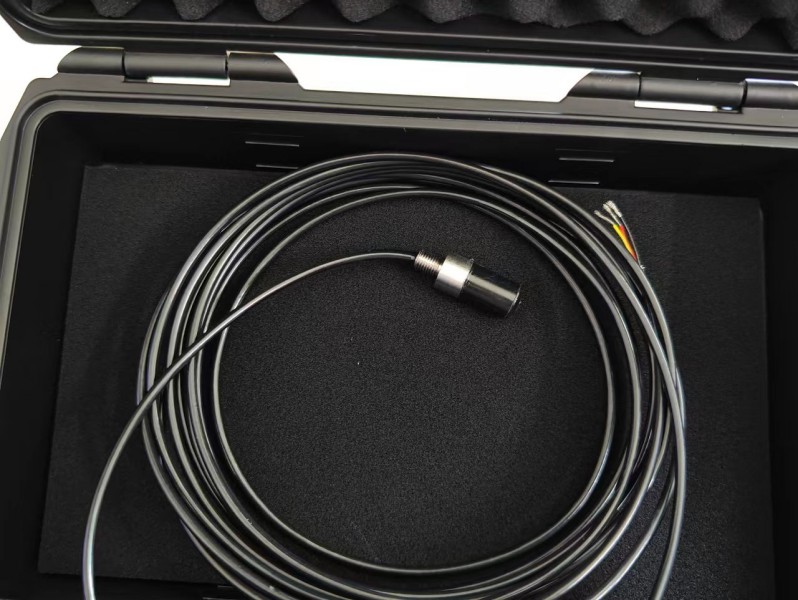

The hydrophone STQ-40 offers a usable frequency range of 500Hz to 40kHz and a high sensitivity relative to its size. It further more provides uniform omnidirectional sensitivities in both horizontal and vertical planes up to high frequencies.The hydrophone STQ-40 incorporates an electrostatically shielded highly sensitive piezoelectric ceramics connected to an integral low-noise 40dB preamplifier.The hydrophone STQ-40 is an excellent transducer for making absolute sound measurements and calibrations within a broad frequency range. It can also be applied as an omnidirectional reference projector.The overall characteristics makes hydrophone STQ-40 extremely applicable for laboratory as well as industrial uses.

Specification:

Usable Frequency range: 500Hz to 40kHz

Receiving Sensitivity: -185dB ±3dB re 1V/μPa

Preamplifier gain: 40dB

Supply voltage: 5 to 18VDC

Operating depth: 100m

Survival depth: 200m

Operating temperature range: -2°C to +80°C

Storage temperature range: -40°C to +80°C

Cable length: Standard length 5m Optional cable lengths available on request

Key Features:

High sensitivity

Omnidirectional to high frequencies

Broad banded

Individually calibrated
