HC50A
HC50A

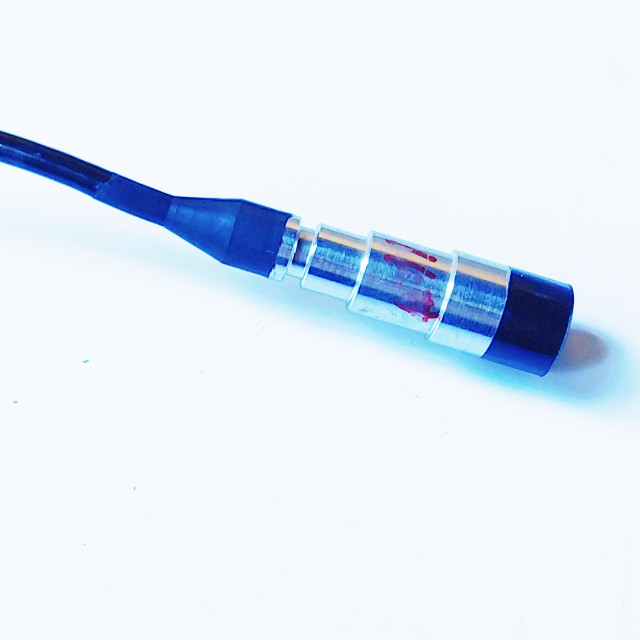

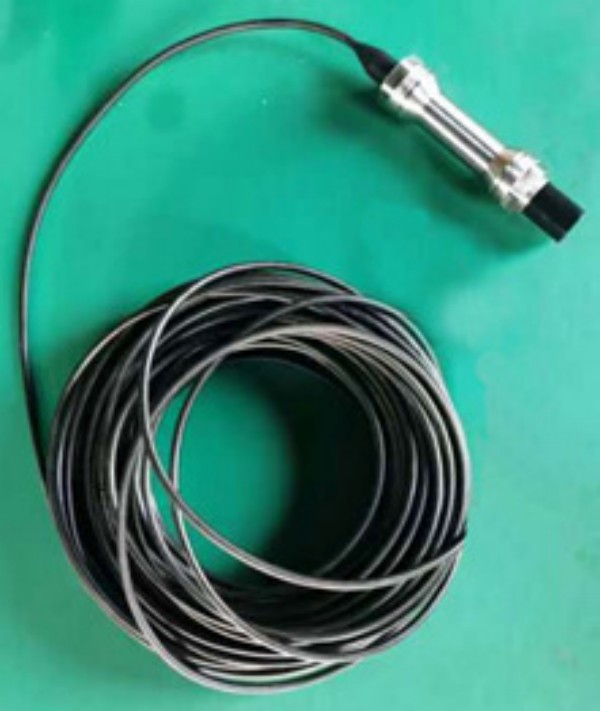

20Hz-50kHz Receiving Low-noise Hydrophone with Preamplifier
We manufactures a broad range of acoustic transducers (low-frequency high-power transducers ,high-frequency deep-water transducers, "Tonpilz" type transducers, The free-flooded ring (FFR) transducer , The free-flooded ring (FFR) transducer , Transducer arrays,Towed Line Array transducer, etc.) and hydrophones (scalar hydrophones and vector hydrophones),sonar transducer,subsea connectors and underwater acoustic system, formed an underwater acoustic transducer R&D system that integrates scientific research, technology development, scientific management and advanced manufacturing technology, integrating industry, academia and research.The frequency spectrum for acoustic transducer applications ranges from 0.01 Hz to 2 MHz .
Specification:
Main Specifications | |
Working frequency bands | 20Hz-50kHz |
Receiving sensitivity | ＞-170dB（Preamplification included +20dB） |
horizontal directivity | omni-directional （±1.5dB） |
vertical directivity | ≥140°（-3dB） |
power input | +4.5v-12v |
output mode | differential output |
other parameters | |
Body size | Diameter 32mm，height 130mm |
Working depth | 200m |
Standard cable | 10m watertight cable（custom） |
Metal Materials | 316L/TC4（custom） |
interface mode | Flange mounting/lifting use (customizable) |
Watertight connector | Customizable (imported, domestic) |

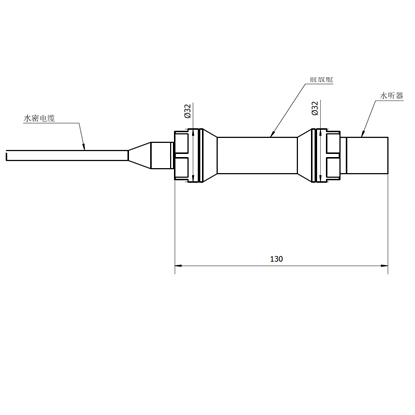

Dimensions :

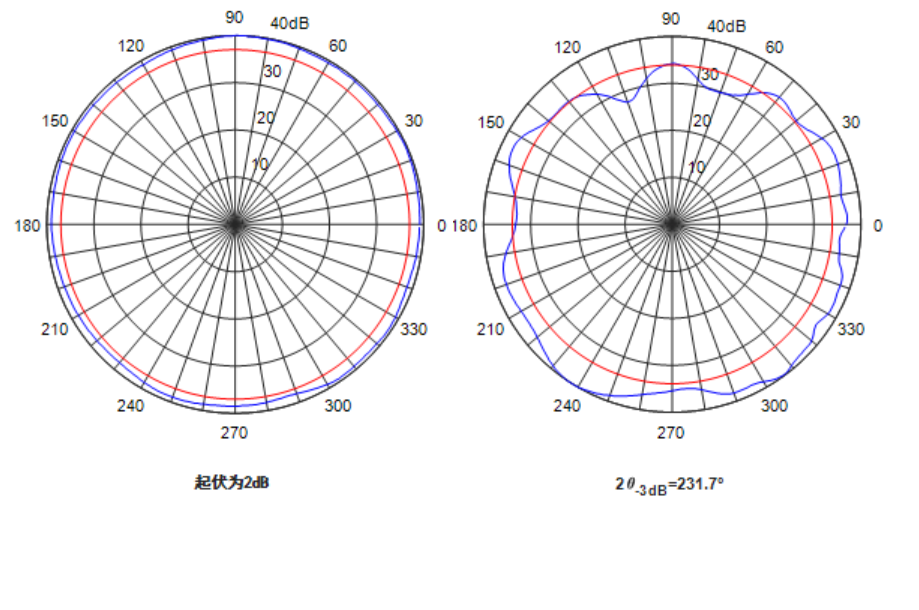

Acoustic performance curve:
