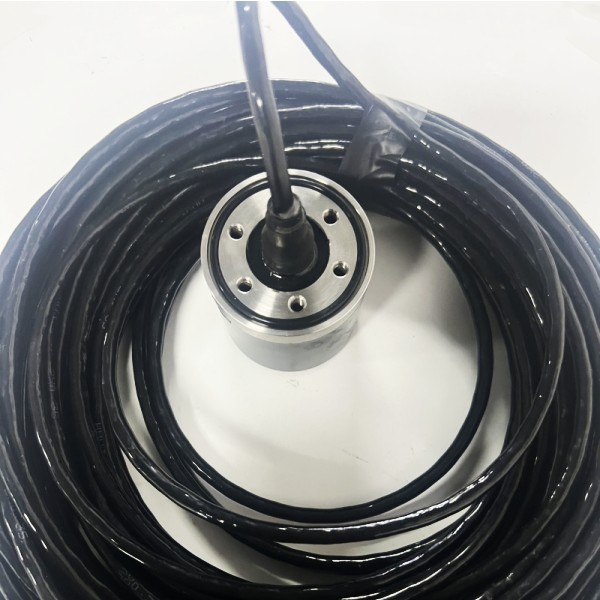

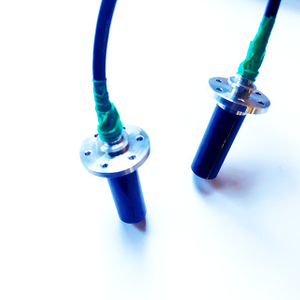

18 KHz-34 KHz Cylindrical Acoustic Transducers Communication Transducer

Frequency :18kHz-34kHz

Application : Transmitting and receiving use

Availability:

Quantity:



Inquire Add to Basket

Model:
CC220
Code:
CC220

cylindrical acoustic transducers receiving transmitting acoustic transducer 18 kHz-34 kHz transducers array 18 kHz-34 kHz receiving transmitting transducer 18 kHz-34 kHz communication transducer acoustic transducers for underwater acoustics 18 kHz-34 kHz cylindrical acoustic transducers transducers for underwater communications 18 kHz-34 kHz acoustic transducers

Product Description

60kHz-80kHz Cylindrical Acoustic Transducers Array Receiving Transmitting Acoustic Transducer

We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.

Specification:

Main Specifications
Working frequency bands	18 kHz-34 kHz
Maximum transmitting voltage response	≥140dB@24k
Maximum receiving sensitivity	≥-185dB@24k
horizontal directivity	omni-directional（±1.5dB）
vertical directivity	≥200°（-3dB）
Other Specifications
Body size	Diameter 50mm，height 60mm
Working depth	300m（custom 2000m）
Standard cable	10m watertight cable（custom）
Metal Materials	316L/TC4（custom)
Cable type	General cable/Load-bearing cable (optional)
interface mode	Customizable (imported, domestic)
Watertight connector	optional

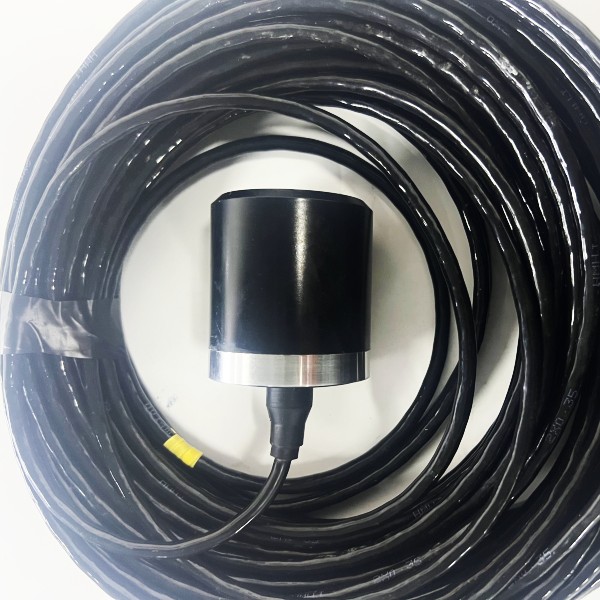

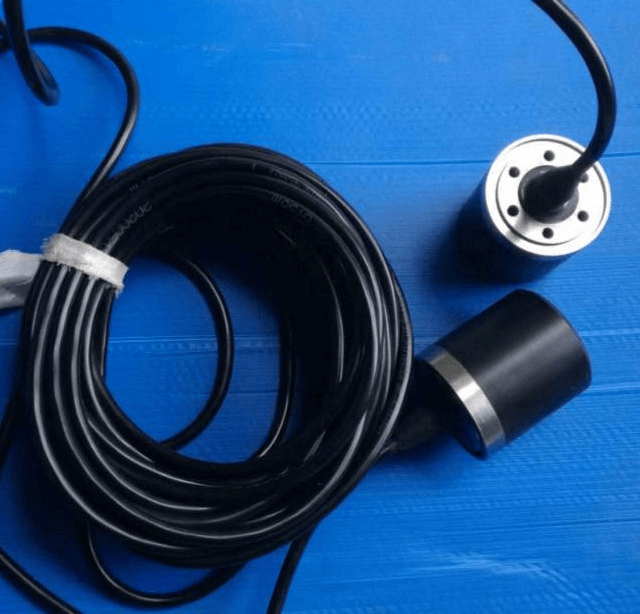

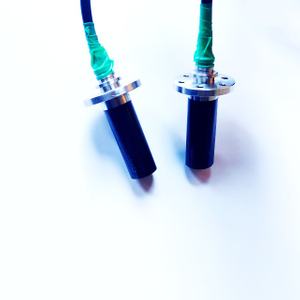

18 KHz-34 KHz Cylindrical Communication Transducer Underwater Acoustic Transducer

Conductivity, capacitance

Measuring the conductivity and capacitance curves of the transducer in the frequency band of 1kHz to 50kHz, where the resonant frequency of the transducer should be in the range, and provide the resistance and capacitance data in the working frequency band.

Working frequency band

The working frequency band of the transducer is 18kHz-34kHz.

Transmitting response

Measuring the transmitting response in the working frequency band of the transducer, where the 25kHz is not less than 140dB.

Receiving sensitivity

Measuring the receiving sensitivity in the working frequency band of the transducer, where the 25kHz is not less than -190dB.

Horizontal directivity

Omnidirectional, measuring frequencies 18kHz, 25kHz, 34kHz.

Vertical directivity

Measuring the vertical directivity of the transducer at 18kHz, 25kHz, and 34kHz, where the opening angle at 25kHz should be not less than 200°.

Hydrostatic pressure test

The hydrostatic pressure resistance of the transducer should be not less than 3Mpa.

Cable

The transducer uses a two-core shielded cable with a cable length of 30m.

Measurement data

1.Conductivity and capacitance parameters

	001#		002#		003#		004#		005#
f/kHz	R/Ω	C/nF	R/Ω	C/nF	R/Ω	C/nF	R/Ω	C/nF	R/Ω	C/nF
18	4168	9.55	3177	10.01	3770	9.84	3454	9.81	3217	9.79
19	2842	9.99	2171	10.36	2541	10.32	2306	10.23	2226	10.18
20	1866	10.41	1443	10.55	1679	10.61	1506	10.23	1476	10.26
21	1220	10.29	982	9.74	1117	10.27	1044	9.20	1026	9.36
22	850	8.80	759	7.39	799	8.59	847	6.94	815	7.04
23	721	5.87	688	4.30	685	5.43	853	5.14	740	5.26
24	729	3.08	781	1.40	736	2.25	833	2.17	779	1.85
25	892	0.84	1074	0.80	952	0.41	1144	0.85	1062	0.30
26	1287	0.24	1713	0.58	1433	0.55	1770	1.08	1673	0.55
27	1936	1.07	1885	1.49	1791	1.47	2095	2.07	2048	1.72
28	1975	1.86	2081	1.55	1880	1.58	2178	2.17	2013	1.81
29	2127	1.76	2452	1.69	2221	1.65	2532	2.24	2334	1.80
30	2508	1.82	2913	1.90	2663	1.84	2989	2.42	2762	1.96
31	2990	2.01	3415	2.13	3154	2.07	3438	2.63	3271	2.14
32	3534	2.21	3920	2.36	3641	2.28	3796	2.80	3806	2.34
33	4081	2.40	4223	2.56	4165	2.47	4210	2.92	4368	2.51
34	4644	2.57	4758	2.65	4733	2.64	4792	3.04	4958	2.68

	006#		007#		008#		009#		010#
f/kHz	R/Ω	C/nF	R/Ω	C/nF	R/Ω	C/nF	R/Ω	C/nF	R/Ω	C/nF
18	3225	10.04	3950	9.48	3533	9.92	3252	9.98	4486	9.47
19	2212	10.44	2682	9.95	2380	10.31	2211	10.39	2929	9.85
20	1468	10.65	1796	10.23	1608	10.44	1445	10.48	1919	10.10
21	993	9.86	1186	9.97	1086	9.90	1003	9.56	1289	9.81
22	763	7.44	860	8.39	815	7.92	798	7.23	914	8.50
23	696	4.47	736	5.60	772	5.10	725	5.02	754	5.83
24	795	1.57	762	2.76	789	2.48	781	1.84	779	2.21
25	1083	0.34	947	0.89	1044	0.90	1037	0.38	1194	0.83
26	1671	0.85	1377	0.52	1570	0.89	1608	0.69	1537	1.55
27	1836	1.75	1863	1.45	1983	2.04	1874	1.59	1744	1.60
28	1963	1.73	1870	1.73	1923	2.10	1979	1.67	2096	1.62
29	2315	1.78	2137	1.71	2238	2.07	2320	1.74	2588	1.77
30	2759	1.96	2554	1.83	2682	2.21	2758	1.92	3212	1.97
31	3253	2.18	3024	2.02	3175	2.41	3238	2.13	3960	2.18
32	3771	2.38	3535	2.21	3655	2.63	3754	2.33	4855	2.40
33	4301	2.56	4058	2.40	4036	2.81	4279	2.52	5883	2.59
34	4899	2.72	4586	2.56	4378	2.93	4798	2.68	7076	2.75

	011#		012#		013#		014#		015#
f/kHz	R/Ω	C/nF	R/Ω	C/nF	R/Ω	C/nF	R/Ω	C/nF	R/Ω	C/nF
18	4201	9.18	4118	9.29	5106	9.54	4068	9.29	4502	9.19
19	2805	9.59	2793	9.69	3344	9.96	2759	9.65	3063	9.60
20	1859	9.78	1855	9.89	2183	10.27	1834	9.86	2038	9.93
21	1263	9.43	1247	9.59	1421	10.21	1237	9.51	1357	9.73
22	898	8.04	895	8.14	976	9.11	905	8.04	976	8.74
23	773	5.04	782	5.22	787	6.49	799	5.34	784	6.51
24	853	2.09	812	2.54	774	3.77	787	2.69	745	3.69
25	1232	0.91	1138	1.04	1013	1.29	1144	0.83	900	1.18
26	1689	1.72	1570	1.55	1511	1.44	1534	1.66	1357	0.83
27	1772	1.99	1659	1.93	1774	2.01	1612	1.77	1593	1.59
28	1960	1.92	1852	1.77	2009	2.00	1866	1.66	1750	1.57
29	2291	1.94	2222	1.81	2467	2.09	2252	1.74	2064	1.61
30	2747	2.04	2672	1.96	3069	2.26	2699	1.92	2474	1.75
31	3266	2.22	3172	2.15	3768	2.48	3200	2.11	2943	1.94
32	3801	2.40	3702	2.34	4576	2.71	3748	2.30	3469	2.14
33	4388	2.57	4253	2.51	5477	2.89	4330	2.48	4038	2.33
34	4980	2.73	4872	2.67	6575	3.06	4932	2.65	4595	2.51

2.Transmitting Response（dB）

f/kHz	001#	002#	003#	004#	005#	006#	007#	008#
15	128.7	129.9	128.8	128.8	129.5	129.2	128.9	128.9
16	129.9	131.1	130.6	130.6	130.6	131.2	129.9	130.1
17	131.6	132.6	132.6	132.4	132.3	132.9	131.8	131.8
18	133.9	135.4	134.5	134.4	134.9	134.8	134.2	134.0
19	136.4	137.7	136.9	137.2	137.7	136.9	136.8	137.1
20	138.1	139.6	138.3	138.6	139.2	138.7	138.1	138.6
21	139.9	141.2	140.3	140.3	140.6	141.5	139.8	139.9
22	142.4	143.2	142.6	142.7	142.9	142.9	142.4	141.8
23	142.9	143.1	142.7	142.5	143.0	142.7	142.7	142.4
24	141.6	142.4	141.9	140.7	141.5	141.5	141.1	141.4
25	140.2	141.3	140.5	140.2	140.2	141.6	140.7	140.8
26	138.4	138.2	137.1	136.1	137.9	136.8	137.2	137.8
27	133.3	136.1	134.2	132.4	134.5	135.7	133.5	135.0
28	134.9	137.0	136.9	134.5	137.0	137.2	136.5	135.8
29	137.4	136.7	137.1	133.9	136.7	136.2	137.1	136.5
30	135.7	134.7	135.1	131.7	135.2	134.6	134.6	135.1
31	134.5	133.9	134.6	132.1	134.4	134.3	136.9	133.0
32	134.0	133.0	134.1	133.0	133.3	133.4	134.3	132.0
33	132.6	130.8	132.3	132.4	132.0	131.6	132.5	131.5
34	132.0	130.9	132.1	131.9	131.5	130.9	132.3	130.3
35	132.6	132.1	132.4	133.0	131.6	131.6	132.2	130.6
36	132.2	131.8	131.9	133.2	131.1	131.5	131.9	131.2
37	131.4	130.9	131.4	132.6	131.0	131.2	131.5	131.3
38	131.3	130.9	131.1	132.2	130.7	131.1	131.1	131.0
39	131.3	131.3	131.1	132.0	130.7	131.0	131.1	130.9
40	131.1	131.1	131.0	132.0	131.0	131.1	131.0	131.0

f/kHz	009#	010#	011#	012#	013#	014#	015#
15	129.5	127.6	127.9	128.2	127.3	128.0	128.0
16	131.2	129.1	130.3	130.3	129.6	129.5	129.5
17	132.5	131.7	132.2	132.1	131.6	131.5	131.5
18	134.6	133.3	133.6	133.9	133.2	133.5	133.7
19	137.6	135.6	135.2	136.2	135.2	135.6	135.7
20	139.3	138.2	137.7	137.7	138.2	137.6	137.1
21	140.8	139.9	139.5	139.9	140.2	139.6	139.4
22	142.4	141.2	141.0	142.2	142.0	142.0	141.7
23	142.6	141.6	141.7	141.9	143.2	141.3	142.4
24	141.7	140.4	140.8	140.9	142.3	141.5	141.5
25	140.4	140.9	141.2	140.8	141.7	140.8	140.5
26	136.0	137.4	137.8	135.9	137.2	136.6	136.0
27	135.8	137.7	136.6	136.8	136.4	137.3	137.3
28	137.1	137.5	136.9	137.3	136.3	137.4	138.2
29	137.2	136.6	136.1	137.1	137.0	136.7	136.8
30	135.7	135.0	135.1	135.8	135.2	135.2	135.2
31	134.9	134.4	134.6	134.9	134.0	134.8	135.2
32	134.5	133.8	133.7	134.0	134.3	134.0	134.6
33	133.4	132.5	132.2	132.6	132.1	132.5	132.5
34	132.9	131.9	131.1	131.6	130.8	132.1	132.3
35	132.8	132.5	130.8	131.4	132.3	132.2	133.0
36	132.5	132.0	130.4	131.2	131.5	131.8	132.5
37	131.7	131.1	129.9	130.7	130.3	131.3	131.7
38	131.4	130.9	129.7	130.7	130.7	131.3	131.1
39	131.3	130.6	129.8	130.6	131.0	131.3	131.0
40	131.1	130.4	129.7	130.6	130.6	131.0	131.1

3.Receiving sensitivity

f/kHz	001#	002#	003#	004#	005#	006#	007#	008#
15	-188.0	-187.8	-187.5	-187.5	-187.2	-186.9	-187.5	-187.0
16	-186.9	-187.1	-186.6	-186.2	-186.4	-185.9	-186.4	-186.2
17	-186.1	-185.6	-184.9	-185.7	-184.9	-184.2	-185.3	-184.5
18	-185.3	-185.2	-184.8	-184.9	-184.7	-184.5	-184.9	-184.6
19	-185.1	-184.5	-184.0	-183.8	-184.0	-184.2	-183.9	-184.1
20	-185.4	-184.7	-184.1	-183.3	-183.1	-184.5	-183.7	-183.8
21	-185.6	-184.8	-184.4	-183.6	-182.8	-184.5	-184.0	-183.7
22	-185.2	-184.4	-184.4	-183.1	-182.6	-183.2	-183.8	-182.9
23	-183.1	-183.5	-183.3	-182.2	-182.7	-181.9	-182.7	-182.3
24	-180.9	-181.3	-180.4	-180.4	-180.6	-180.0	-180.4	-180.3
25	-181.0	-181.5	-179.5	-180.7	-180.2	-180.5	-180.1	-180.4
26	-181.5	-181.7	-180.7	-182.8	-182.4	-181.9	-181.7	-182.2
27	-180.3	-180.3	-181.3	-183.1	-182.5	-182.0	-182.2	-182.2
28	-181.6	-181.1	-181.3	-183.6	-181.3	-181.8	-182.5	-181.6
29	-184.9	-185.2	-184.4	-187.8	-184.5	-185.4	-186.1	-185.0
30	-183.8	-184.2	-184.4	-187.2	-184.4	-184.1	-185.8	-184.2
31	-183.9	-184.6	-184.9	-187.1	-185.8	-184.2	-186.0	-185.0
32	-185.1	-185.2	-185.6	-187.1	-186.8	-185.6	-186.4	-186.2
33	-185.1	-185.1	-185.2	-185.8	-186.6	-186.3	-185.5	-186.5
34	-187.9	-187.9	-187.7	-187.6	-188.0	-189.0	-187.7	-188.5
35	-189.8	-190.0	-189.6	-189.7	-189.9	-191.0	-189.6	-190.5
36	-190.5	-190.6	-190.2	-190.2	-190.3	-190.4	-190.2	-190.4
37	-191.5	-191.5	-191.6	-190.4	-192.3	-191.3	-191.0	-191.8
38	-192.6	-192.5	-192.3	-191.5	-193.8	-192.5	-191.9	-193.1
39	-193.3	-193.0	-192.7	-191.5	-194.1	-192.9	-192.1	-193.5
40	-194.1	-193.8	-193.5	-192.2	-193.6	-193.5	-192.9	-193.6

f/kHz	009#	010#	011#	012#	013#	014#	015#
15	-187.8	-188.8	-187.9	-187.9	-188.1	-187.6	-188.1
16	-186.6	-187.8	-187.0	-187.1	-187.3	-186.9	-186.7
17	-186.1	-186.2	-186.1	-186.2	-185.4	-185.8	-186.0
18	-185.4	-185.5	-185.6	-185.3	-185.2	-185.1	-185.0
19	-184.3	-184.8	-185.2	-185.0	-184.3	-184.7	-185.0
20	-183.4	-185.0	-186.1	-185.0	-184.2	-185.1	-184.6
21	-183.5	-185.1	-186.3	-185.2	-184.3	-185.4	-184.9
22	-184.1	-185.2	-185.7	-184.5	-183.7	-185.2	-184.8
23	-183.7	-183.6	-183.1	-183.5	-182.3	-184.6	-183.1
24	-180.5	-181.2	-180.4	-181.6	-180.2	-182.5	-181.4
25	-180.2	-181.6	-179.9	-181.1	-181.1	-181.9	-182.2
26	-181.3	-180.7	-181.3	-181.3	-182.4	-181.0	-181.6
27	-180.4	-179.0	-180.7	-180.7	-180.5	-180.1	-179.9
28	-180.1	-180.7	-182.4	-181.3	-181.0	-181.2	-180.8
29	-183.7	-185.1	-185.4	-184.9	-185.0	-185.5	-184.4
30	-183.8	-184.4	-183.7	-184.0	-184.3	-184.0	-183.9
31	-184.7	-184.6	-183.8	-184.2	-184.7	-184.4	-184.1
32	-185.5	-185.5	-185.2	-184.8	-185.2	-185.1	-185.1
33	-184.4	-185.2	-185.5	-185.4	-185.0	-185.3	-184.8
34	-186.3	-186.8	-188.6	-188.7	-188.0	-187.8	-187.3
35	-188.8	-189.2	-190.7	-191.4	-190.4	-189.7	-188.9
36	-189.5	-190.4	-191.2	-191.7	-190.7	-190.5	-189.8
37	-191.6	-191.6	-192.1	-192.0	-191.7	-191.4	-191.0
38	-192.1	-192.2	-193.4	-193.0	-192.4	-192.7	-191.8
39	-192.9	-193.0	-193.7	-193.4	-193.0	-193.0	-192.9
40	-193.0	-194.0	-194.5	-194.5	-193.4	-194.2	-193.7
