CGQSF60-80K
CGQSF60-80K
60kHz-80kHz Cylindrical Acoustic Transducers Array Receiving Transmitting Acoustic Transducer
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Transmitting Array:

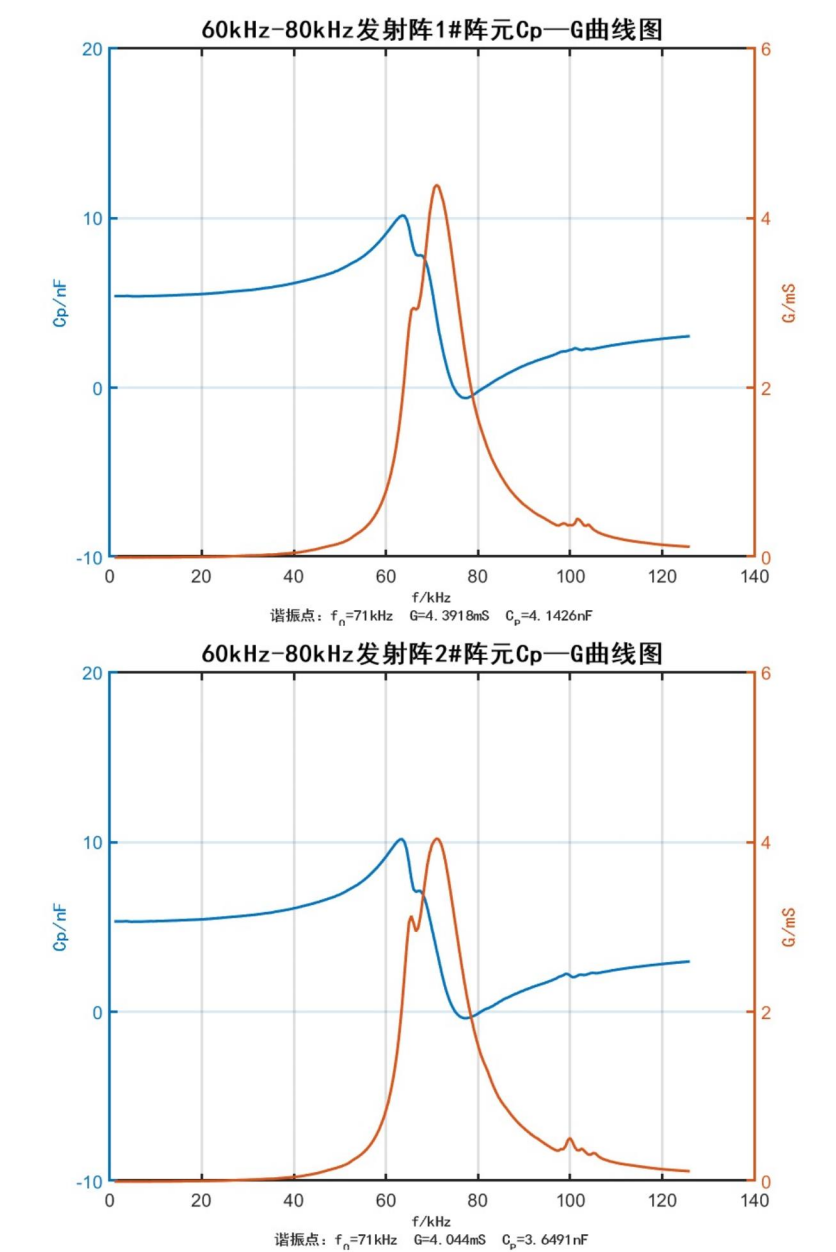

conductance, capacitanc
Measure the conductance and capacitance curves of each element of the transmitting array, and provide a internal emitting resistor and capacitance data based on the frequency band of 60kHz to 80kHz.
Transmitting Response
Measuring the voltage emission response of the transducer in the 60kHz to 80kHz frequency band.
Vertical Directivity
Measure the vertical directivity of six transmitting array elements after they are connected in parallel.
Horizontal Directivity
Measure the horizontal directivity of six transmitting array elements after they are connected in parallel.
Receiving Array:
conductance, capacitance
Measure the conductance and capacitance curves of each element of the receiving array.

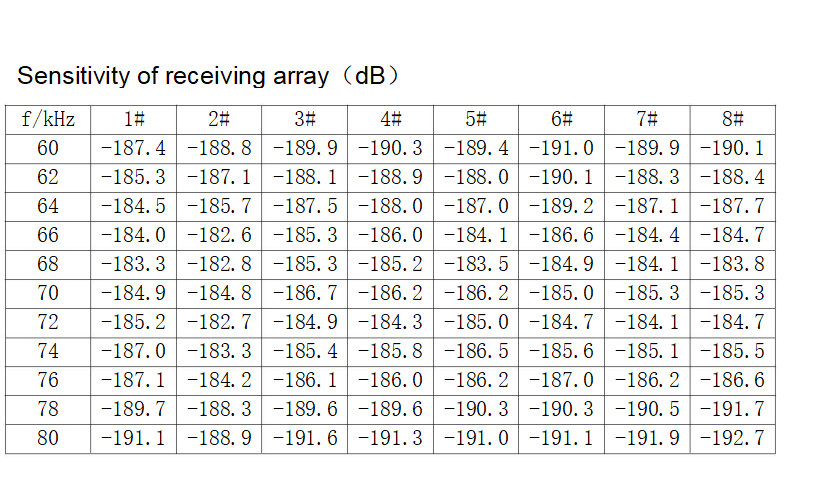

Receiving sensitivity
Measuring the receiving sensitivity of the transducer in the 60kHz to 80kHz frequency band, the highest sensitivity in the frequency band is not less than -185dB.

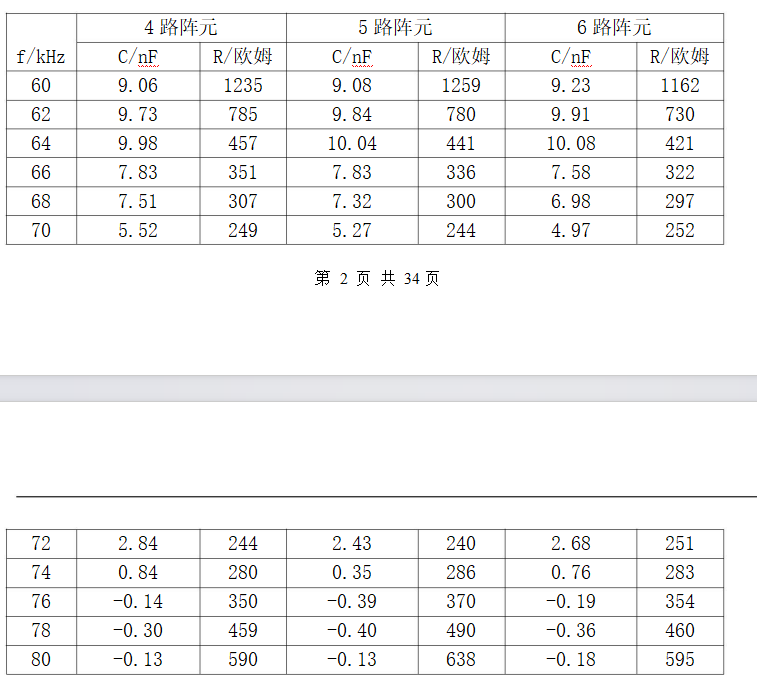

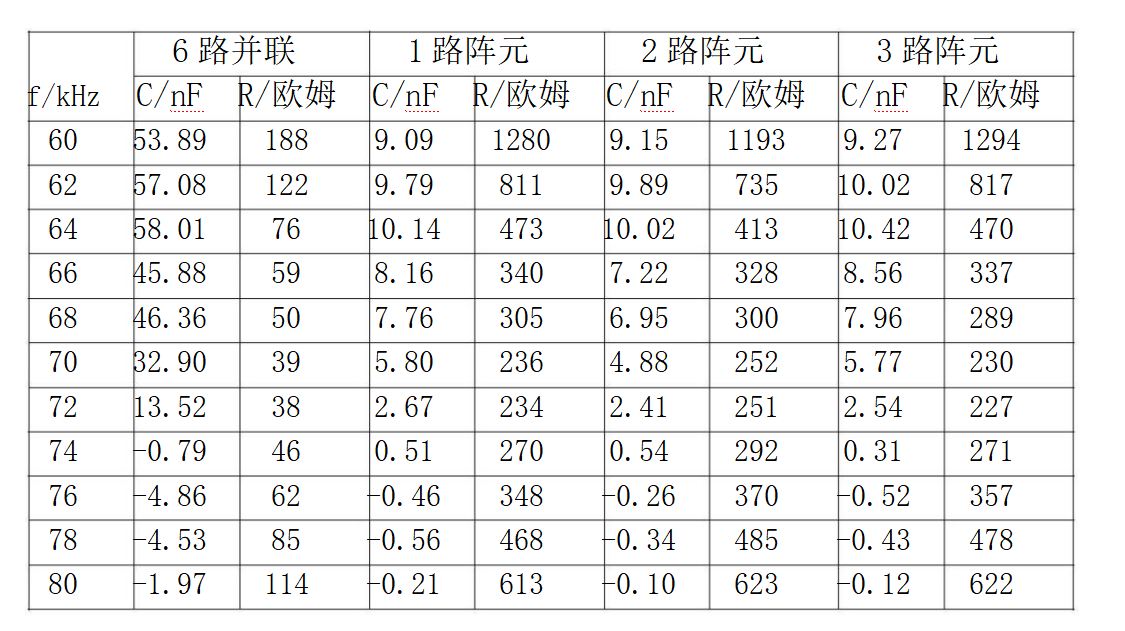

Conductance and capacitance parameters
Rating voltage: The transmitting array can withstand a voltage rating of 500V rms.

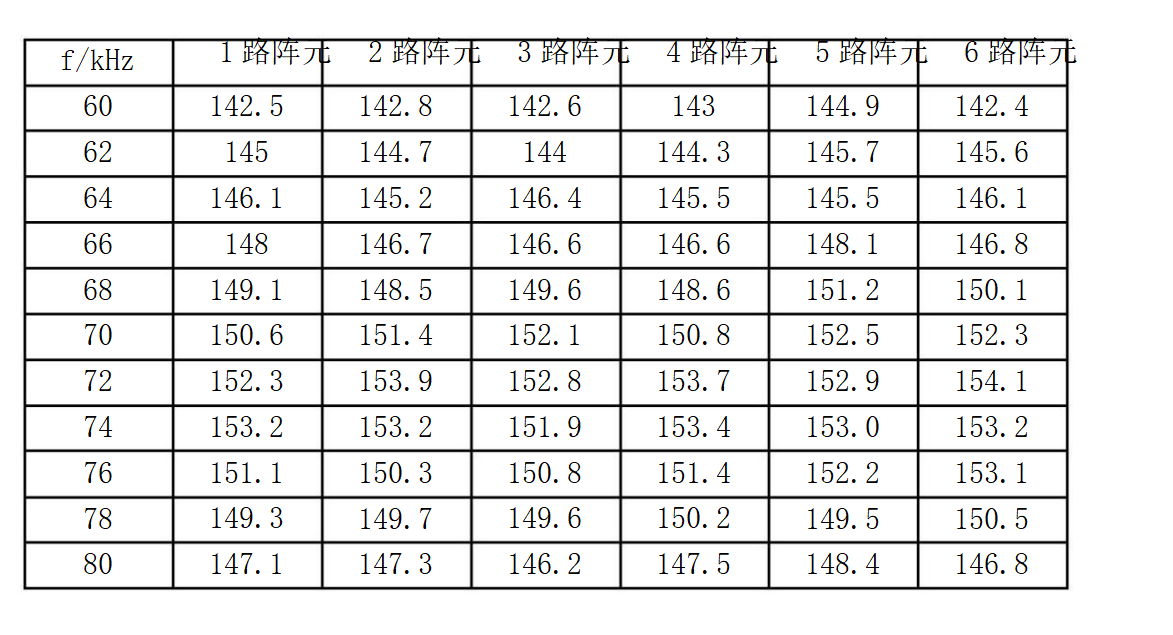

Transmitting voltage response (dB)

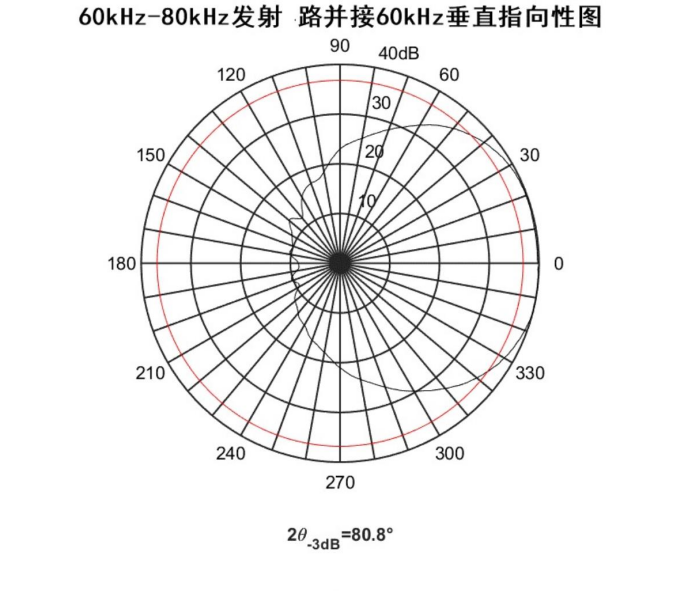

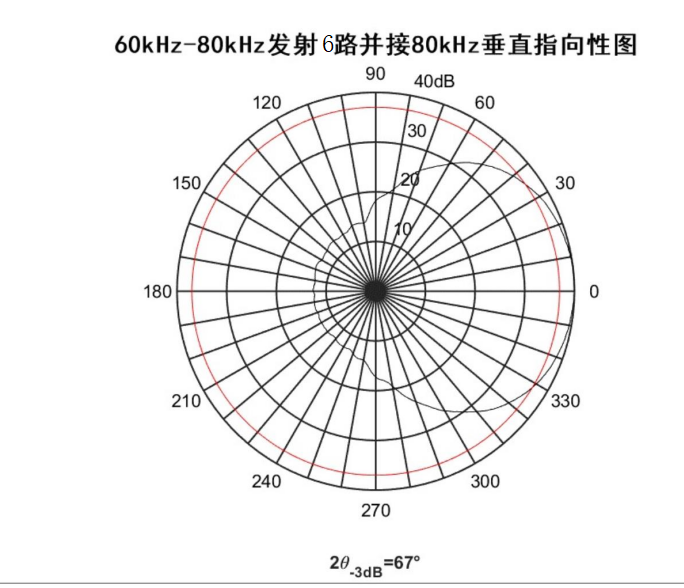

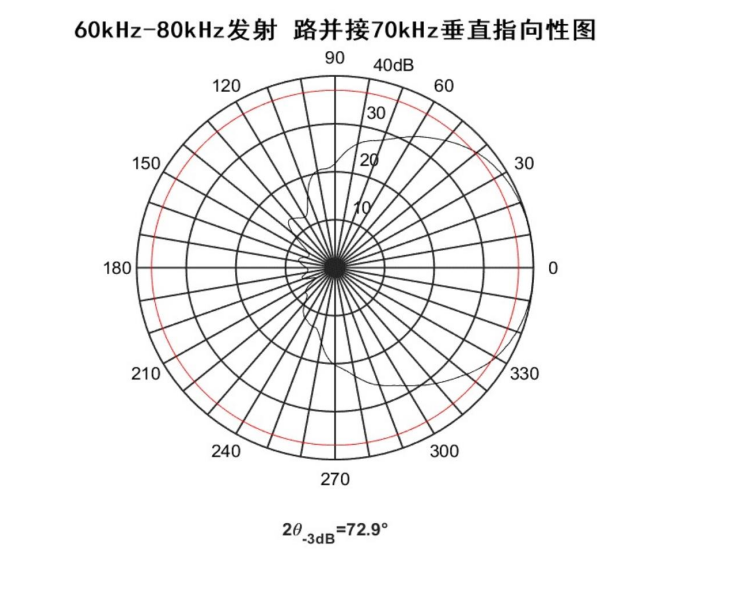

Vertical Directivity :

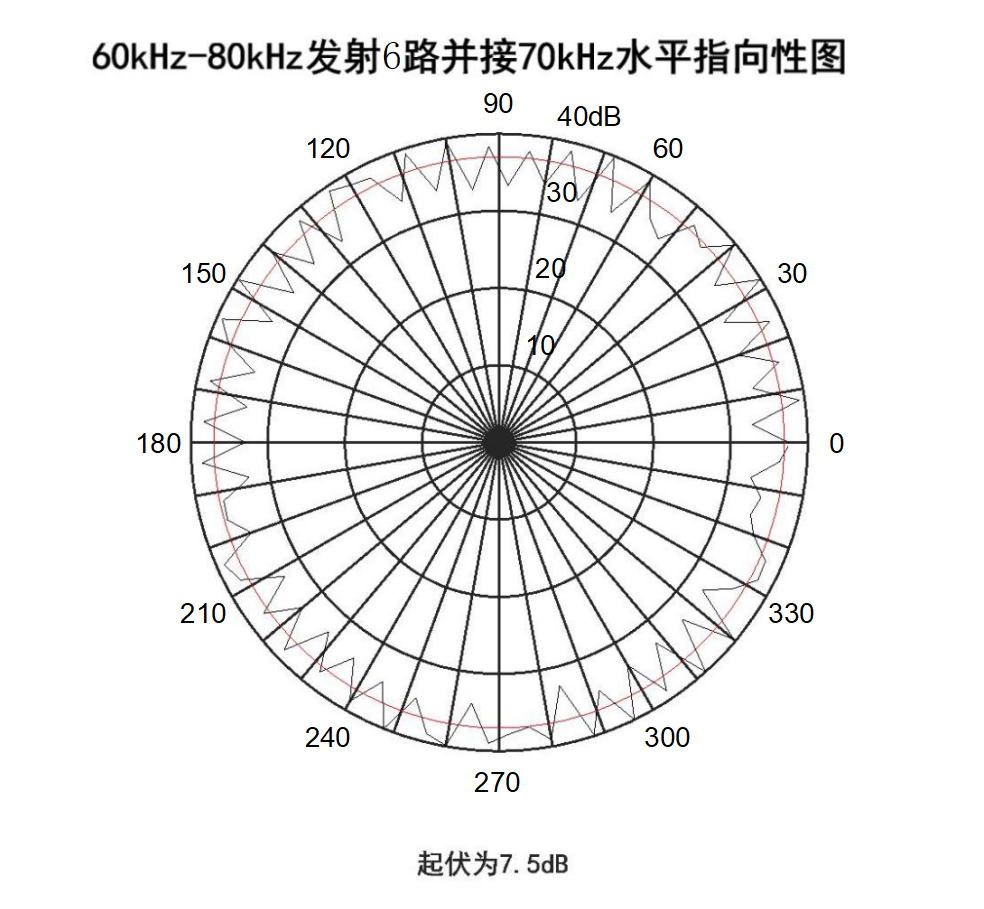

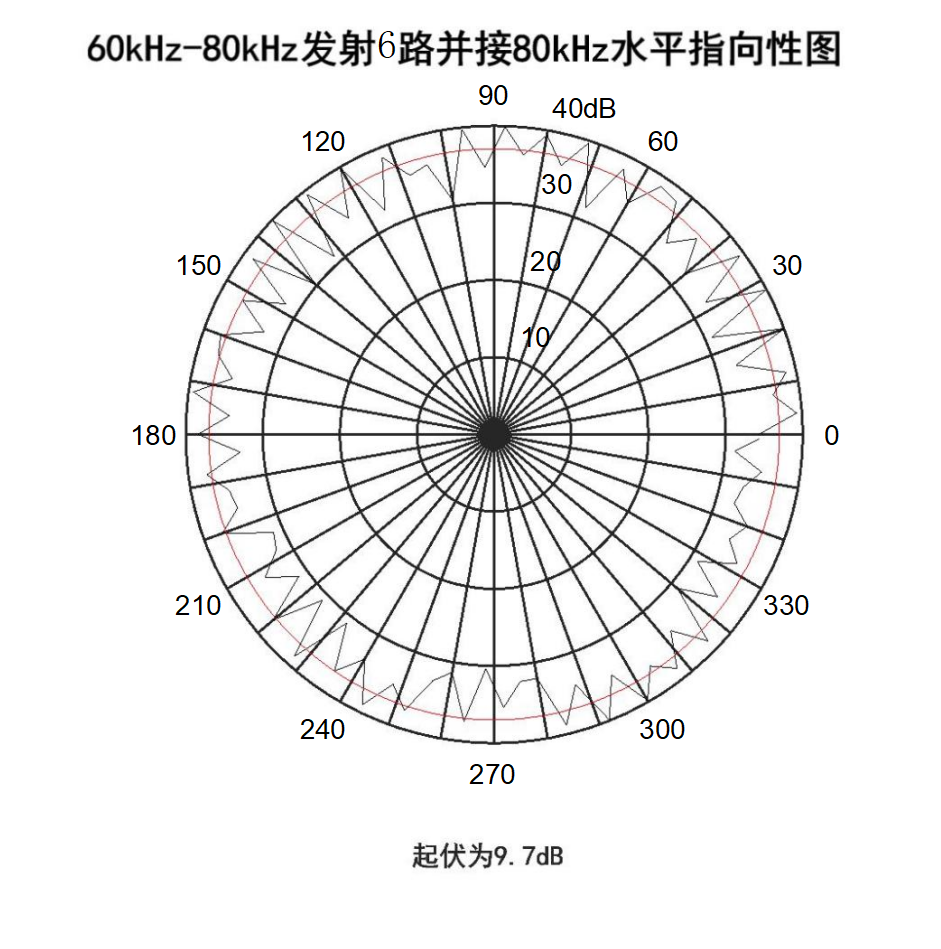

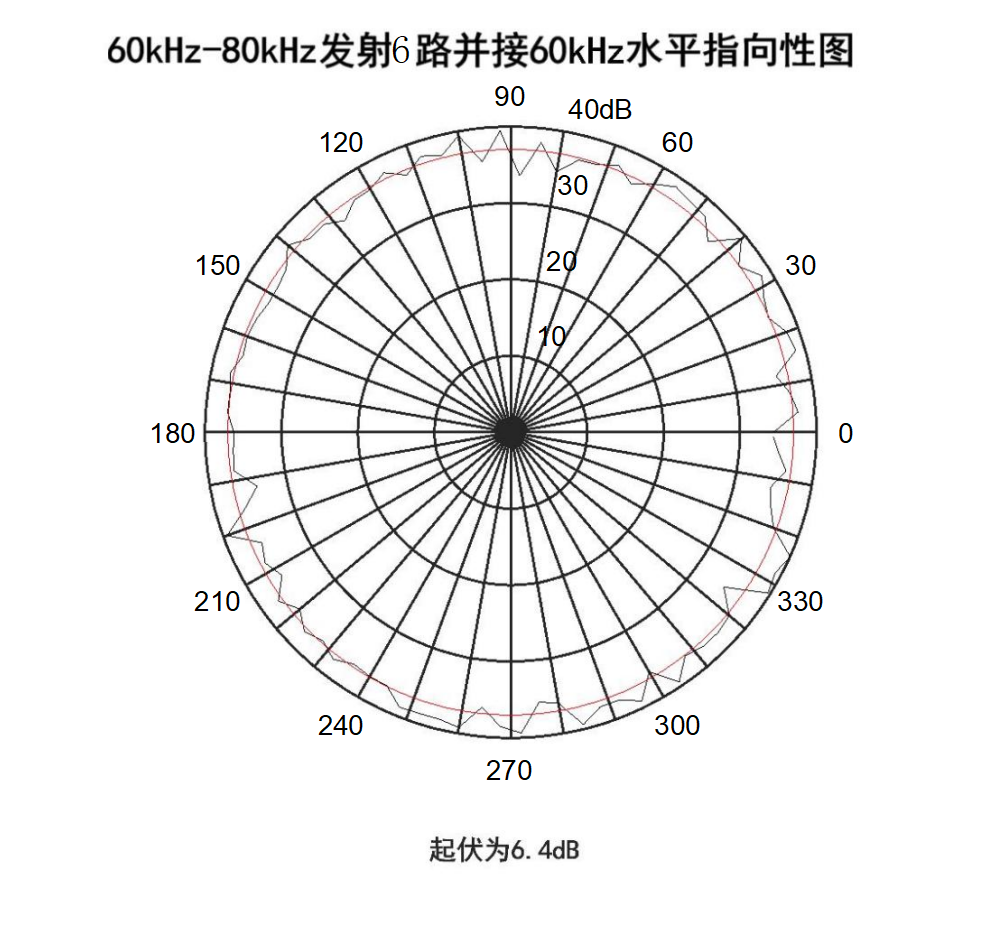

Horizontal Directivity：
Receiving Array

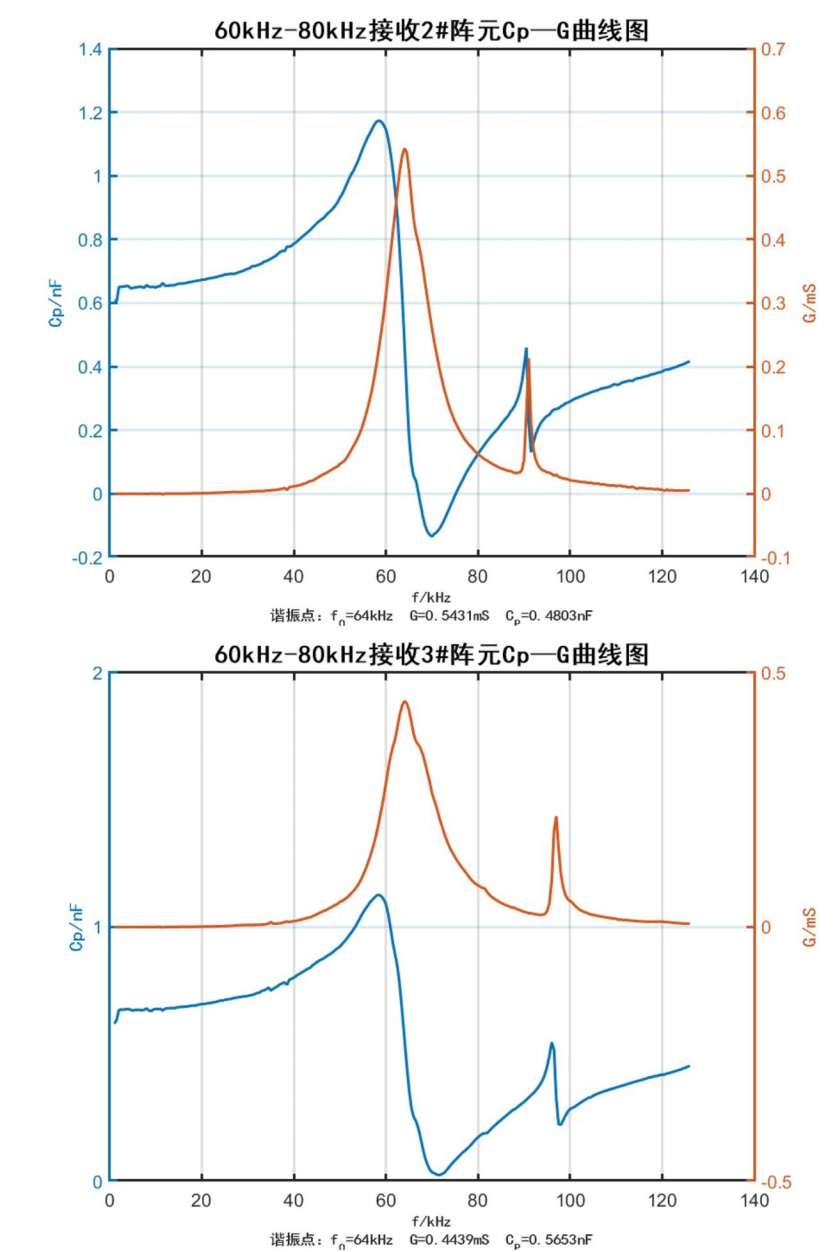

Conductance and capacitance curves
