ZXFS10-14K
ZXFS10-14K

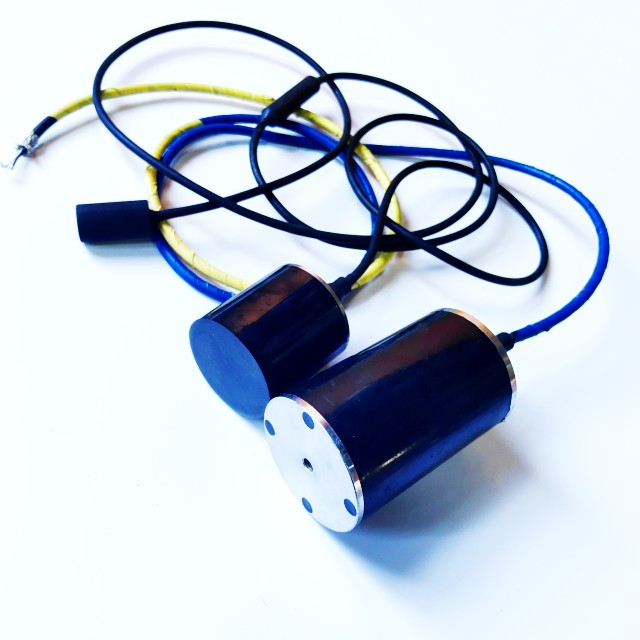

Custom 10kHz-14kHz Cylindrical Receiving Transmitting Acoustic Transducer
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Working bandwidth: 10kHz-14kHz;
Emission response: ≥140dB＠12kHz;
Emission sound level: ≥190 dB＠12kHz;
Receiving sensitivity: ≥-185dB＠12kHz;
Directivity: horizontal omnidirectional (3dB), vertical 180°＠12kHz.
Diameter: 92mm, height 86mm
Cable: Kevlar 30m
Pressure resistance: 300m
Metal material: 316L

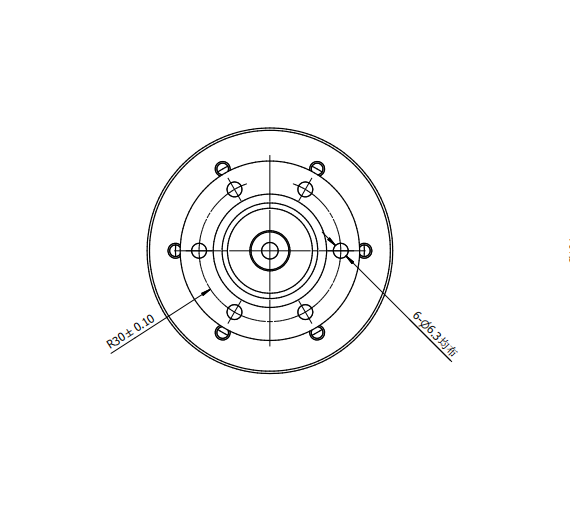

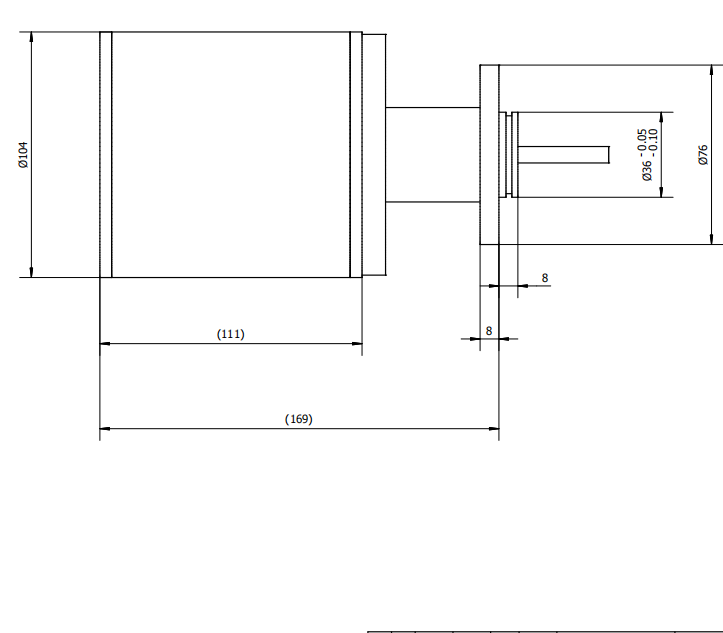

Drawing :
