Custom 12khz Transmitting Receiving Transducer Hydroacoustic Transducer for 6000M Depth

Custom 12khz Transmitting Receiving Transducer Hydroacoustic Transducer for 6000M Depth

We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.

Specification:

1. Pressure resistance requirement: ≥60MPa

2. Working frequency: 12kHz

3. Working bandwidth: 9kHz~15kHz

4. Transmitting response: ≥138dB@12kHz

5. Receiving sensitivity: ≥-185dB@12kHz

6. Directivity: horizontal omnidirectional (3dB), vertical 180° (3dB)

7. Structural parts material: titanium alloy TC4

8. Lead wire: 2-core cable, the length is not less than 500mm, without watertight connector; shielded wire is grounded

9. Dimensions: diameter (95) mm, height (105) mm

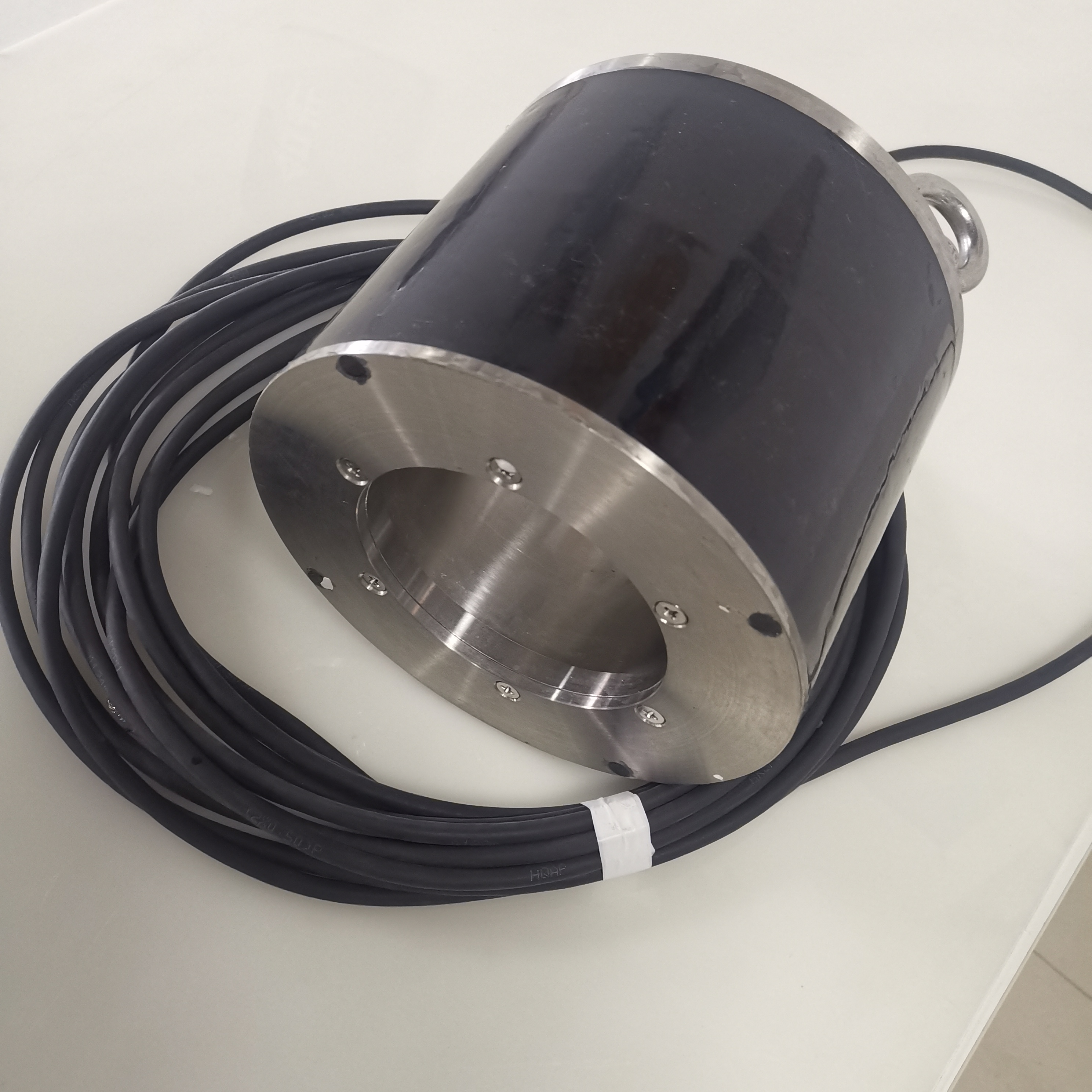

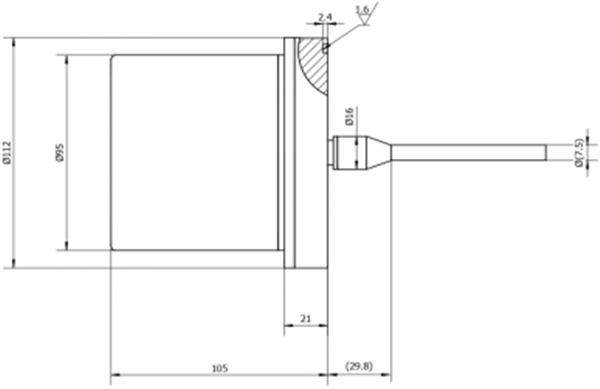

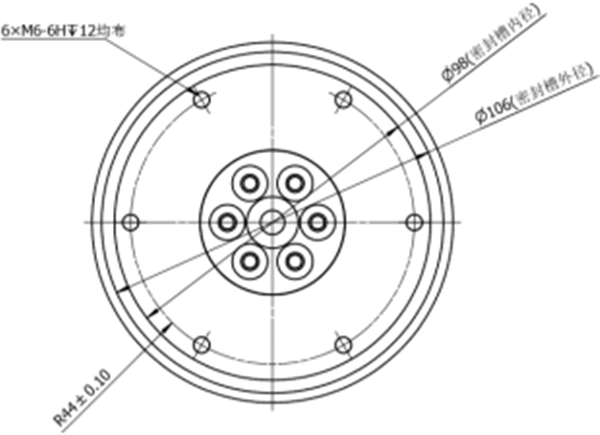

10. The mechanical interface is consistent with the 10k custom transducer. The surface roughness of the installation surface is 1.6; the width of the sealing ring groove is 4mm, and the depth is 2.4mm; the specification of the sealing ring used: 98mm×3.1mm. The drawings are as follows

Size :
