P181C
P181C
Custom 6kHz-11kHz Transmitting Acoustic Transducer for Deep Sea
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Technical Specifications | |
Resonant Frequency | 8kHz |
Operation Bandwidth | 6kHz-11kHz |
Transmitting Voltage Response | ≥135dB 1μPa/V @ 1m |
SL | ≥185dB |
Receive Sensitivity | |

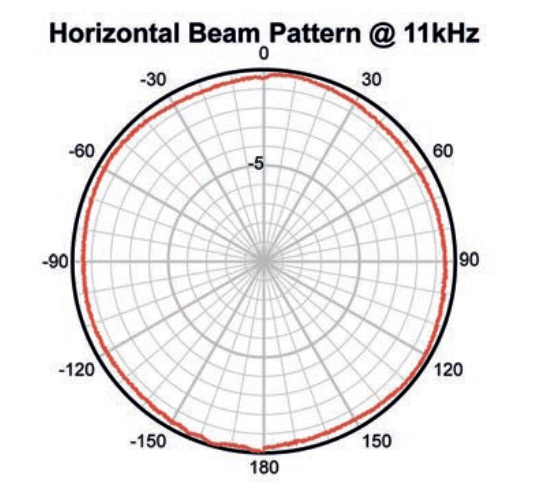

Horizontal Directivity（3dB） | Omnidirectional |
Vertical Directivity（3dB） | x |
Static Capacitance | |
Emitting Voltage | 600 Vrms（Max） |
Transmitted Voltage/duty cycle (maximum) | 600 Vrms @ 10% 190 Vrms @ 100% |
Physical Index | |

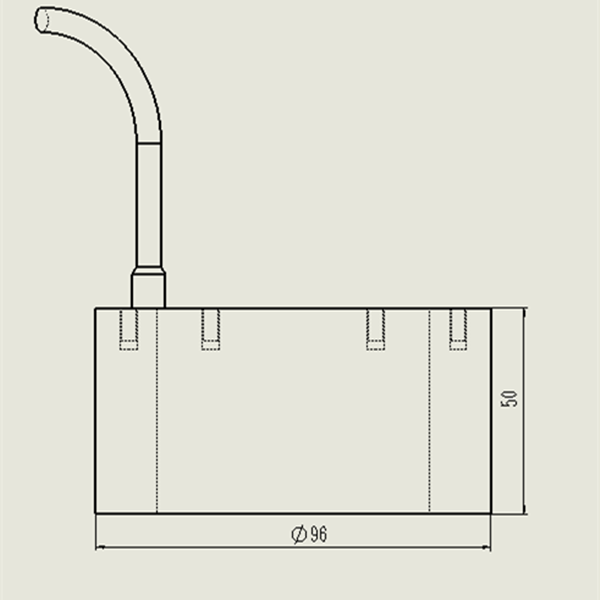

Size | Diameter 96mm，height 50mm |
Weight (air/water) | |
Cable (standard) | 5m，non-load-bearing，customizable |
Maximum working depth | 300m（standard），3000（Max） |
Operating Temperature | -5 to +40 °C |
Storage Temperature | -40 to +80 °C |
Connector | Non - standard, can be customized |

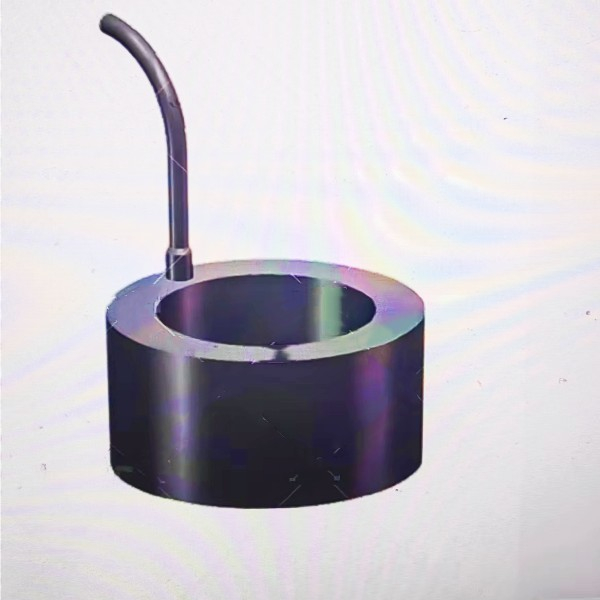

Image :

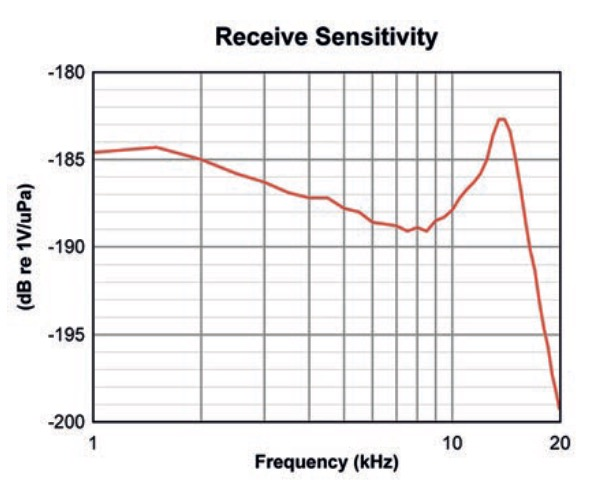

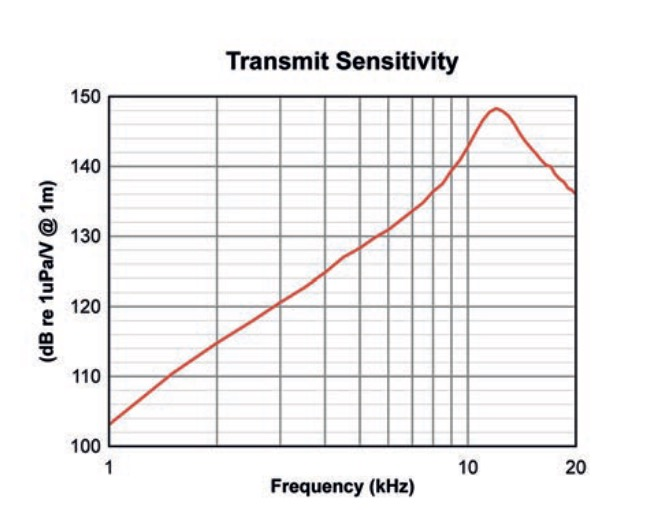

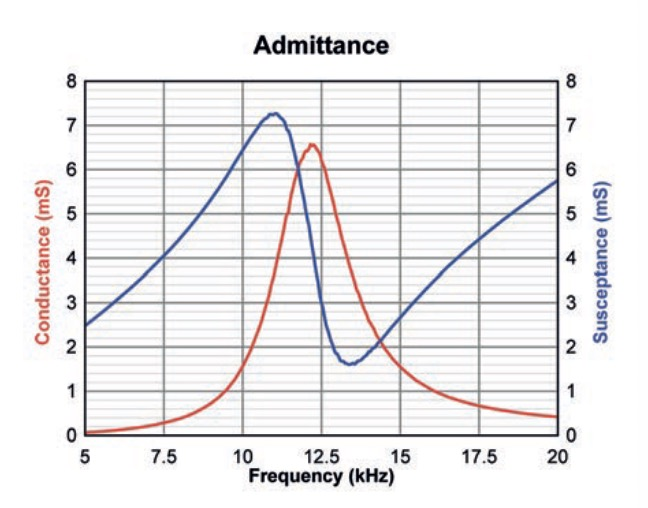

Performance Curve of Acoustics:
