DZHNQ15K-20K
DZHNQ15K-20K

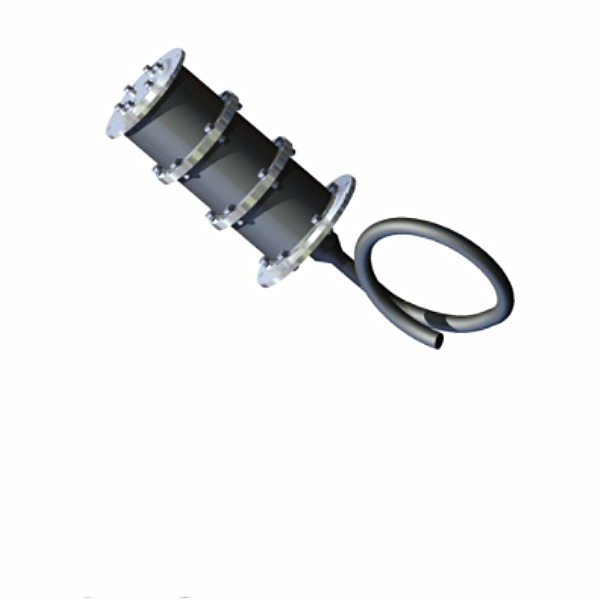

Custom 10khz Transmitting Transducer Medium Frequency Hydroacoustic Transducer
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
Model | DZHNQ15K-20K |
|
Resonant Frequency | 10 kHz | |
Working Band | 15 kHz ~20kHz | |
Transmitting voltage response | SvL≥130dB | |
Static Capacitance | Each channel 5450pF | |
Directivity | The ratio of front to back is more than 8dB. Vertical opening angle ≥ XX °
| |
Sound Source Level (SL) | SL≥190dB | |
Working depth | 300m | |
Cable Specification | Φ17mm NFPD-3P 5×3×0.2 | |
| ||
