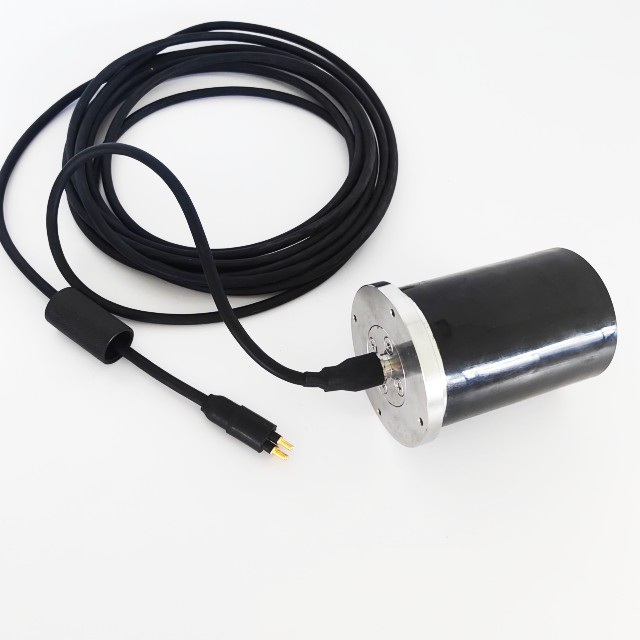

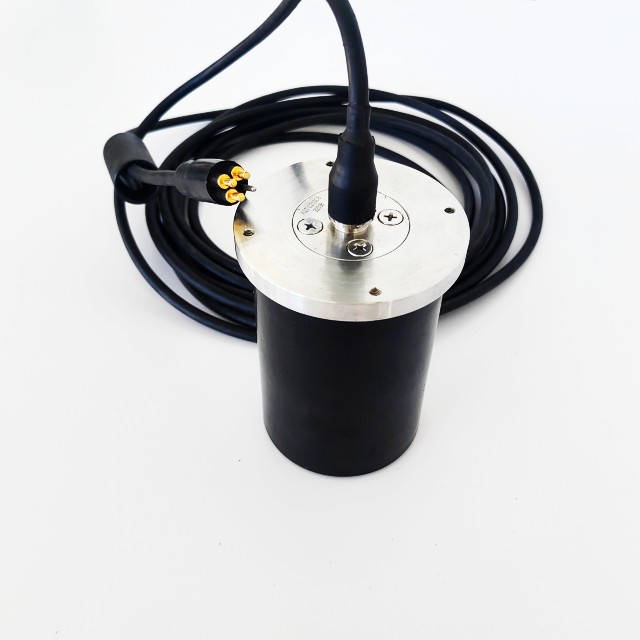

Custom 10kHz Cylindrical Transmitting Transducer Acoustic Transducer

      Custom 10kHz Cylindrical Transmitting Transducer Acoustic Transducer

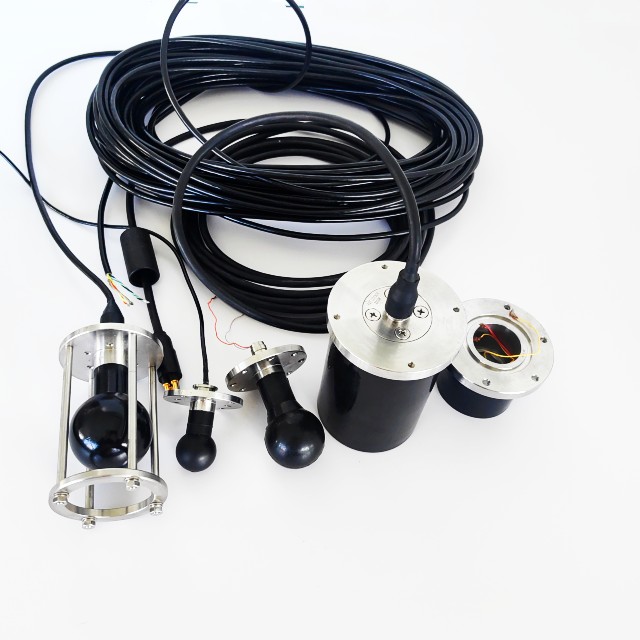

We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.

Specification:

Center frequency: 10kHz

Working bandwidth: 6kHz-14kHz

Emission voltage response: ≥138dB＠10 kHz

Emission sound source level: 2186 dB＠10 kHz

Receiving sensitivity: ≥-185 dB＠10 kHz

Directivity: horizontal omnidirectional (3dB), vertical 180° (6dB)

Structural indicators

Appearance: columnar structure

Diameter: ≤100mm

Height: ≤105mm

Cable: ≥1m

Structural parts material: 316L

Mechanical interface: designed according to Party A's requirements or equipped with adapter flanges

Others

Pressure requirements: ≥500m

Including acceptance report

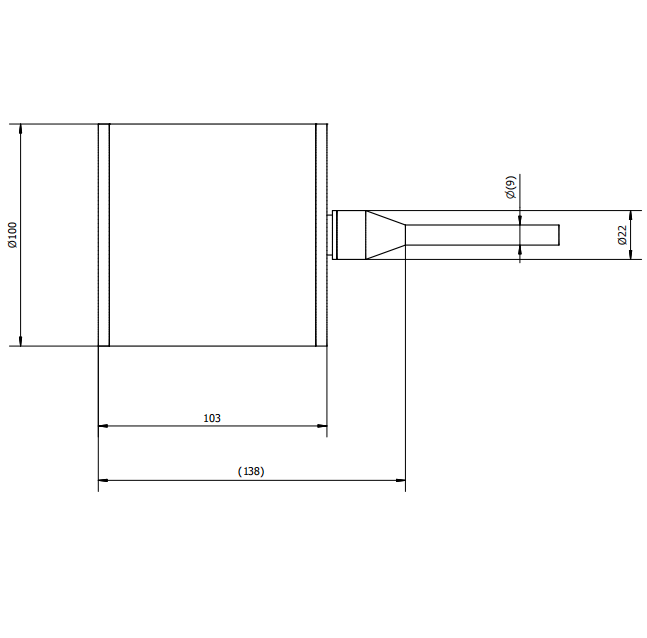

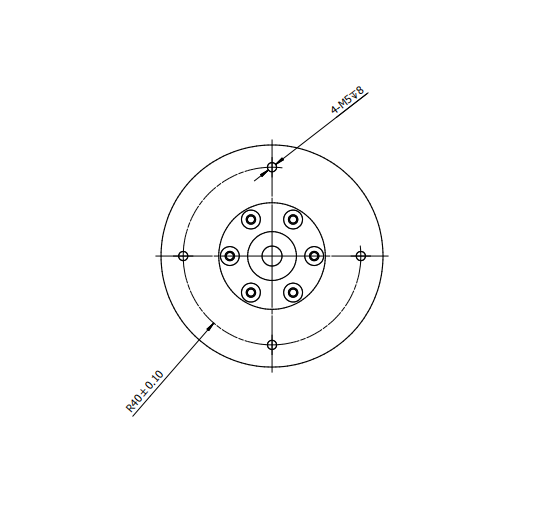

Drawing :
