HNS-2K-150
HNS-2K-150

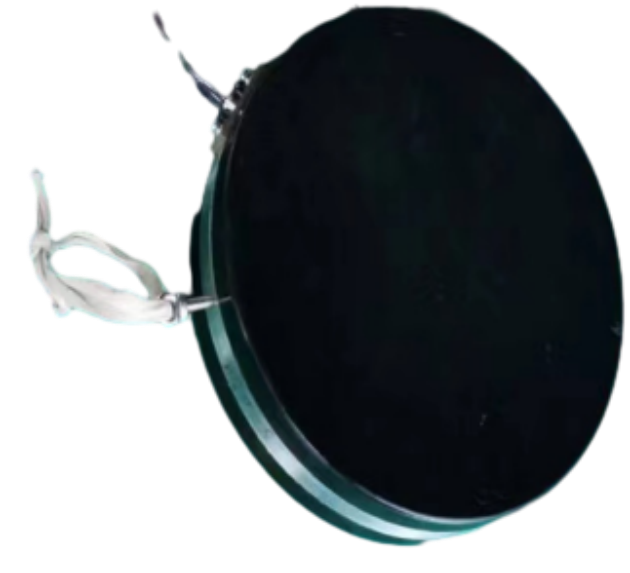

2Khz Low Frequency Sound Source Acoustic Transducer for Fish Deterrent
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.
Specification:
low frequency sound source HNS-2K-150 | ||
Name | 2K underwater acoustic transducer |
|
Model | HNS-2K-150 | |
Resonant frequency | 1.85K | |
Max Voltage
| 800V | |
Voltage Response | 131dB | |
Sound Source Level (SL) | 190dB | |
Depth | 155M |
|
Working Temperature
| -40～120℃ | |
Material | stainless steel 316 | |

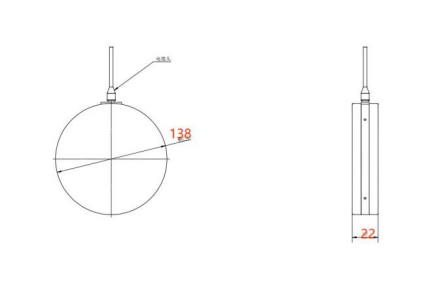

Size | Φ138mm×22mm | |
Cable | Standard length is 5 meters,Cable length can be customized according to customer requirements | |
At this size, the resonant frequency of the transducer is around 1.85kHz, and the performance is as follows:

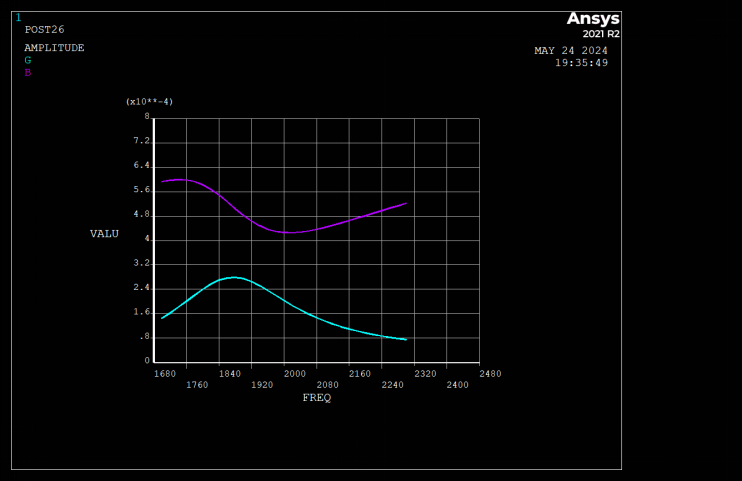

Figure (1) conductance curve of Transducer

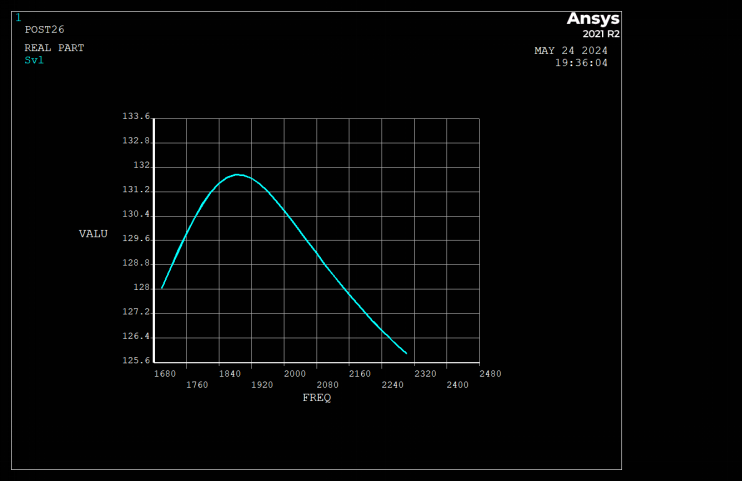

Figure (2) response curve of Transducer
