DPFS6KⅠ
DPFS6KⅠ

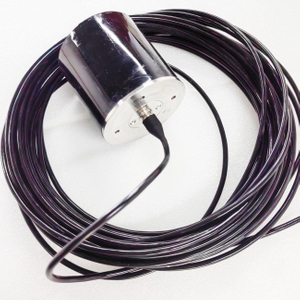

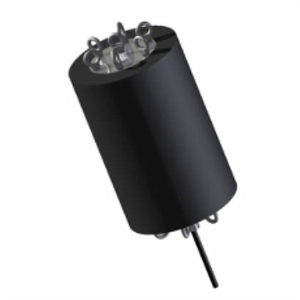

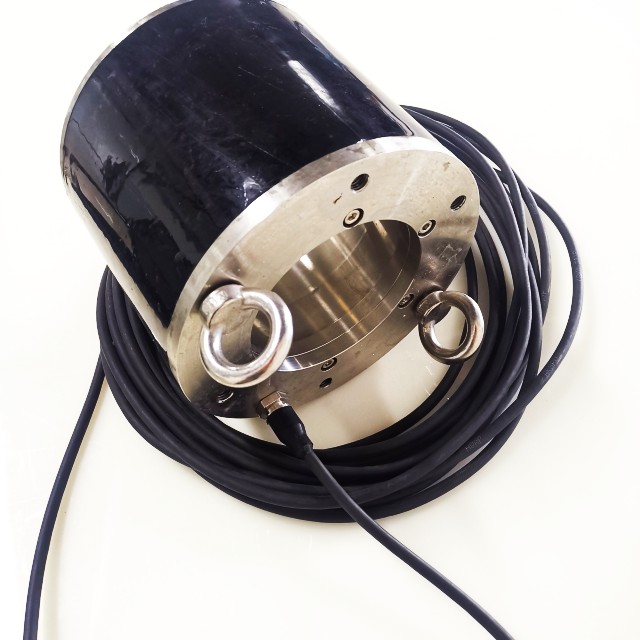

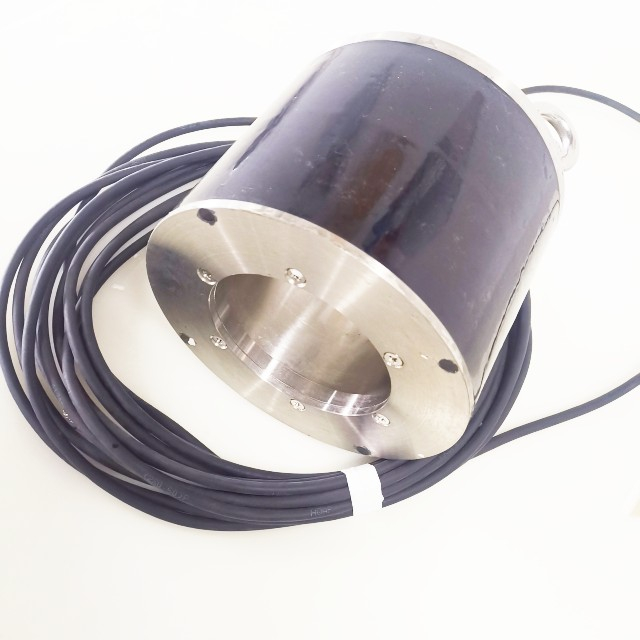

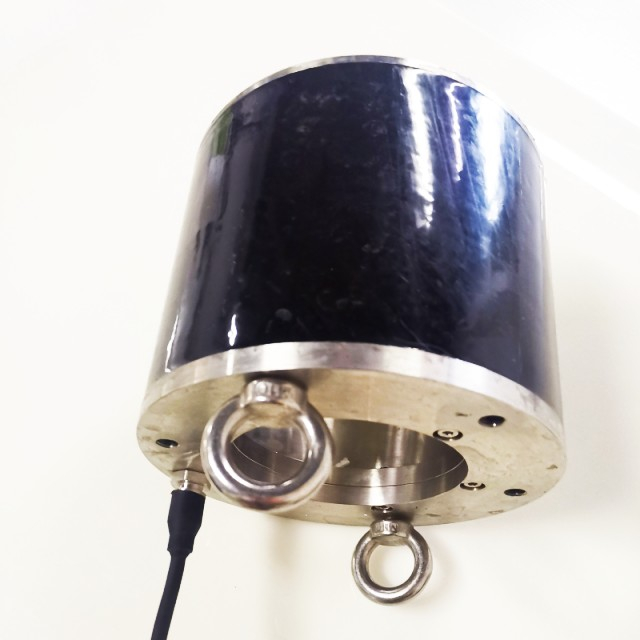

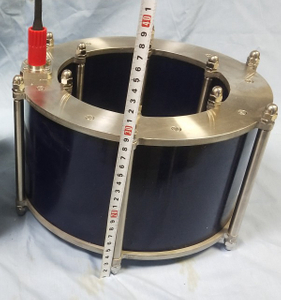

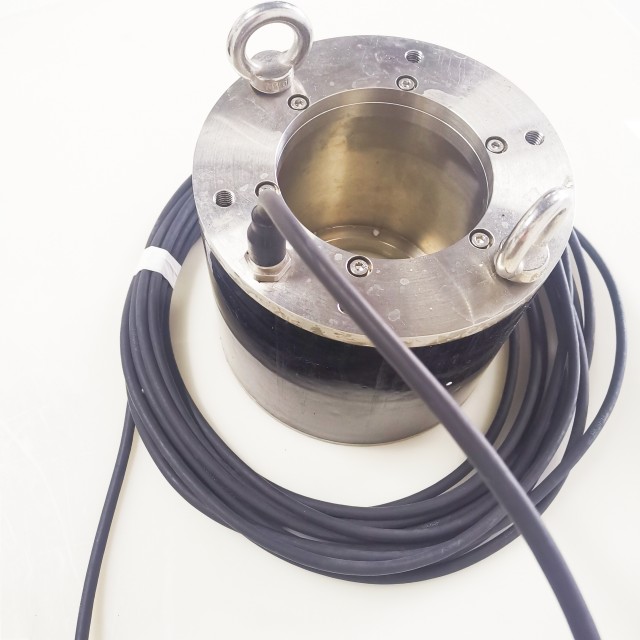

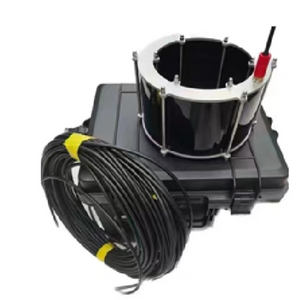

6Khz Low Frequency Transmitting Transducer Overflow Ring Transducer for Marine Detection
We independently developed acoustic transducer products cover a full range of hydrophones, transmitting transducers, transceiver transducers, sonar array transducers and ultrasonic transducers, covering overflow rings, flextensional and curved discs. and composite materials, etc., achieving full coverage from low to medium frequency to high frequency, from shallow water to 10,000-meter water depth, and can be widely used for listening and homing detection, communication networking, positioning and navigation, seabed surveying and mapping, forward-looking side scanning, industrial and medical ultrasound and other types of acoustic equipment.

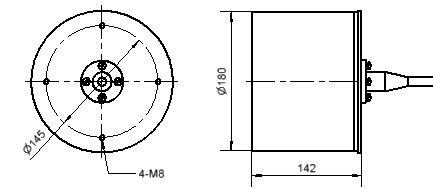

Specification:
Model | DPFS6KⅠ |
|
Resonant frequency | 6kHz | |
Working Band | 3.5kHz~15kHz | |
Transmitting voltage response | SvL≥140dB | |
Static Capacitance | 320000pF | |
Directivity | Horizontal omnidirectional | |
Sound Source Level (SL) | SL≥190dB | |
Working depth | 300m | |
Cable Specification | Φ11.2mm Double core shielded cable | |
Weight | 13kg | |
| ||
Test Report
Working frequency band: 4kHz～12kHz.
Voltage emission response: Measure the emission response in the working frequency band, where 6kHz is not less than 144dB.
Receiving sensitivity: the receiving sensitivity in the working frequency band is not less than -205dB.
Horizontal directivity: horizontal omnidirectional at 6kHz.
Hydrostatic pressure: 4MPa.
Transmit voltage response (dB):
f/kHz | 1# | 2# |
4 | 146.6 | 145.5 |
5 | 147.8 | 148.0 |
6 | 147.6 | 147.2 |
7 | 146.7 | 146.9 |
8 | 145.6 | 145.6 |
9 | 144.6 | 144.1 |
10 | 143.6 | 144.6 |
11 | 142.7 | 143.2 |
12 | 141.8 | 142.0 |
Receiving sensitivity (dB) :
f/kHz | 1# | 2# |
4 | -181.5 | -181.9 |
5 | -181.7 | -182.7 |
6 | -182.6 | -182.7 |
7 | -184.5 | -185.0 |
8 | -187.0 | -186.5 |
9 | -189.7 | -188.7 |
10 | -192.1 | -191.7 |
11 | -194.4 | -195.3 |
12 | -196.5 | -196.7 |
Directivity:
Hydrostatic pressure test:
After the transducer has undergone 4MPa/1h, 0MPa/0.25h, 4MPa/1h, 0MPa/0.25h hydrostatic pressure test, the insulation resistance between the positive and negative electrodes of the transducer is greater than 500MΩ.
